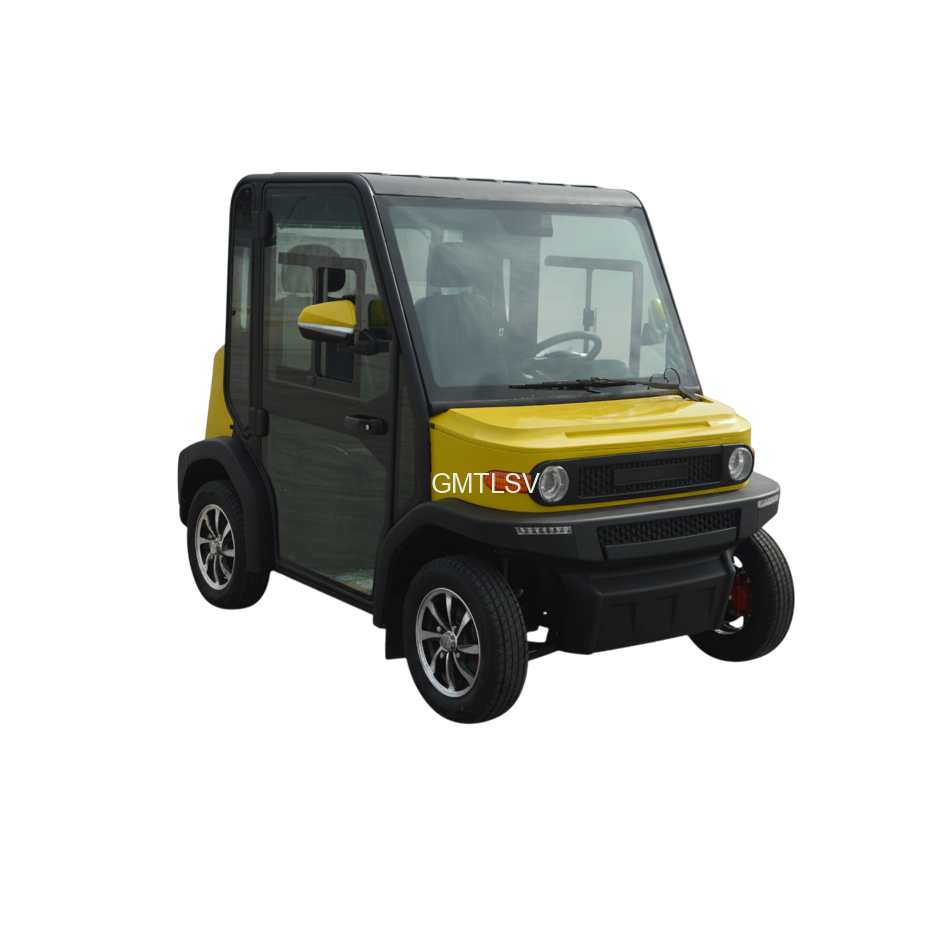

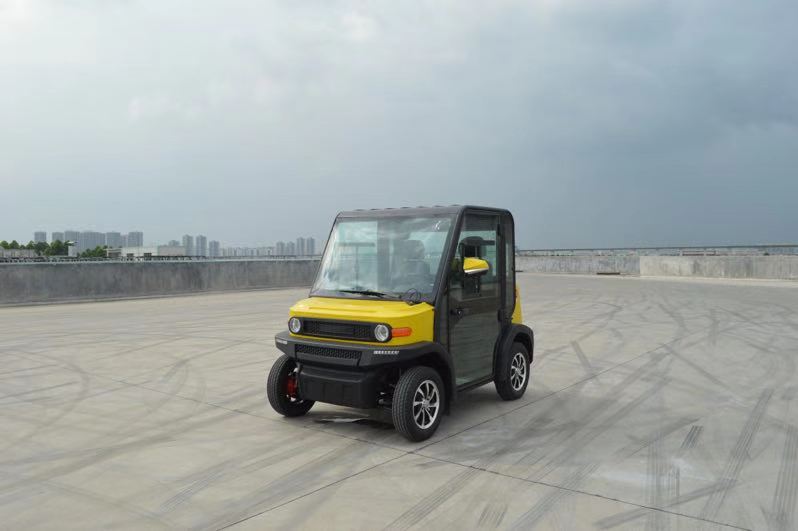

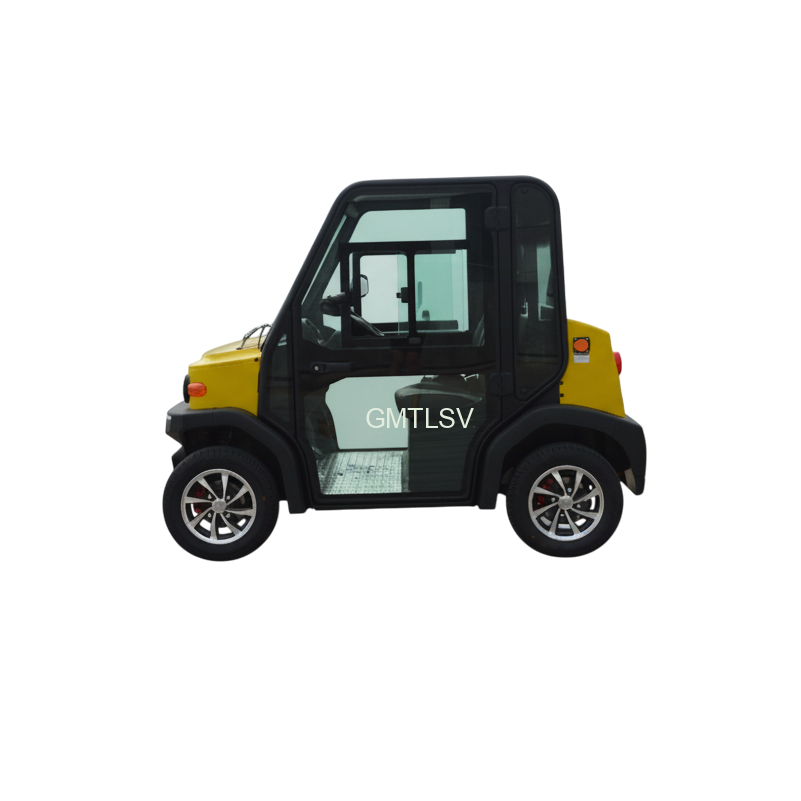

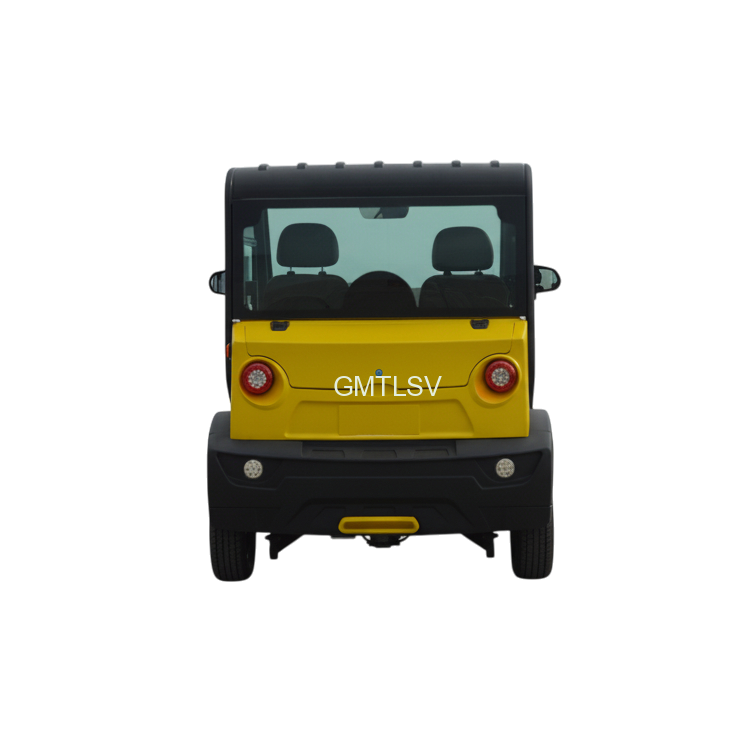

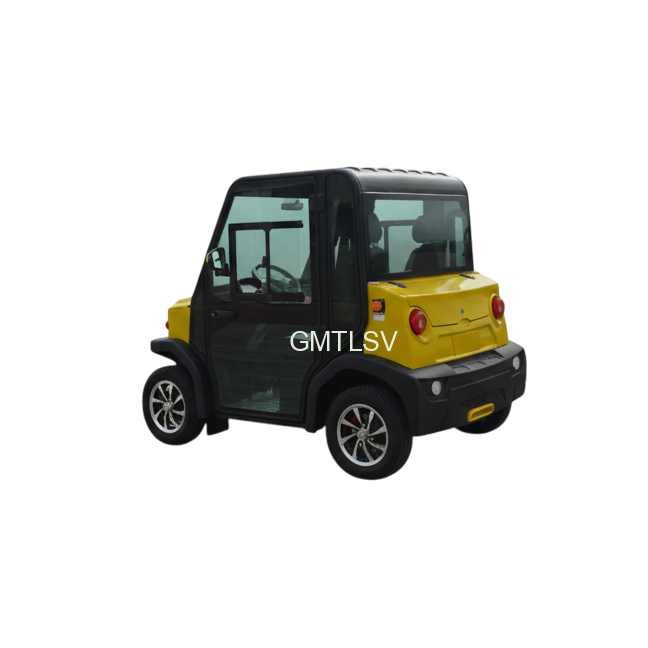

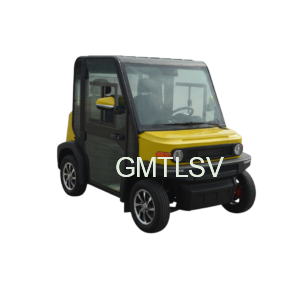

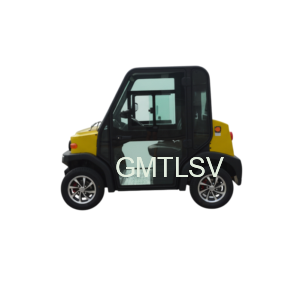

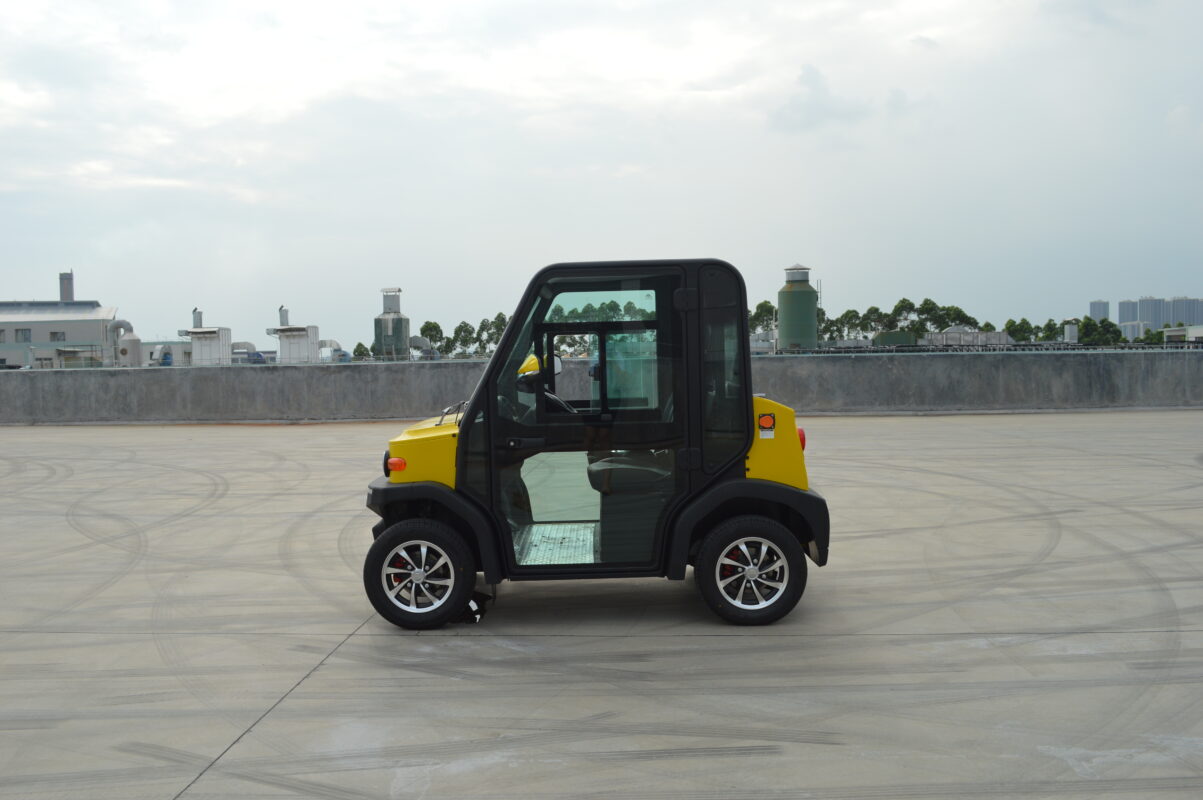

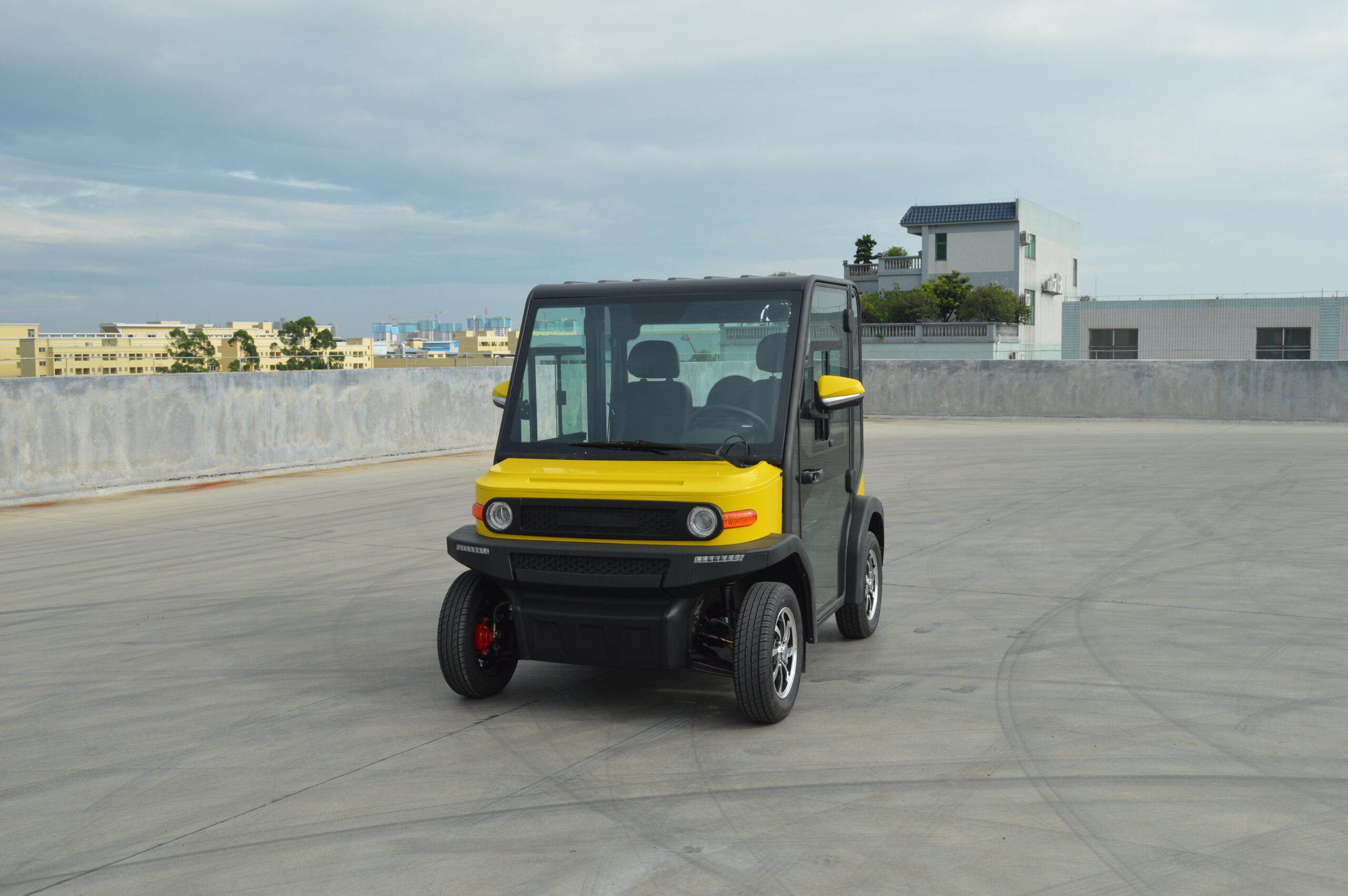

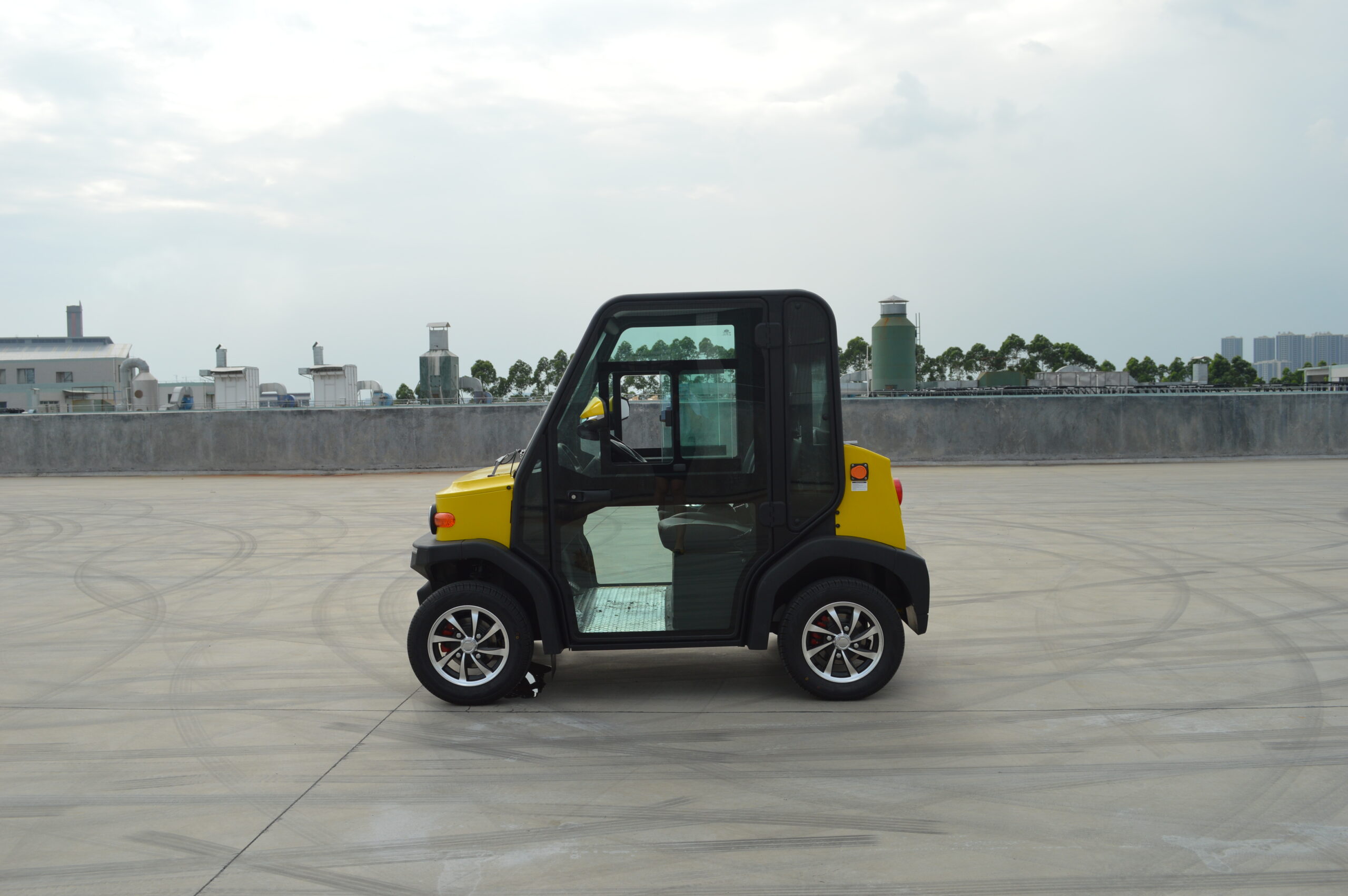

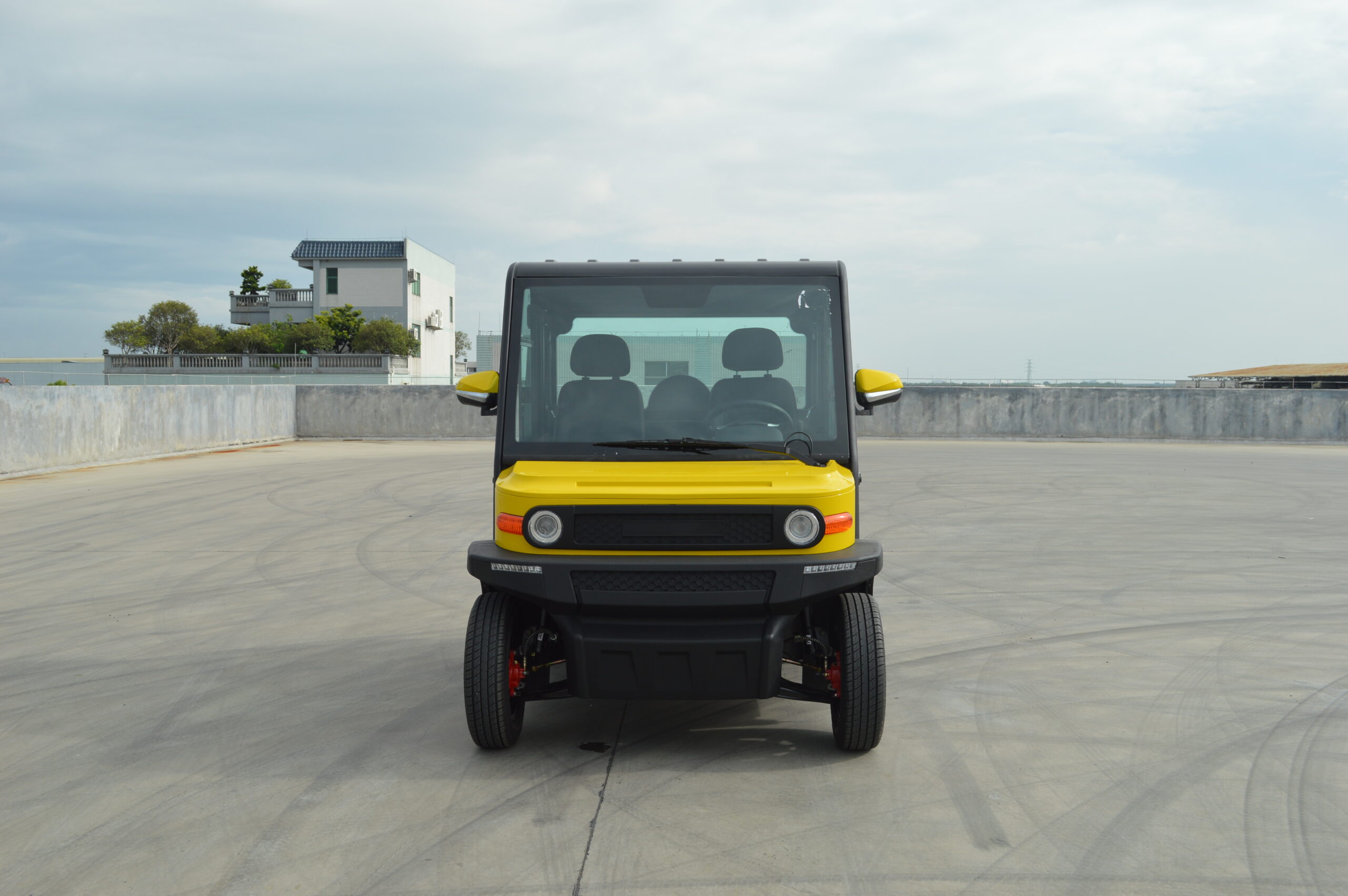

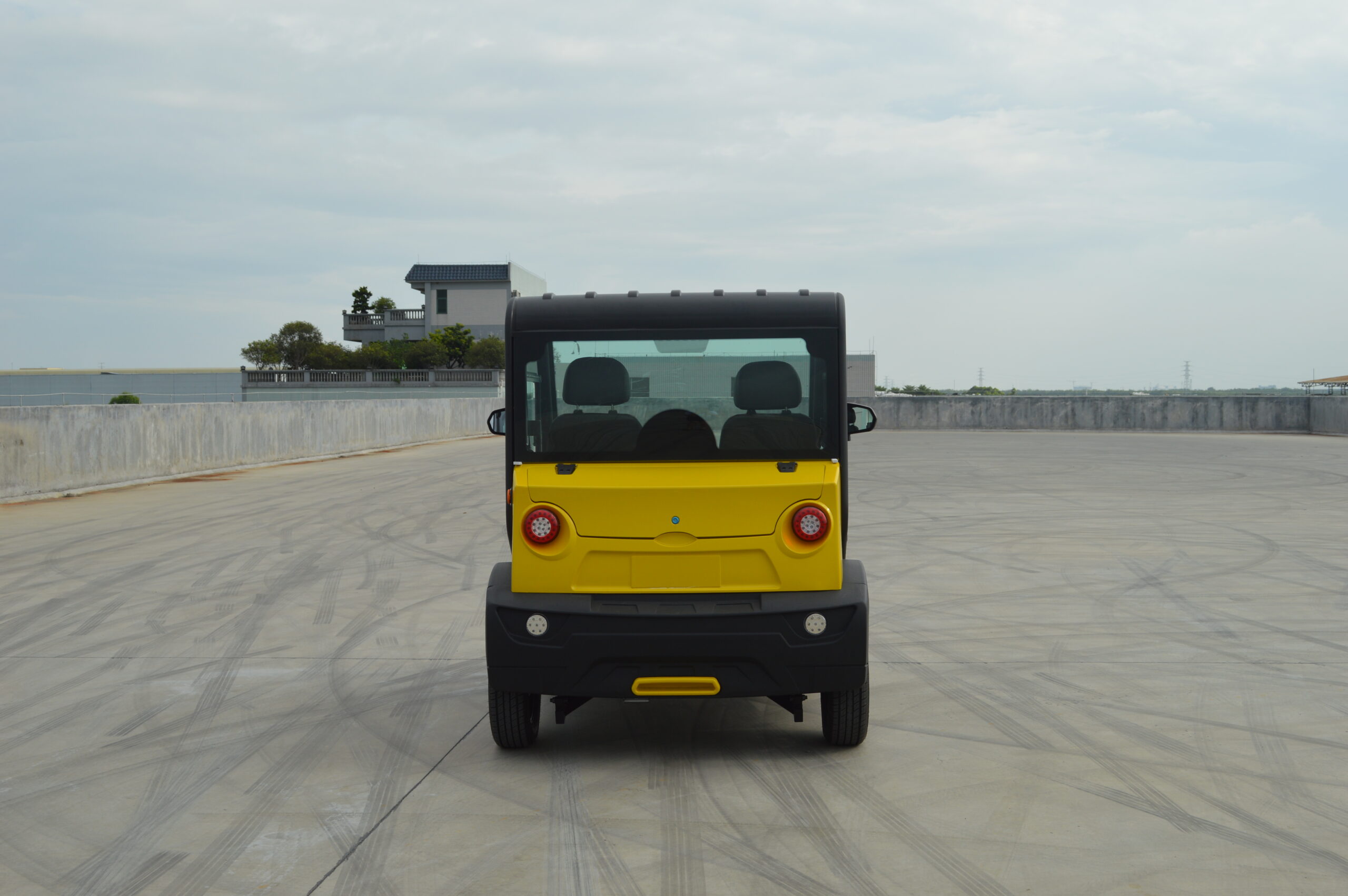

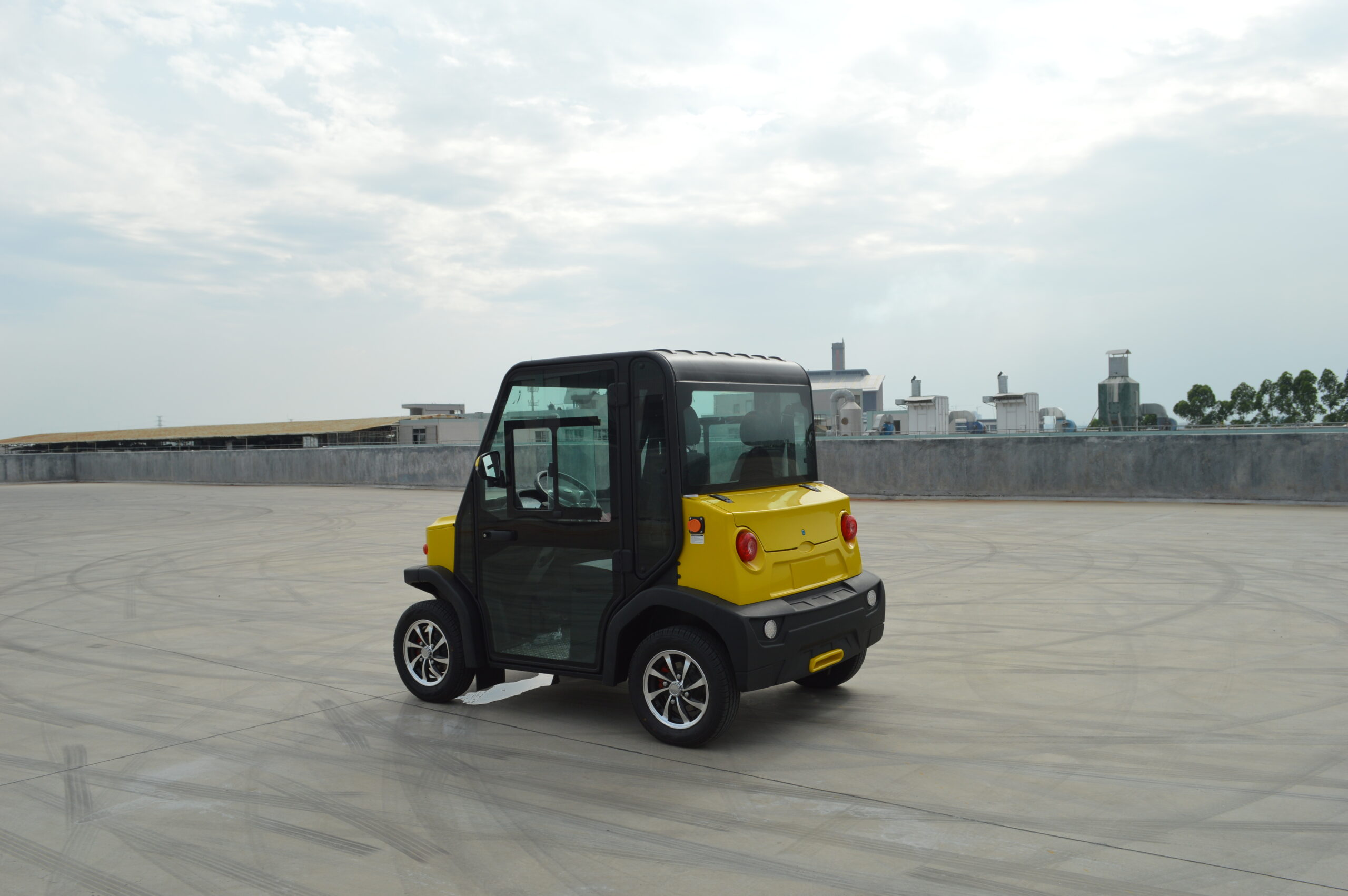

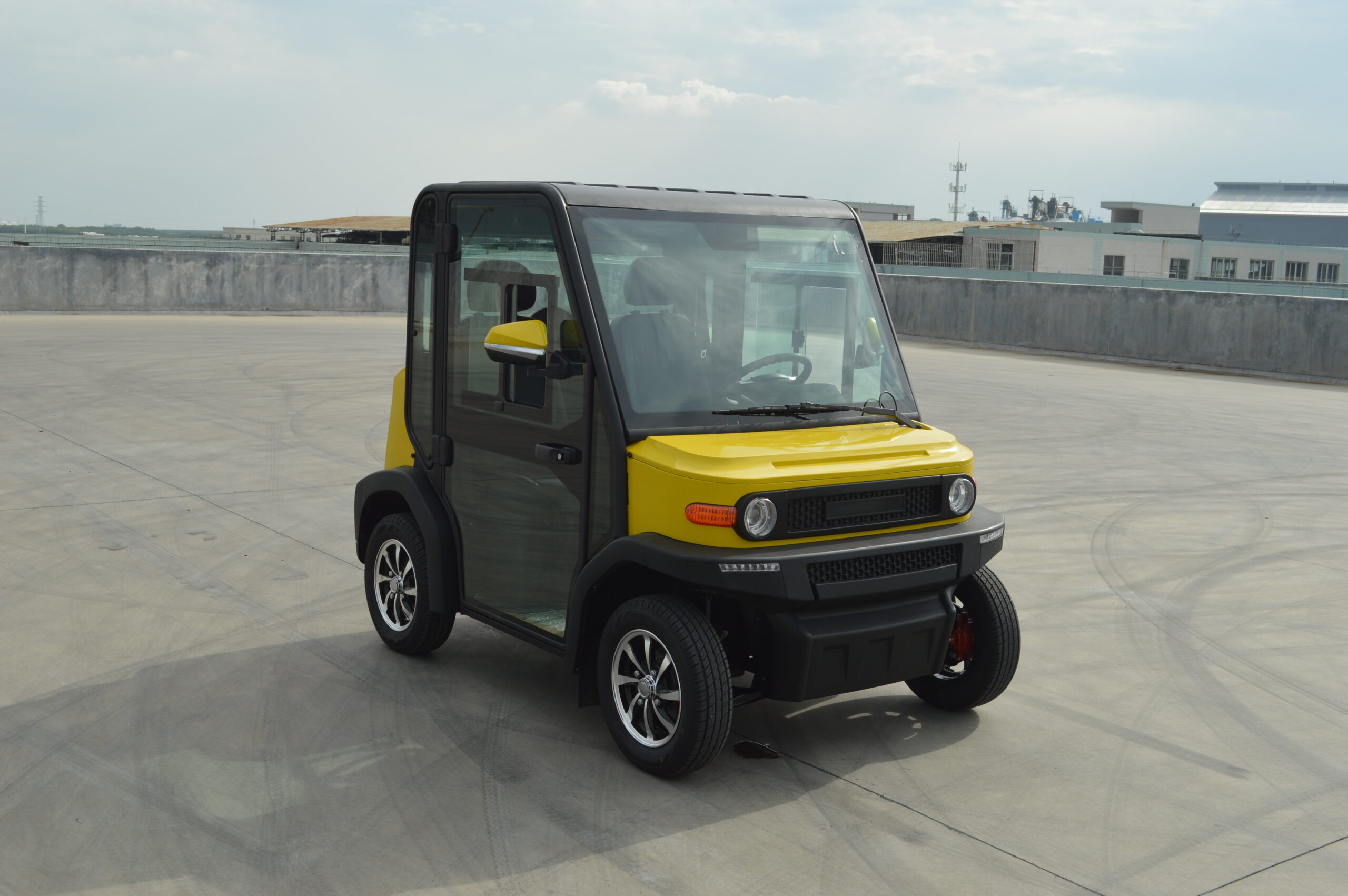

2 seats electric mobility car personal low speed vehicle with L6e homologation, street legal driving for Europe market.
| Description | Specification | ||
| Whole car system | 60V | ||
| Motor | 40V/5KW AC motor | ||
| Controller | Toyota AC controller 60V | ||
| Battery | 5*12V/150AH | ||
| Charger | Onboard charger | ||
| Passenger | 2 passenger | ||
| Speed | 20—45KM/H | ||
| Travel distance(full load） | 130Km（air conditioner off) 80km（air conditioner on) |
||
| Gradeability(full load） | 18% | ||
| Size(LWH） | 2165*1365*1660mm | ||
| Wheel base | 1500mm | ||
| Front tread/Rear tread | 1140/1175mm | ||
| Chassis | 50 * 30 * 3t square with high strength carbon steel | ||
| Brake | Travel brake | Four wheel hydraulic disc brakes,front wheel and rear wheel independent | |
| Parking brake | brake by hand | ||
| Suspension | Front suspension | McPherson independent front suspension | |
| Rear suspension | Drag arm type semi-independent suspension | ||
| Driving type | Post-drive overall axle | ||
| Tyre | 155/65 R13 vacuum tyre 13 inch rim | ||
| Steering | Two-way pinion and rack steering system, automatic clearance compensation function | ||
| Gears | Forward/Neutral/Backward，Fast&Slow | ||
| Rear view mirror | Folding rearview mirror,left and right four side direction adjustment | ||
| Windshield for gate and side door | stalinite | ||
| Safety belt | 3 point | ||
| Entertainment function | Multimedia player, built-in antenna reception | ||
| Lighting | Front head light | Including position, distance/near light, lens, daytime driving light | |
| Rear light | LED，include reverse, turn signal, brake light, turn signal | ||
| number-plate light | save place for installation on rear body cover | ||
| Steering wheel locks guard | After key taken off,steering is locked can not turn | ||
| Emergency stop power protection | power off button make driver easily operated | ||
| Hand brake alarm | Buzzer reminder | ||
| Combination switch | Including steering,overtaking,wiper double speed control | ||
| 12V power port | installed | ||
| Number-plate | save place for installation on rear body cover | ||
| Air conditioner | Onboard air conditioner refrigeration 2000W、heating800W |
||
| Front windshield | Laminated glass | ||
| Front wiper | Double speed wiper contains cleaning glass function | ||
| Rear window | Stalinite rear window | ||
| Roof | Plastic | ||
| Roof supporter | High strength “8” type carbon steel pipe | ||
| instrument | combination instrument | ||
| Floor | Leather anti-skid floor | ||
| Seat | Imitation leather seat, front and rear adjustable | ||
