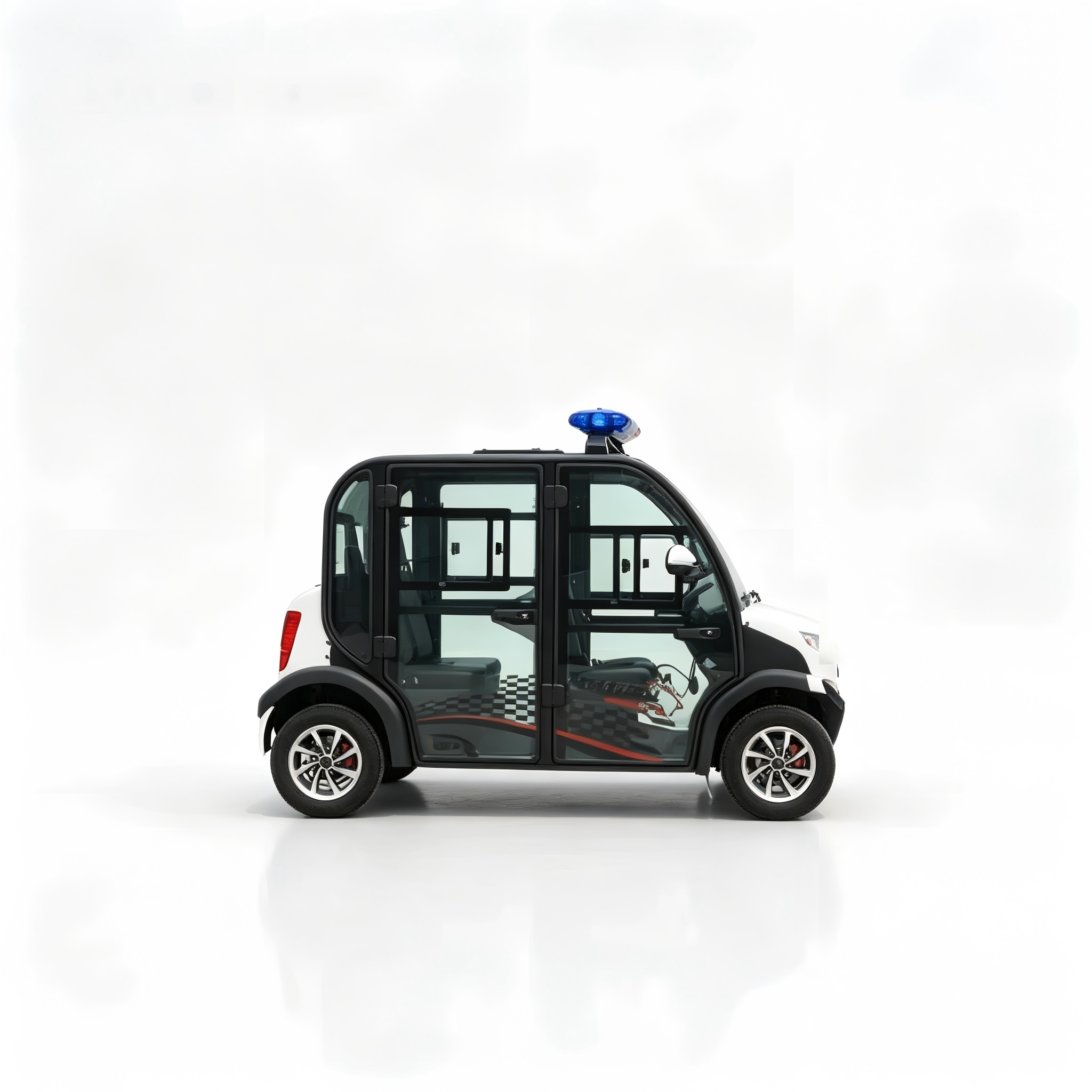

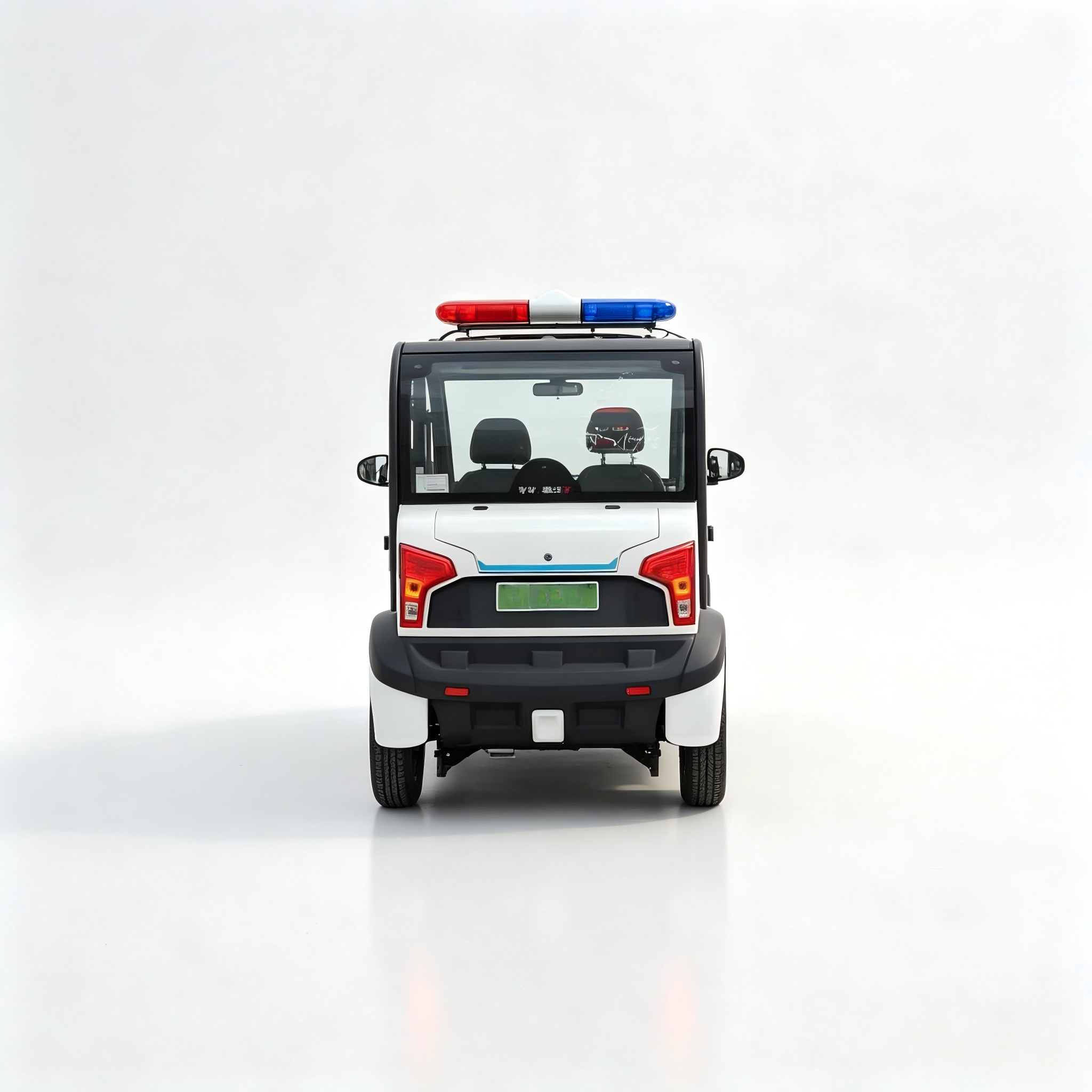

4-Seater Enclosed Electric Golf Cart with Doors, Air Conditioning & Warning Lights for Security Patrol, Resort, Airport, Community & Industrial Use
- Motor 4KW 60V AC type.
- Battery: 60V, 150Ah Lead acid maintenance free battery,80-100km of 1 full time charge, charge time 6-8 hours.
- Suspension:Helical spring with hydraulic shock absorber
- Brake system:4-Wheel Hydraulic Disc,hand park brake.
- Wheels:12 inch tire（diameter 505mm）with steel rim.
- Steering system:Dual automotive-style strut and self-adjust rack-and pinion steering
- Air-conditioner: 60V/800W with heating and cooling function
- Electric accelerator.

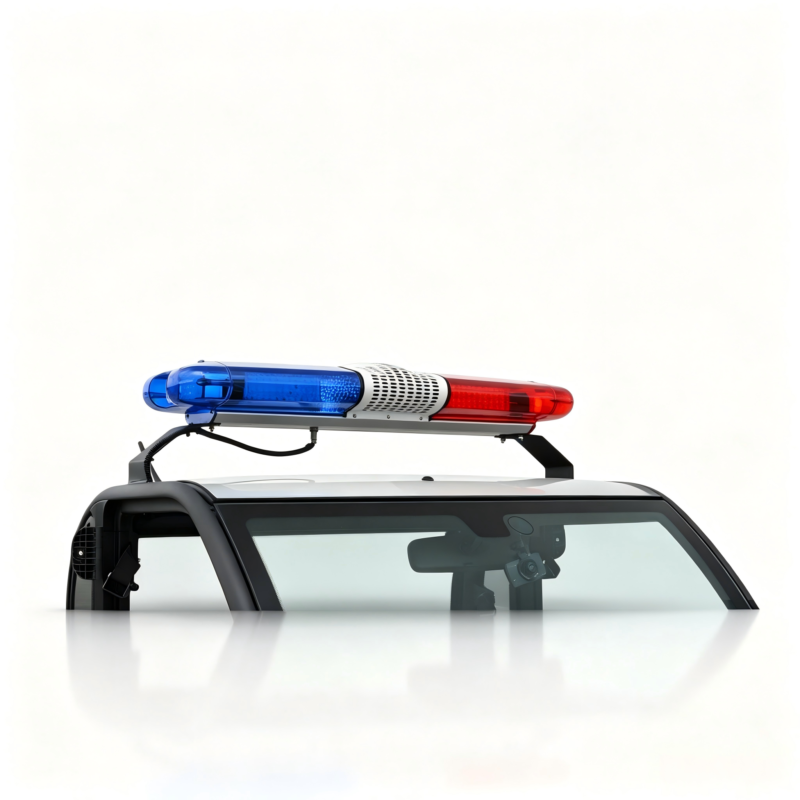

- Lights system:Front light、turning light,reversing light、braking light、 buzzer、Emergency Light .
- Rear axle :12.49:1 viarable speed transaxle
- Windshield :Laminated glass &Full View Skylight

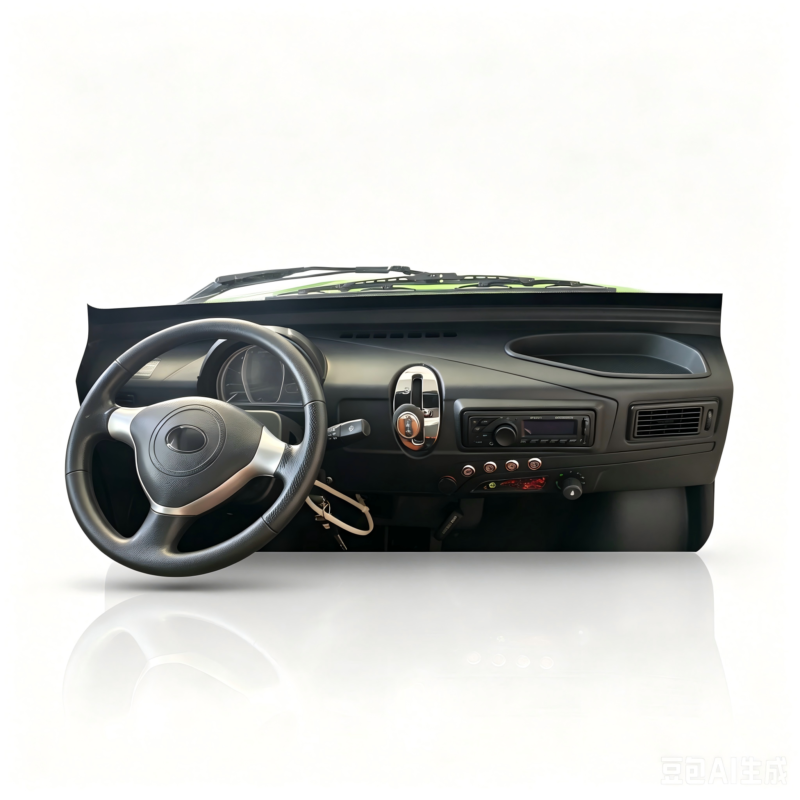

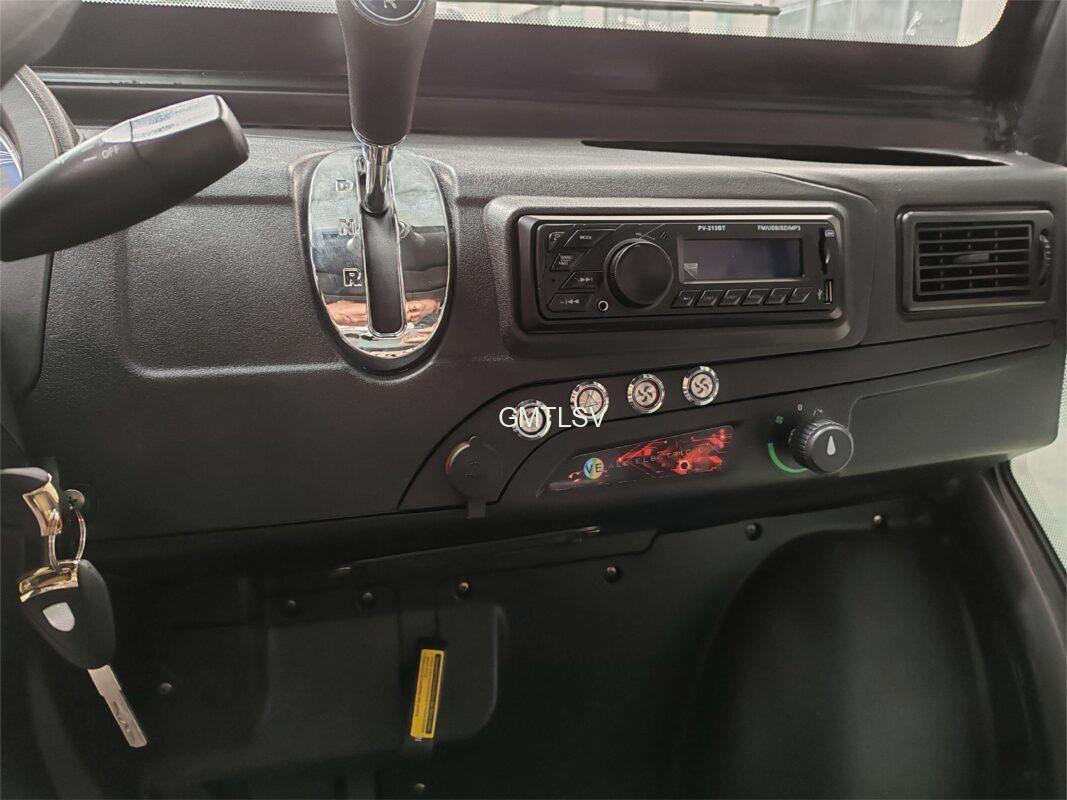

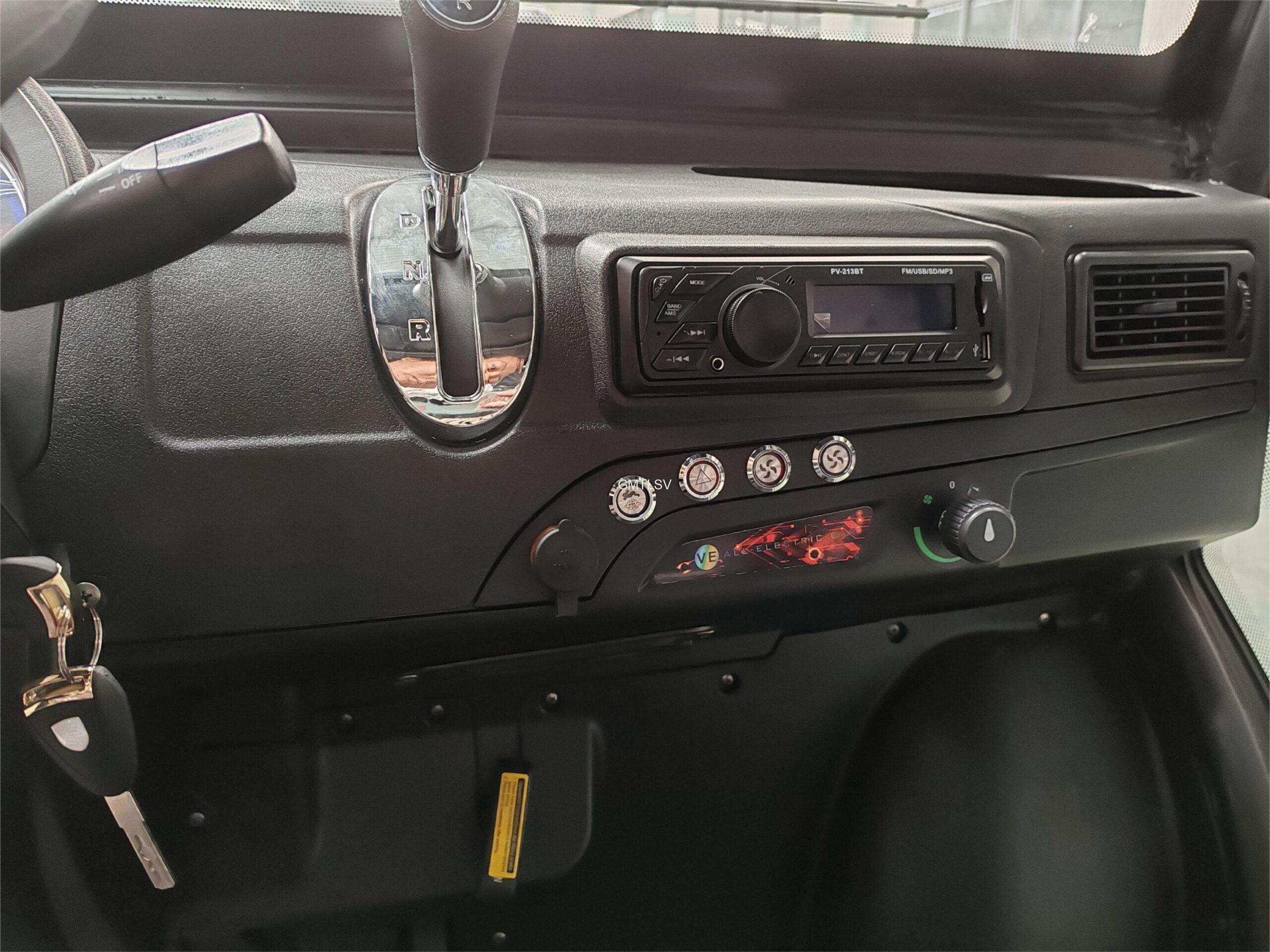

- Dashboard:Key switch、combination switch,DVD&MP3 player、wipper,etc
- Accessories: Lights, horn, reverse alarm, speedometer, side mirrors,radio and speakers, seats belts. Rear storage cabin.
Vehicle size:(L x W x H)2750*1280*1610mm
Load quantity in container:2 units /20’GP ; 4 unit/ 40’HQ
Weight:685kgs
Min Ground Clearance:120mm
Min turning radius:4.8m
Brake distance:4m
Max forward speed: 20kmh and 45kmh,high and low speed .
Climbing ability:20%
Hitch Towing Rating:500kgs
Carrying capacity:340kgs
Colors: to be customized.
Doors choices: full transparent glass doors or lower half black metal doors.
