Vehicle Configuration
| Motor | 48V 5000W AC induction |
| Lithium Battery | 51.2V/150AH |
| Min Turning Radius | ≦6m |
| Braking Distance | ≦5m |
| Controller | 48V 400A |
| Charger | 48V 20A,input can be 110V/220V/120V/230V |
| Body Materials | plastic bodies |
| Chassis | Q235 high-strength sheet metal welded frame, electrophoresis coating + anti-rust spraying. |
| Lights | LED front combination lights (low beam, high beam, turn signal, daytime running light) LED rear tail lights (brake light, running light, turn signal); snail horn, reverse buzzer. |
| Max Speed (km/h) | 25 ~ 40 |
| Gradeability (%) | 30 |
| Max Mileage (Normal Road) | 80-100km |

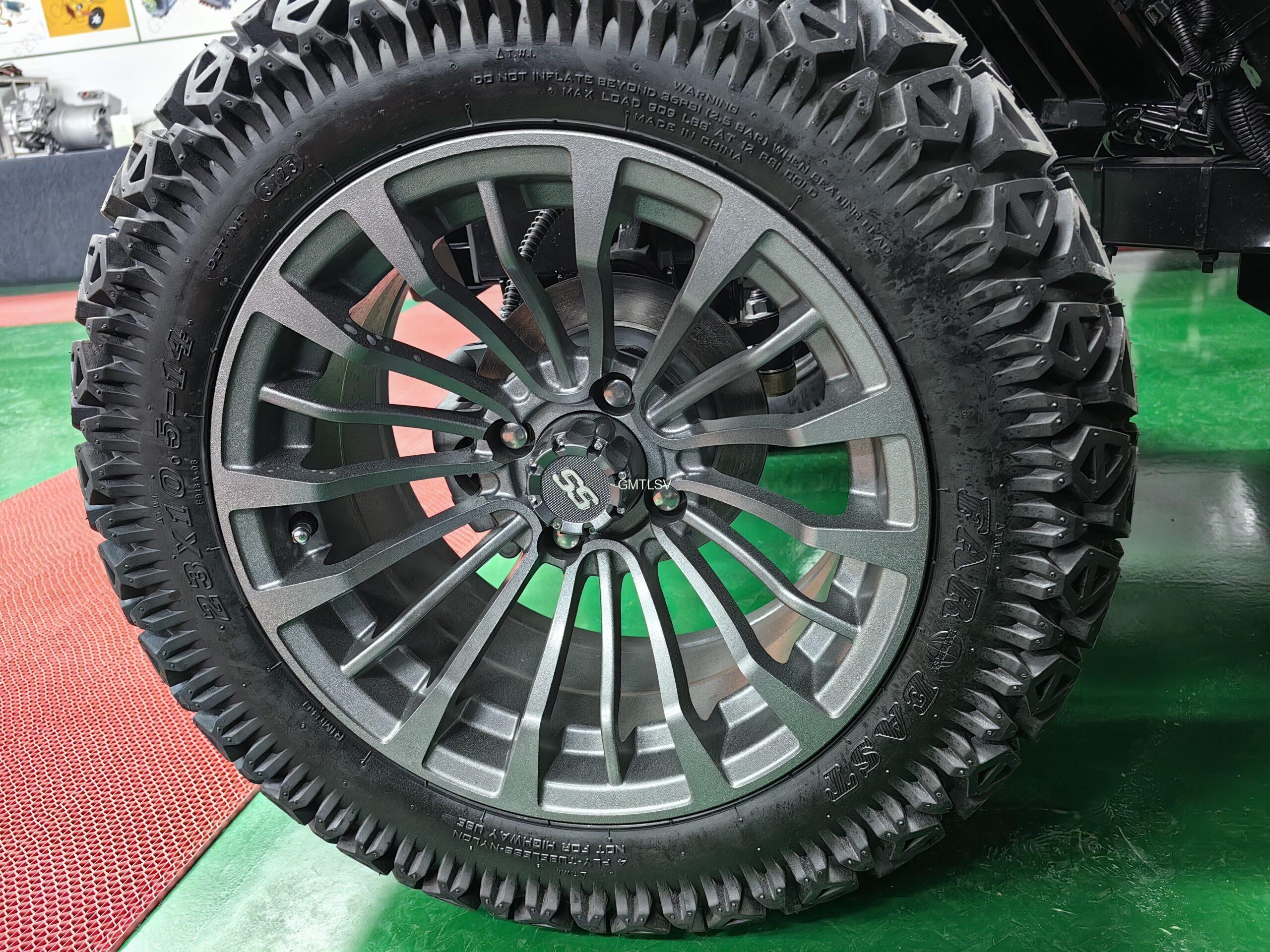

| Tire | 14 inch off road all terrain wheels |
| Suspension | Double A arm independent |

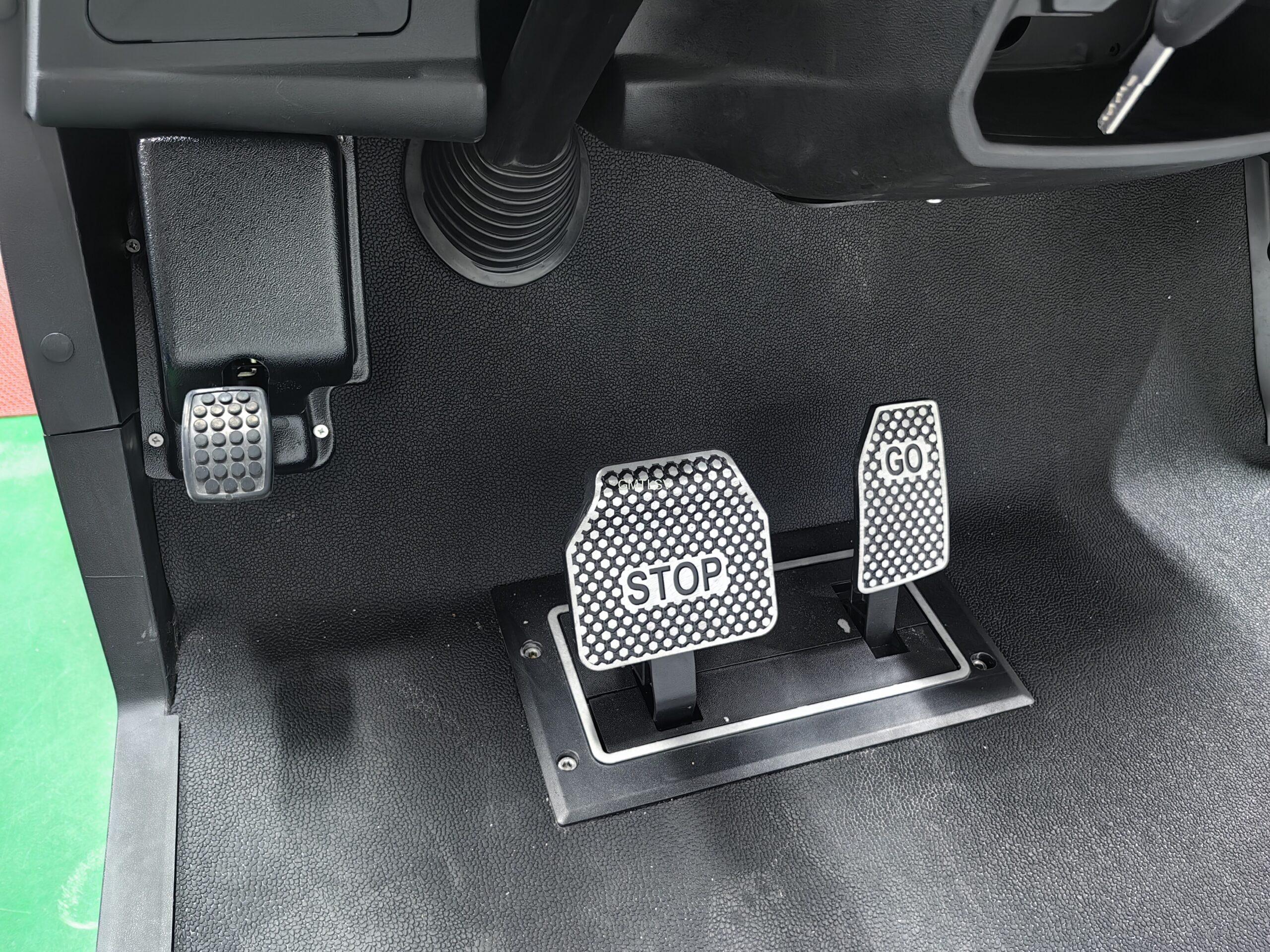

| Brake | Front hydraulic disc rear drum brake with park brake |
| Windshield | Folded with DOT certification |
| Steering System | Bidirectional rack-and-pinion steering system with automatic clearance compensation function. |

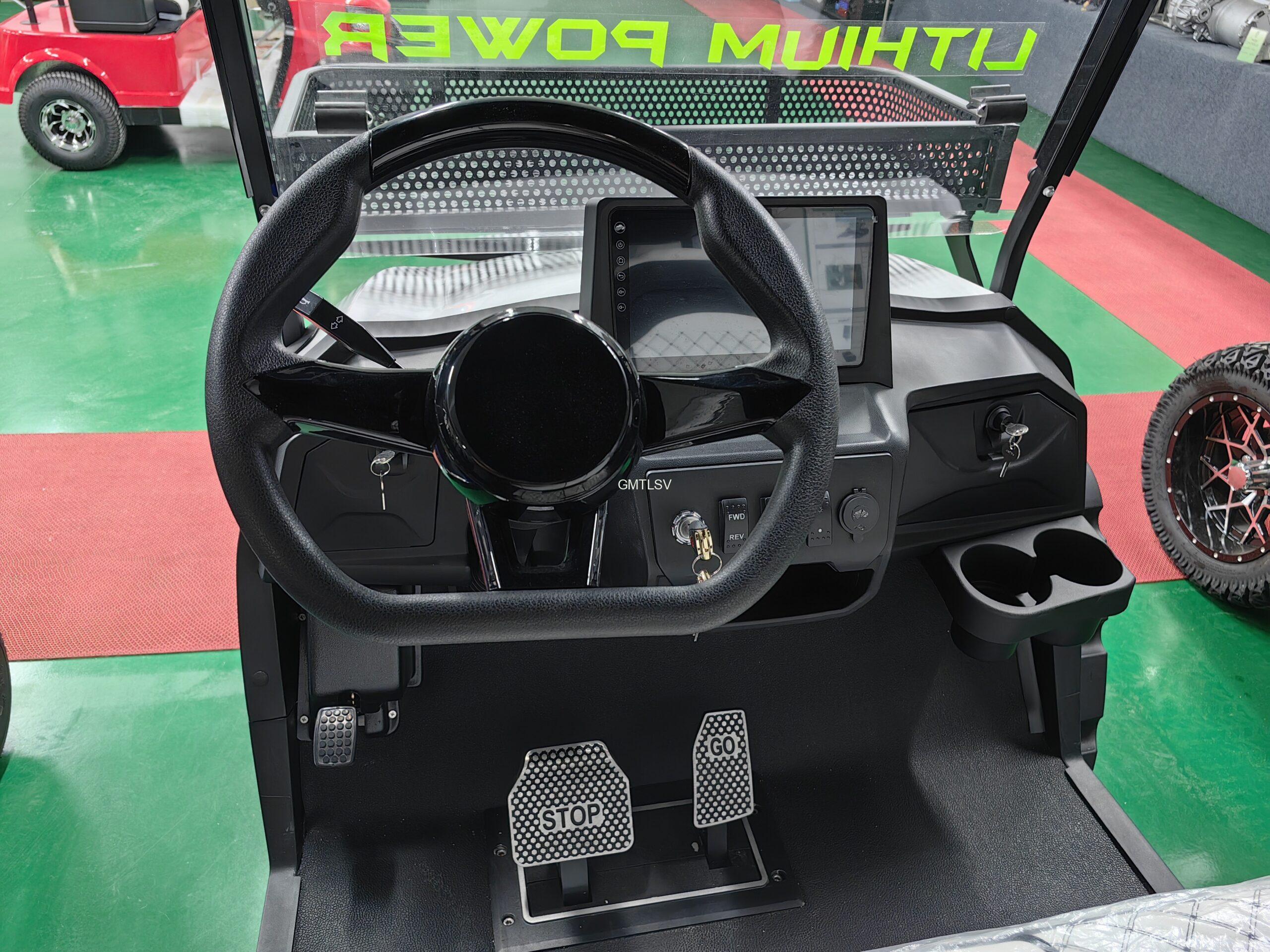

| Display Meter | IP66 Water-Proof 10 inch LCD Multimedia Combo Instrument Panel with Vehicle Fault Detection Function |
