48V 5KW Low-Speed Electric Fire Fighting Vehicle | Electric Fire Patrol Truck for Campuses, Resorts & Industrial Parks

48V 5KW low-speed electric fire fighting vehicle with portable fire pump, firefighting tool cabinet and storage compartment. Ideal for campuses, factories, industrial parks, resorts and property management. OEM & ODM available.

Share:

Vehicle Configuration

Passenger capacity2 seats
Max.Speed30km/h
Battery spec8*6V/170Ah Lead-acid Batteries
Endurance Mileage90km
Climbing Ability(loaded)15%
Min.Clearance150mm
Curb Weight1560kg

Cargobox size

3250x1500x1350mm(The capacity of the cargo box can be increased)
Braking Distance≤6.0m

Min.Turning Radius

≤6.5m

Motor5KW  48V
Controller48V controller
Body|Chassis

High-strength composite material body

High-strength steel frame-type longitudinal beam chassis

TiresVacuum radial tires 165/70R13 with steel rims
Brake system

Front ventilated discs and rear drum hydraulic dual circuit brakes + handbrake parking with

vacuum-assisted braking system

SteeringDual push rack and pinion steering + electric power steering system
SeatsPU car special seat, ergonomic

Windshield

Automotive-grade laminated glass

Product Introduction

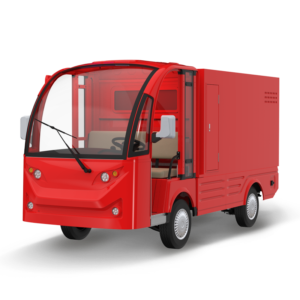

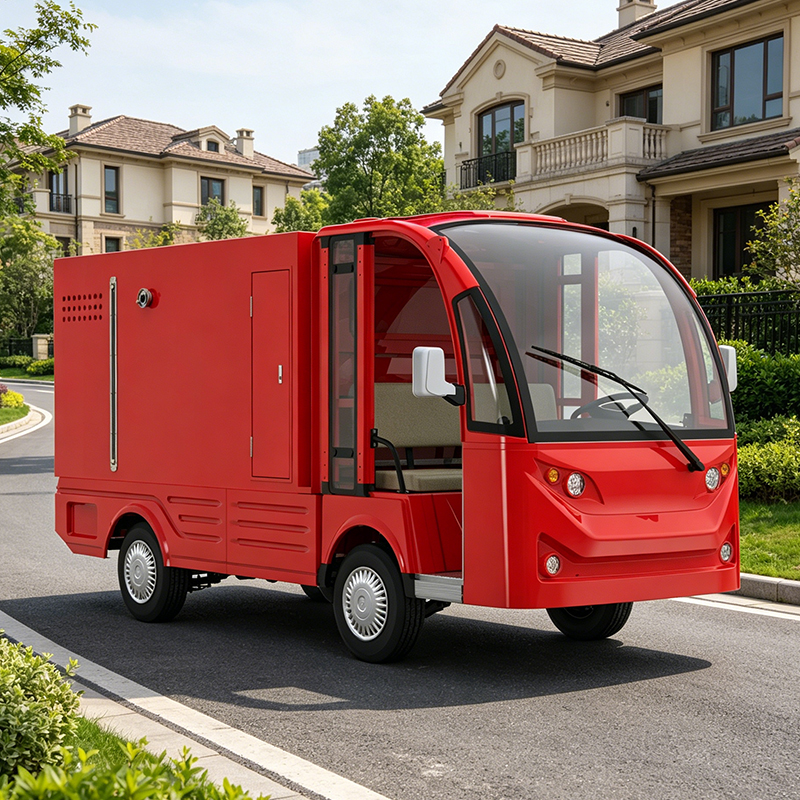

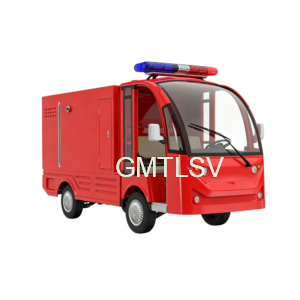

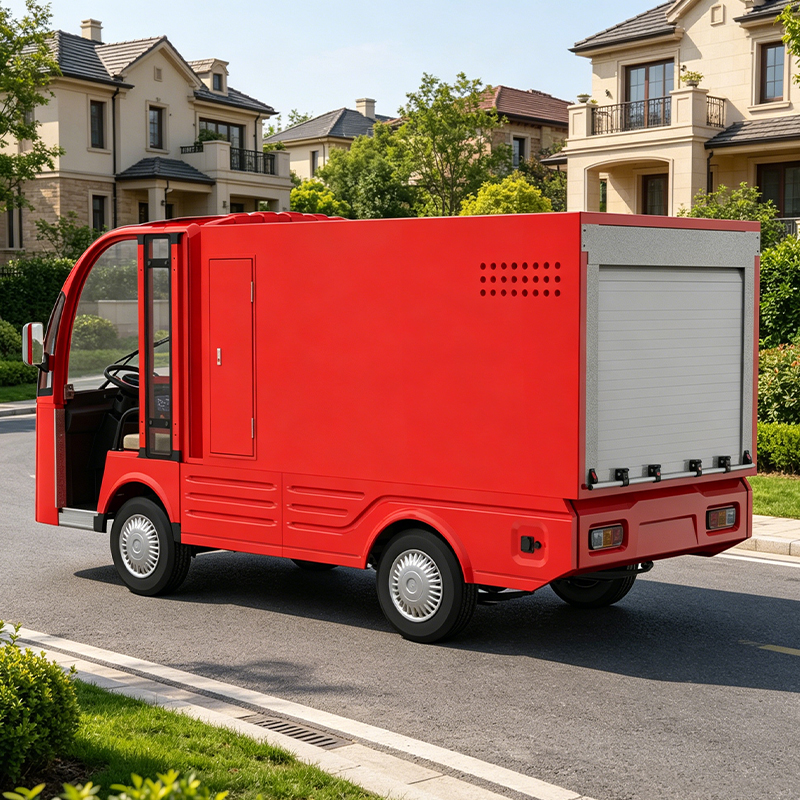

48V 5KW Low-Speed Electric Fire Fighting Vehicle

The GMTLSV Low-Speed Electric Fire Fighting Vehicle is specially designed for rapid fire response and emergency patrol in environments where conventional fire trucks are impractical. Powered by a 48V 5KW AC electric drive system, it delivers quiet, zero-emission operation while providing quick access to narrow roads, pedestrian zones, campuses, factories, resorts, warehouses, and industrial parks.

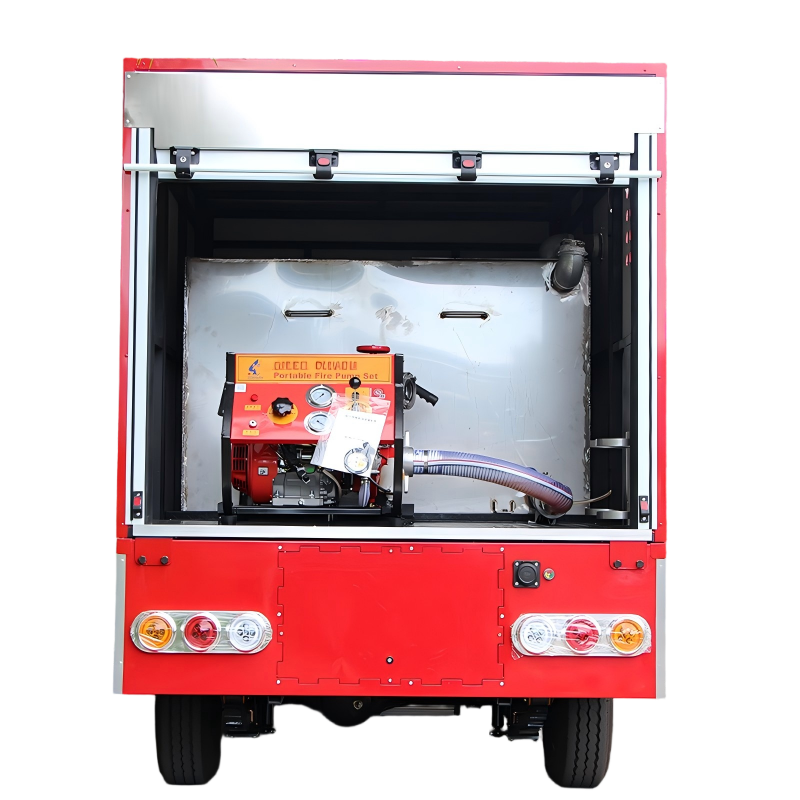

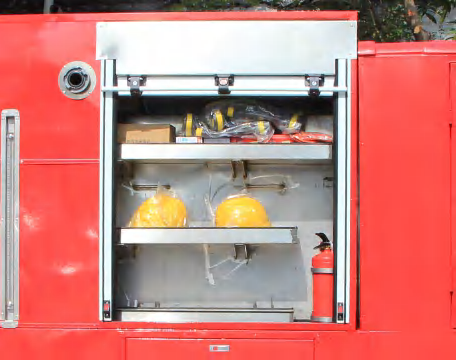

This compact electric fire response vehicle is equipped with a portable fire pump, a standard storage cabinet, and a dedicated firefighting equipment cabinet, allowing operators to carry essential firefighting tools, hoses, extinguishers, protective equipment, and emergency supplies for immediate response.

With its compact size, low operating cost, and excellent maneuverability, the vehicle is ideal for daily fire patrol, emergency response, and safety inspections in private properties and non-road environments.

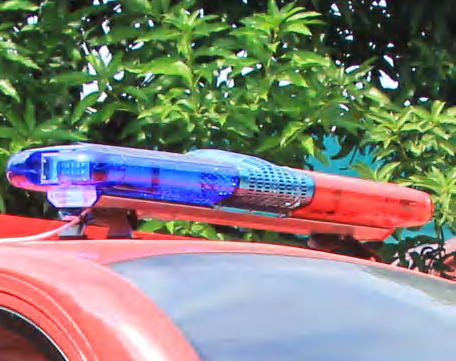

GMTLSV also offers OEM and ODM customization, including different body layouts, water tank options, firefighting equipment configurations, warning lights, sirens, and custom storage solutions to meet customer requirements.


Key Features

  • 48V high-efficiency 5KW AC motor
  • Low-speed vehicle for non-road applications

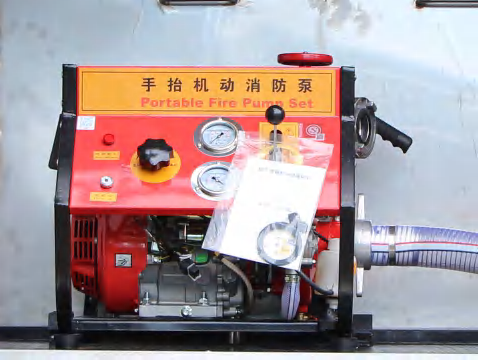

  • Portable gasoline fire pump included

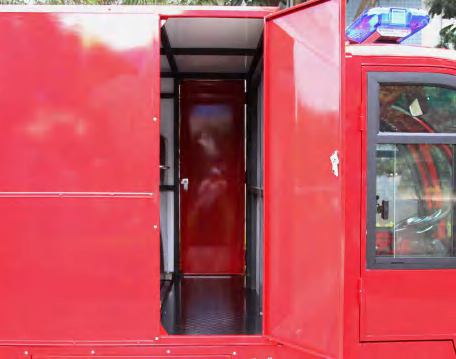

  • Standard storage cabinet
  • Firefighting equipment storage cabinet
  • Compact body for narrow roads
  • Quiet, zero-emission electric drive
  • Low operating and maintenance costs
  • Easy operation and fast deployment
  • OEM & ODM customization available

Ideal Applications

  • Industrial Parks
  • Manufacturing Plants
  • Warehouses
  • Logistics Centers
  • Universities & Campuses
  • Resorts & Hotels
  • Tourist Attractions
  • Property Management
  • Residential Communities
  • Airports
  • Ports
  • Hospitals
  • Large Commercial Complexes
Weight 1560 kg
Dimensions 415 × 150 × 215 cm
