Vehicle Configuration
| Motor | 60V 4KW AC |
| Battery | Maintenance free Gel Battery 60V 120Ah as standard, lithium and sodium battery as optional choice |
| Mileage (on level ground) | 80~100km |
| Max Speed (km/h) | 40 |
| Braking Distance | 6m |
| refrigerated cargo box size | 1000*1200*1050mm |
| Min Turning Radius | 6m |
| Gradeability(%） | 25 |
| Tire | 145/70R12,radial steer wire vacuum tires |
| Brake System | Front: Disc brake / Rear: Hydraulic drum brake |
| Air Conditioner | Standard |
| Suspension | Mcpherson independent single arm suspension |
Product Introduction

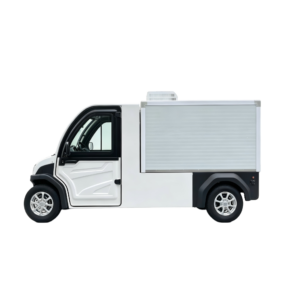

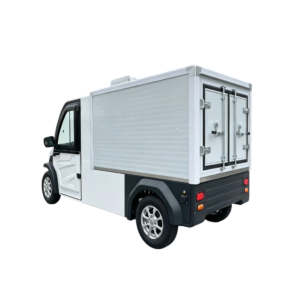

This electric refrigerated LSV truck is designed for urban and short-distance cold-chain transportation. Equipped with a 60V 4KW electric motor, onboard charger, and optional lithium or maintenance-free lead-acid battery, it delivers up to 100km driving range with a top speed of 40km/h. The enclosed cabin can be equipped with doors and air conditioning for enhanced driver comfort. Perfect for transporting vegetables, fruits, dairy products, seafood, and refrigerated meat in resorts, industrial parks, scenic areas, airports, and residential communities.
- Motor: 60V 4KW AC Motor
- Battery: Maintenance-Free Lead Acid / Lithium Battery Optional
- Range: Up to 100 km
- Max Speed: 40 km/h
- Charging Time: 6 Hours
- Charger: On-board Smart Charger
- Refrigeration Box: Temperature Controlled Cold Storage Compartment
- Cabin: Optional Full Enclosed Cabin with Doors & Air Conditioning
- Application: Fresh Produce, Fruits, Vegetables, Meat, Seafood, Dairy Products, Frozen Food, Beverage Delivery
