Vehicle Configuration

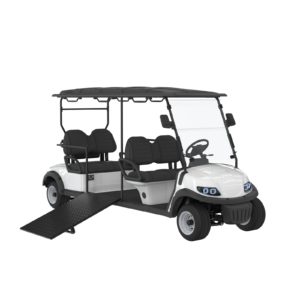

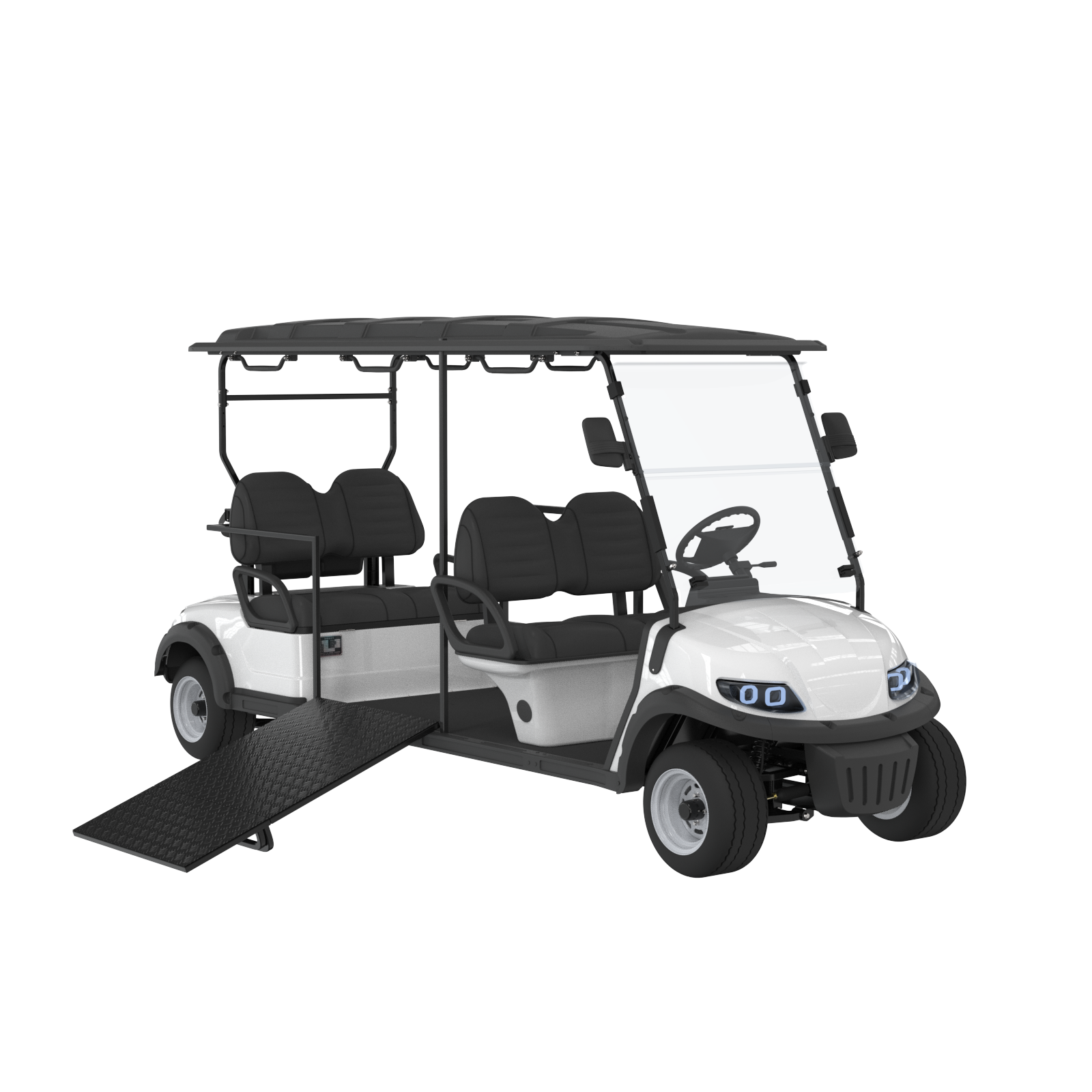

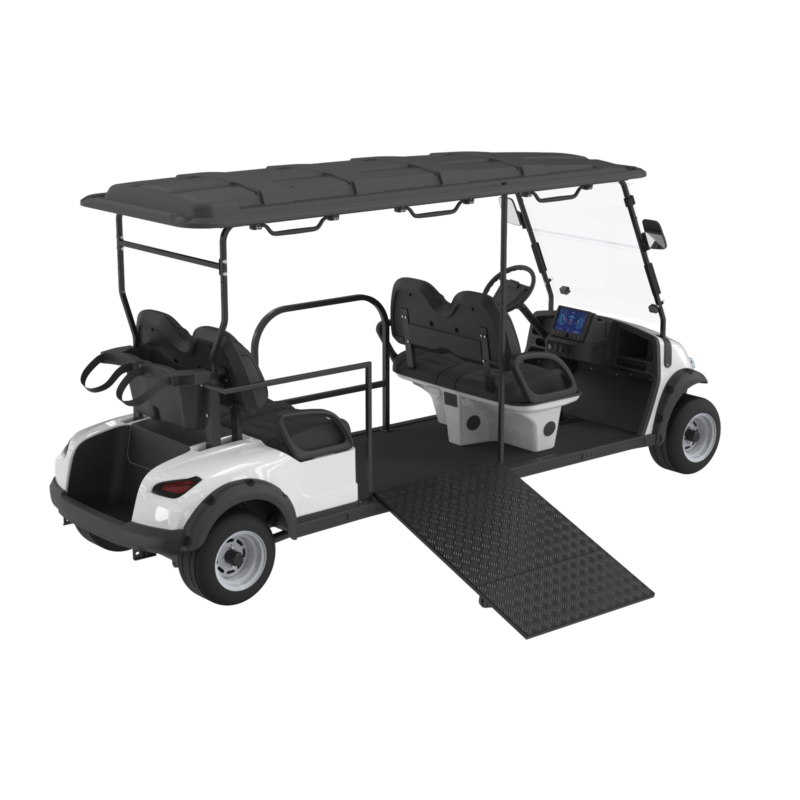

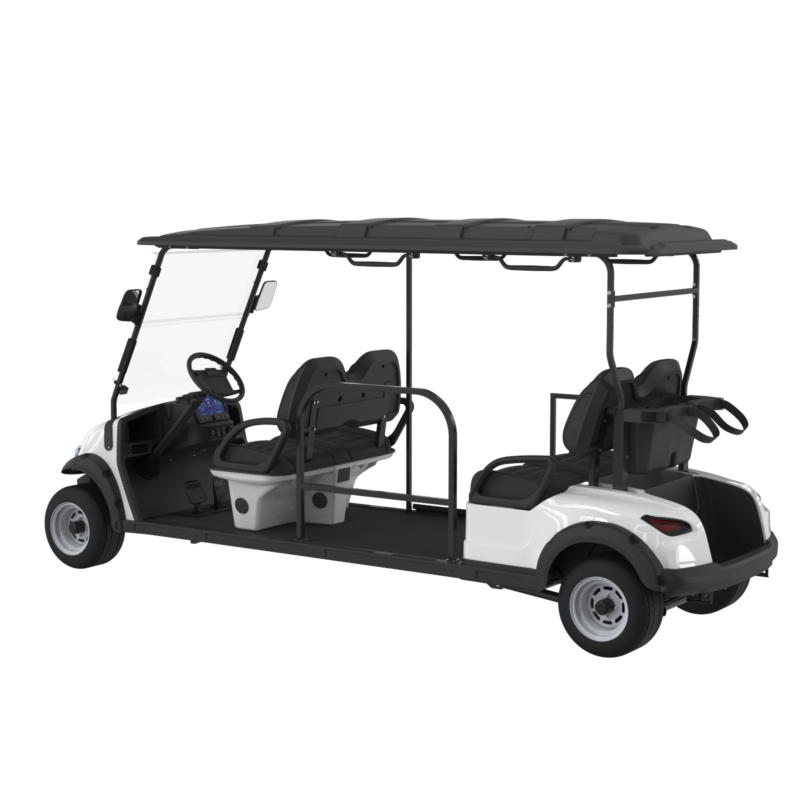

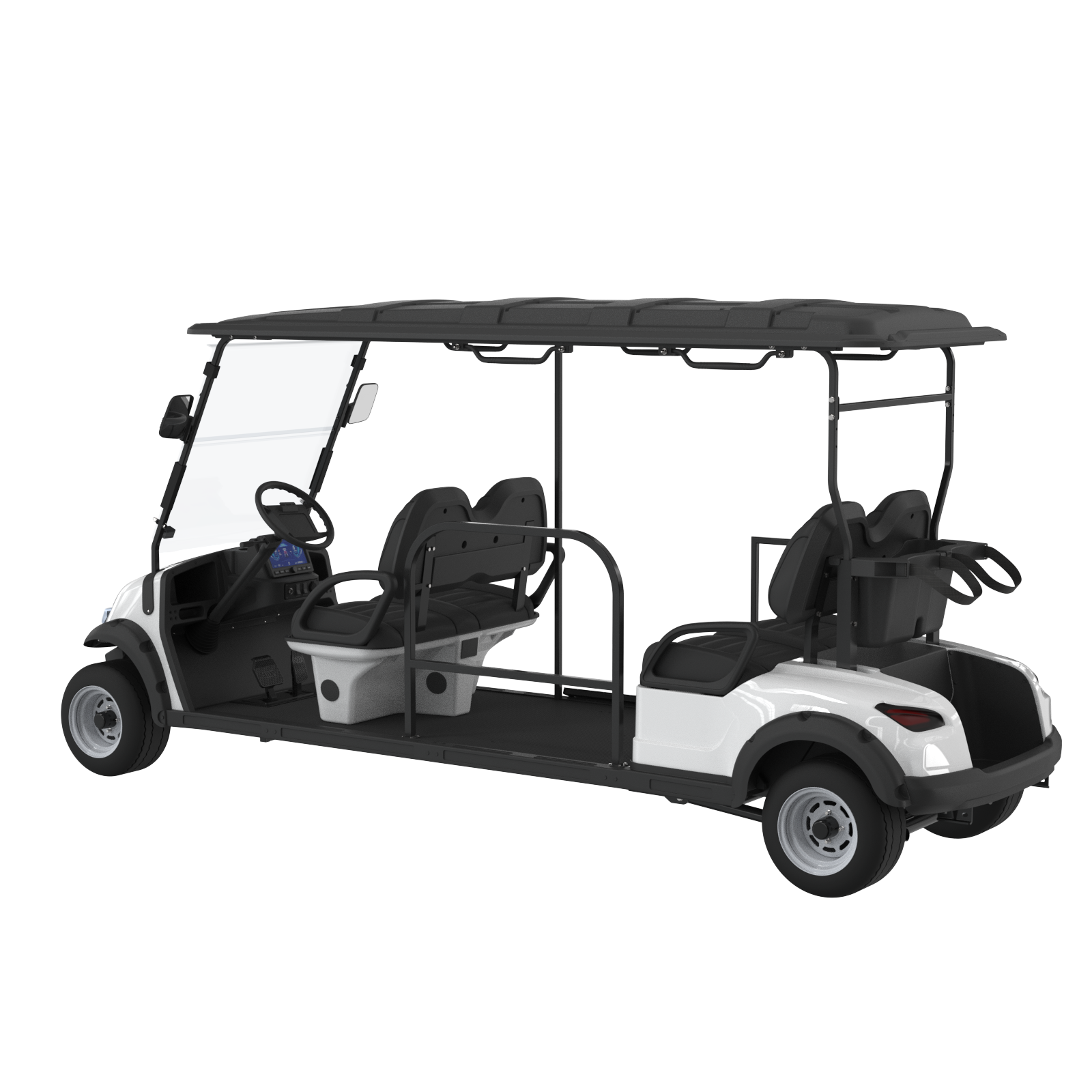

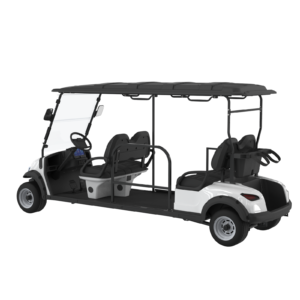

Wheelchair Accessible Electric Golf Cart | ADA Handicap Golf Cart with Wheelchair Securement System

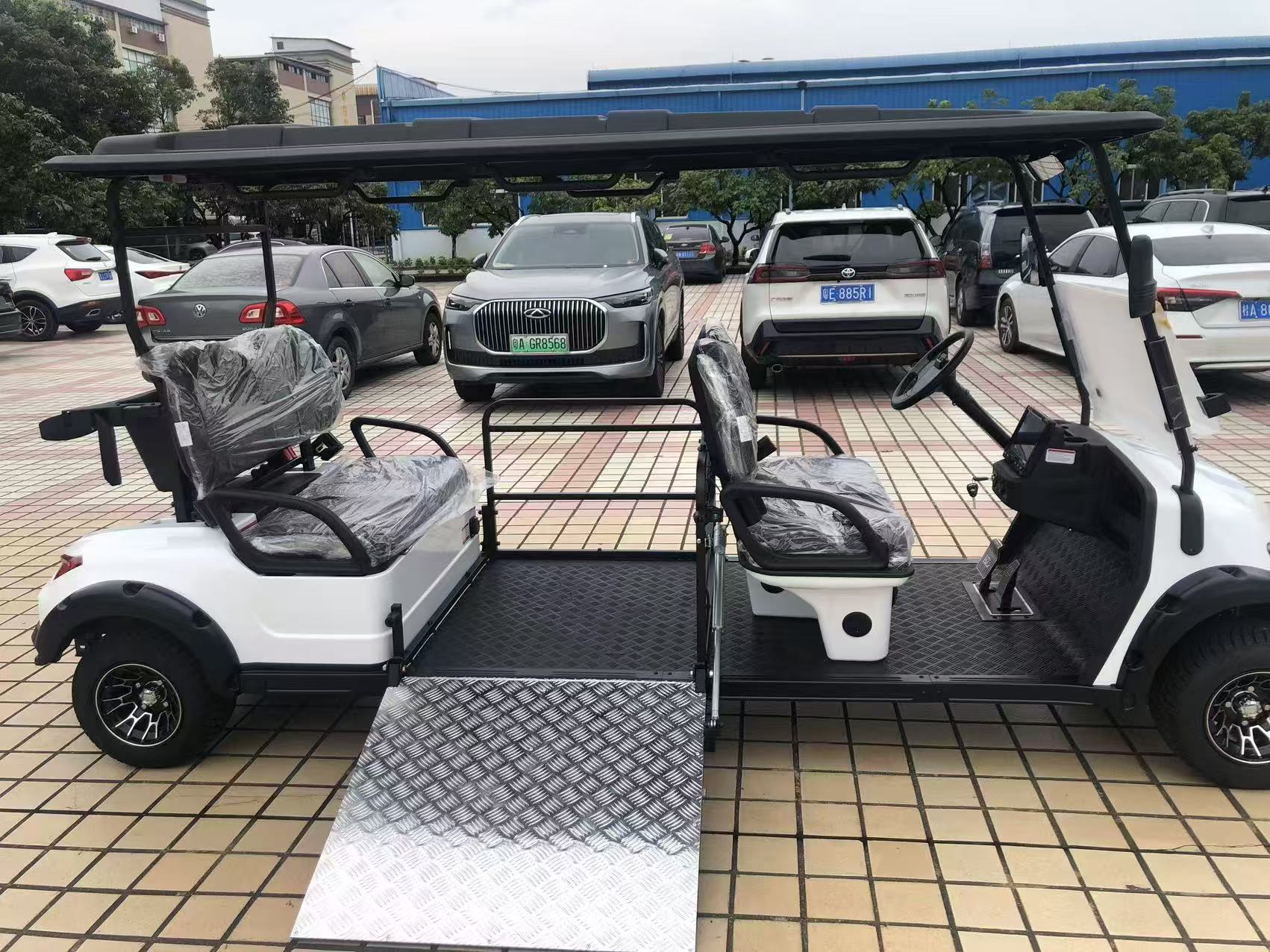

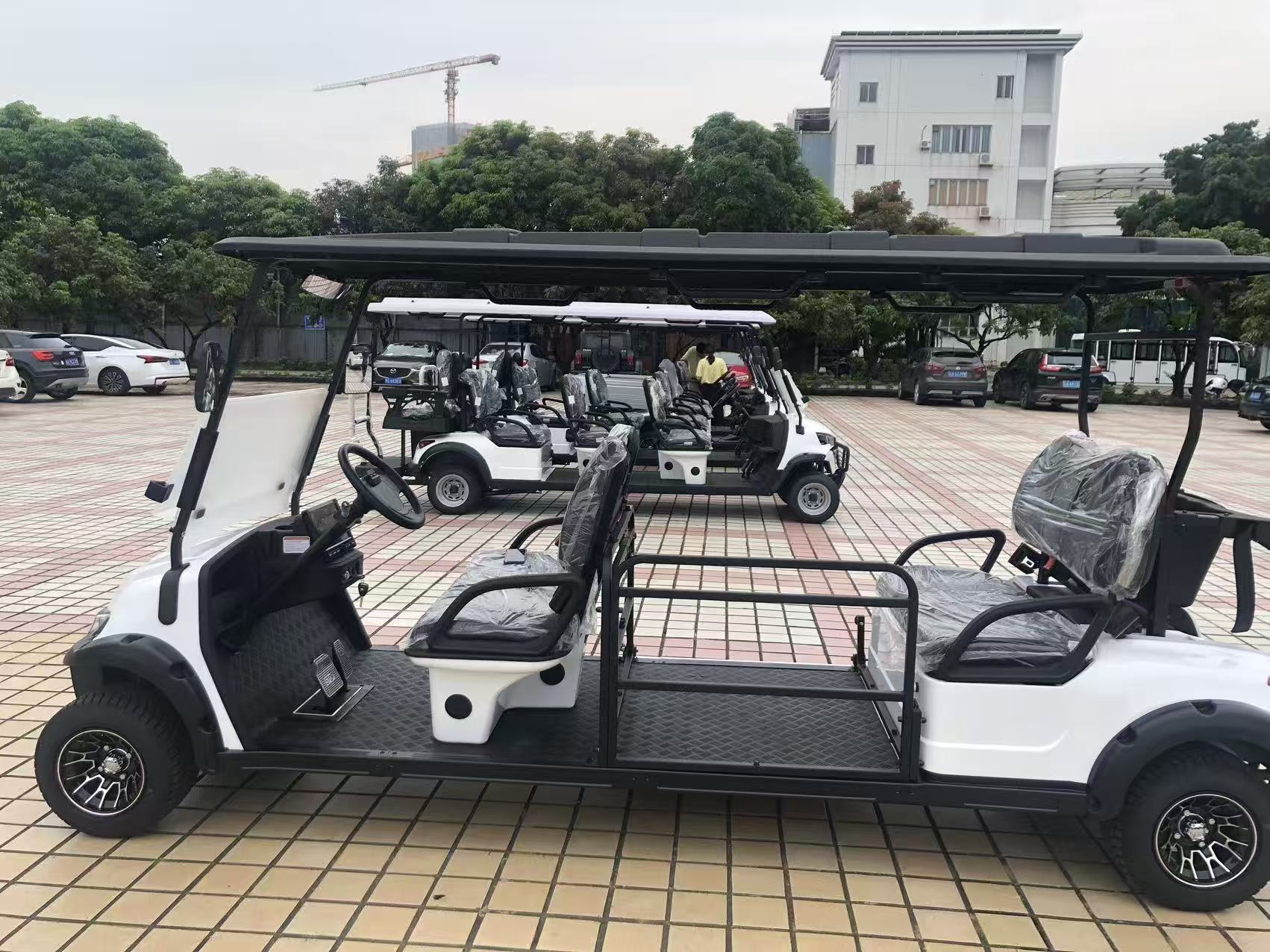

The GMTLSV Wheelchair Accessible Electric Golf Cart is designed to provide safe, comfortable, and barrier-free transportation for wheelchair users. Featuring a spacious rear wheelchair compartment, integrated wheelchair securement system, and low-floor access, it enables passengers to remain safely seated in their own wheelchair during transport.
Ideal for golf courses, resorts, retirement communities, hospitals, airports, universities, theme parks, and public facilities, this electric vehicle combines zero-emission operation, quiet performance, and customizable seating configurations. As a professional electric vehicle manufacturer, GMTLSV offers OEM and ODM customization to meet various accessibility and operational requirements worldwide.
| Motor | 48V 5000W AC induction |
| Lithium Battery | 51.2V/105Ah standard,optional 150ah |
| Min Turning Radius | ≦6m |
| Braking Distance | ≦5m |
| Controller | 48V 400A |
| Charger | 48V 20A,input can be 110V/220V/120V/230V |
| Body Materials | Front and rear plastic body plastic dashboard and roof, with wheelchair securement system or ADA golf cart device for handicap |
| Chassis | Q235 high-strength sheet metal welded frame, electrophoresis coating + anti-rust spraying. |
| Lights | LED front combination lights (low beam, high beam, turn signal, daytime running light) LED rear tail lights (brake light, running light, turn signal); snail horn, reverse buzzer. |
| Max Speed (km/h) | 20-25 |
| Gradeability (%) | 20 |
| Max Mileage (Normal Road) | 80-100km |
| Tire | 205/65-10 |
| Suspension | Double A arm independent |
| Brake | Front hydraulic disc rear drum brake with park brake |
| Windshield | Folded with DOT certification |
| Steering System | Bidirectional rack-and-pinion steering system with automatic clearance compensation function. |
| Display Meter | IP66 Water-Proof 10 inch LCD Multimedia Combo Instrument Panel with Vehicle Fault Detection Function |
