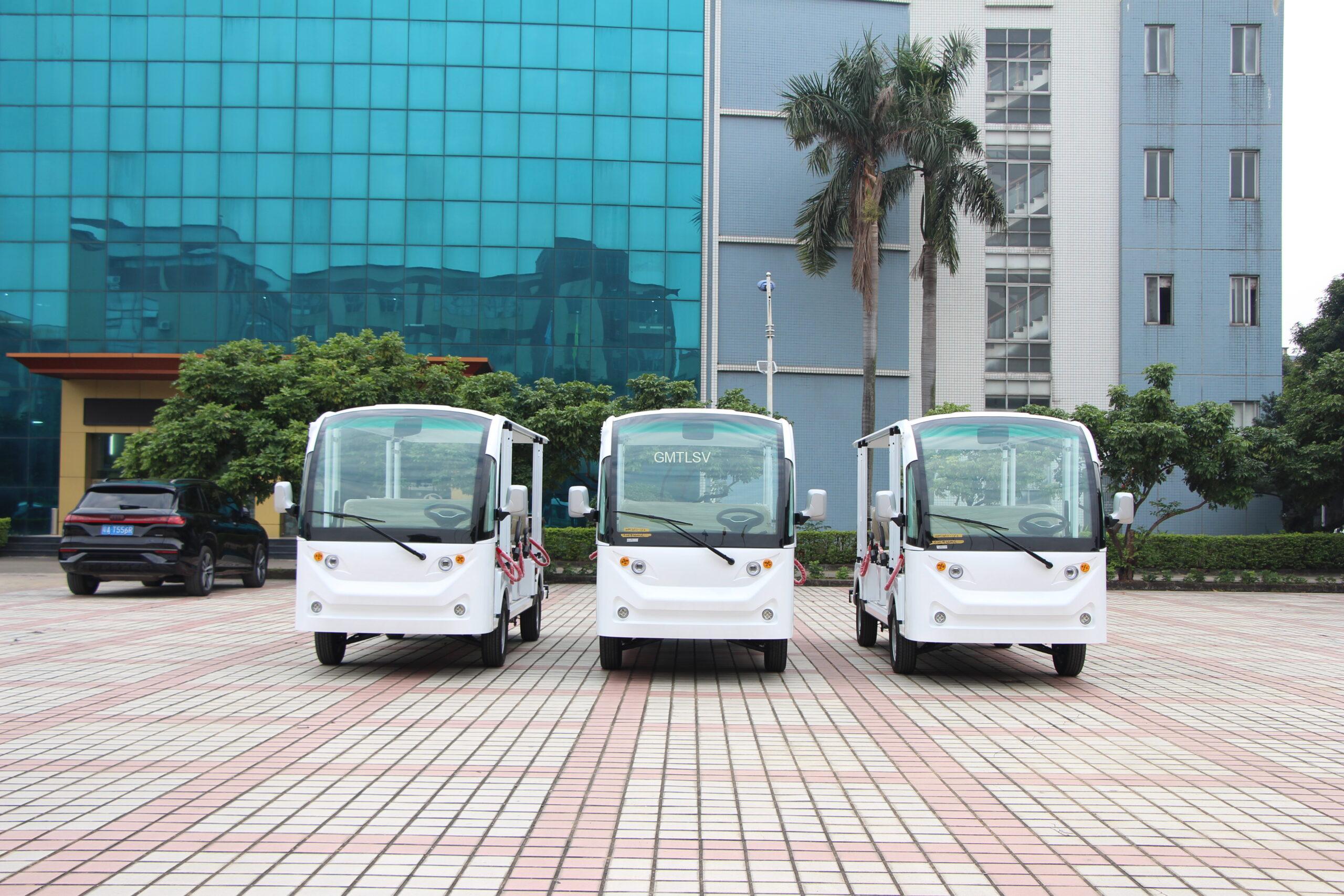

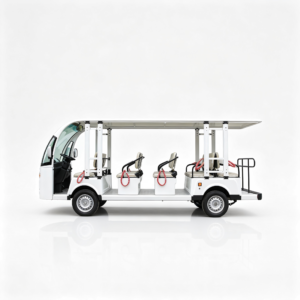

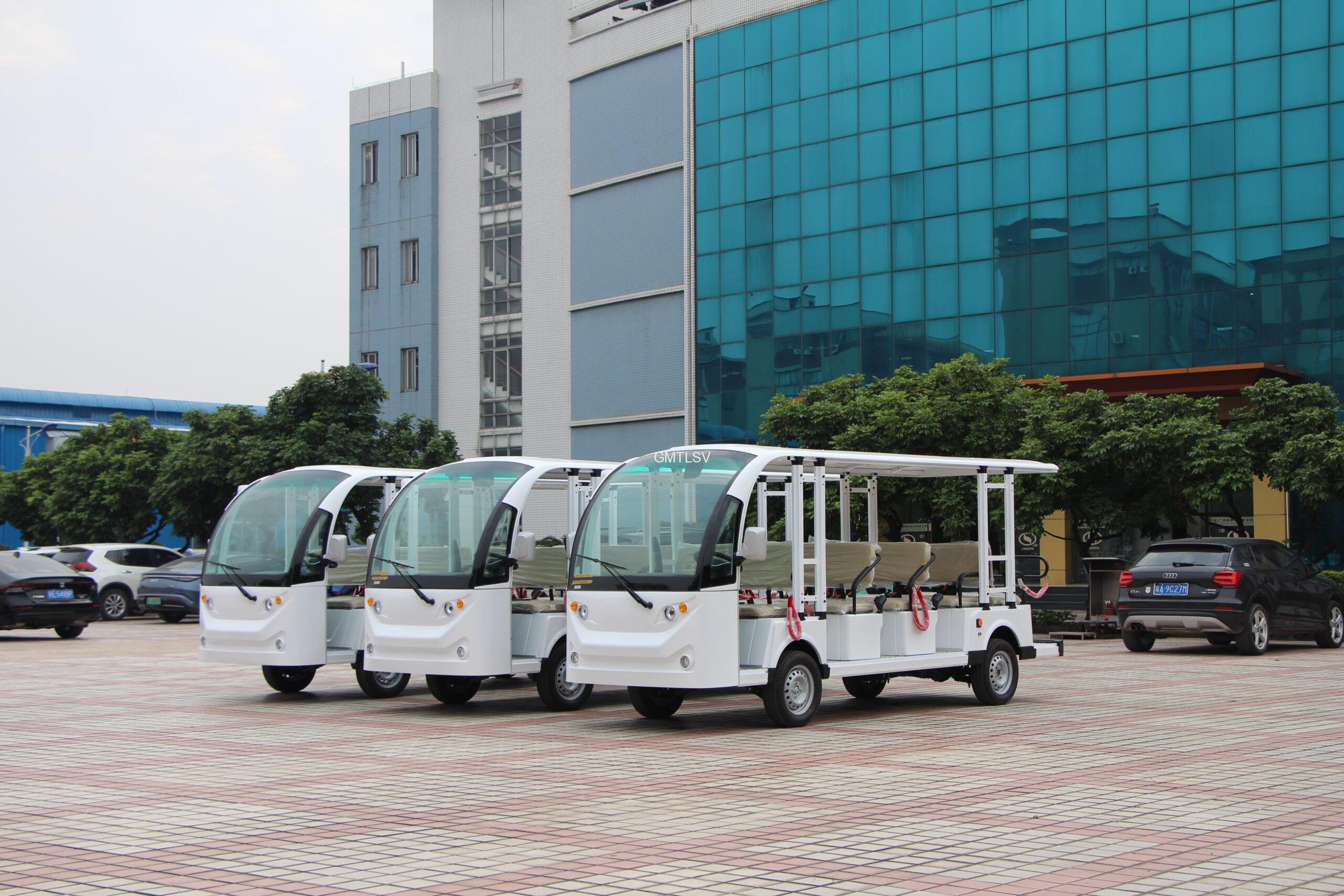

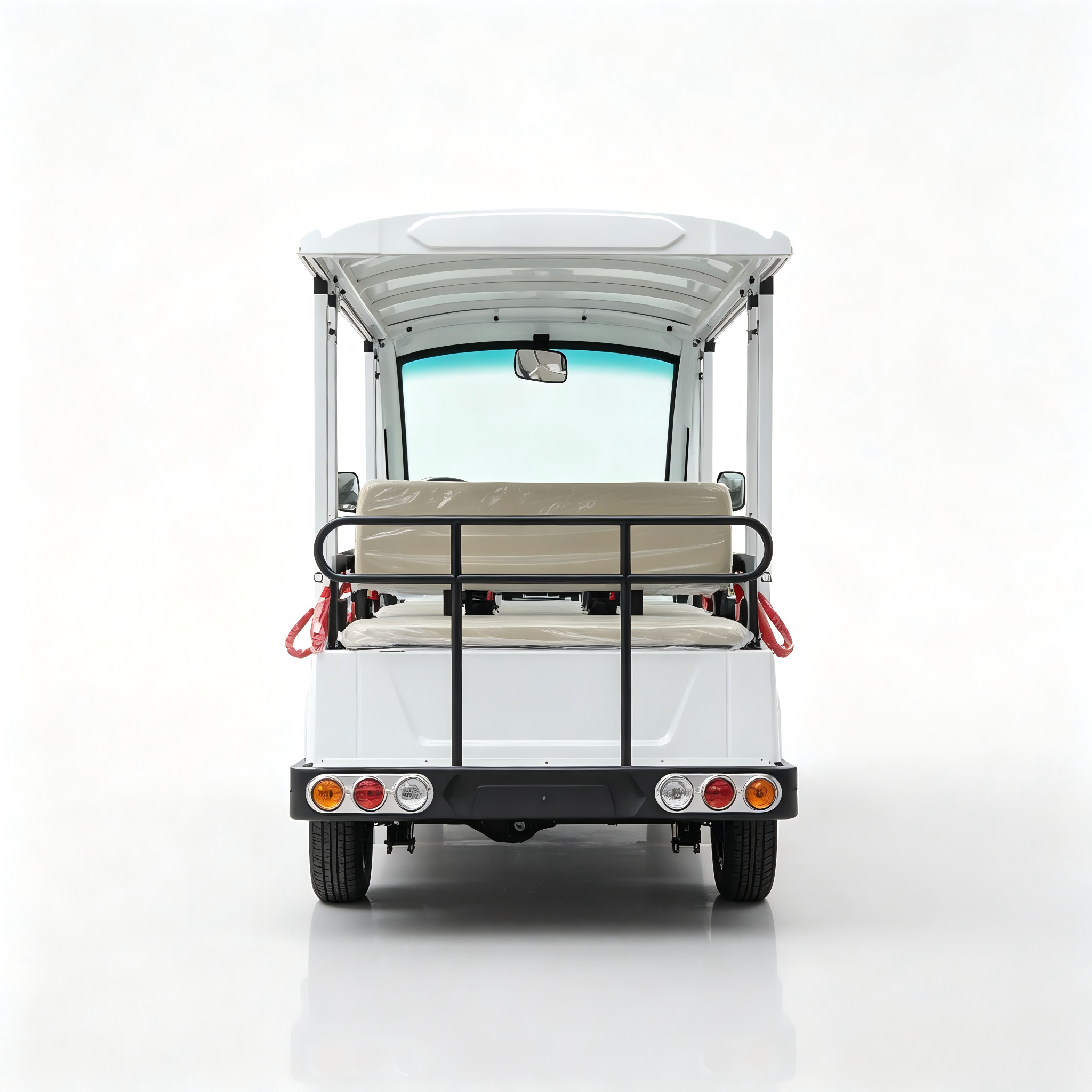

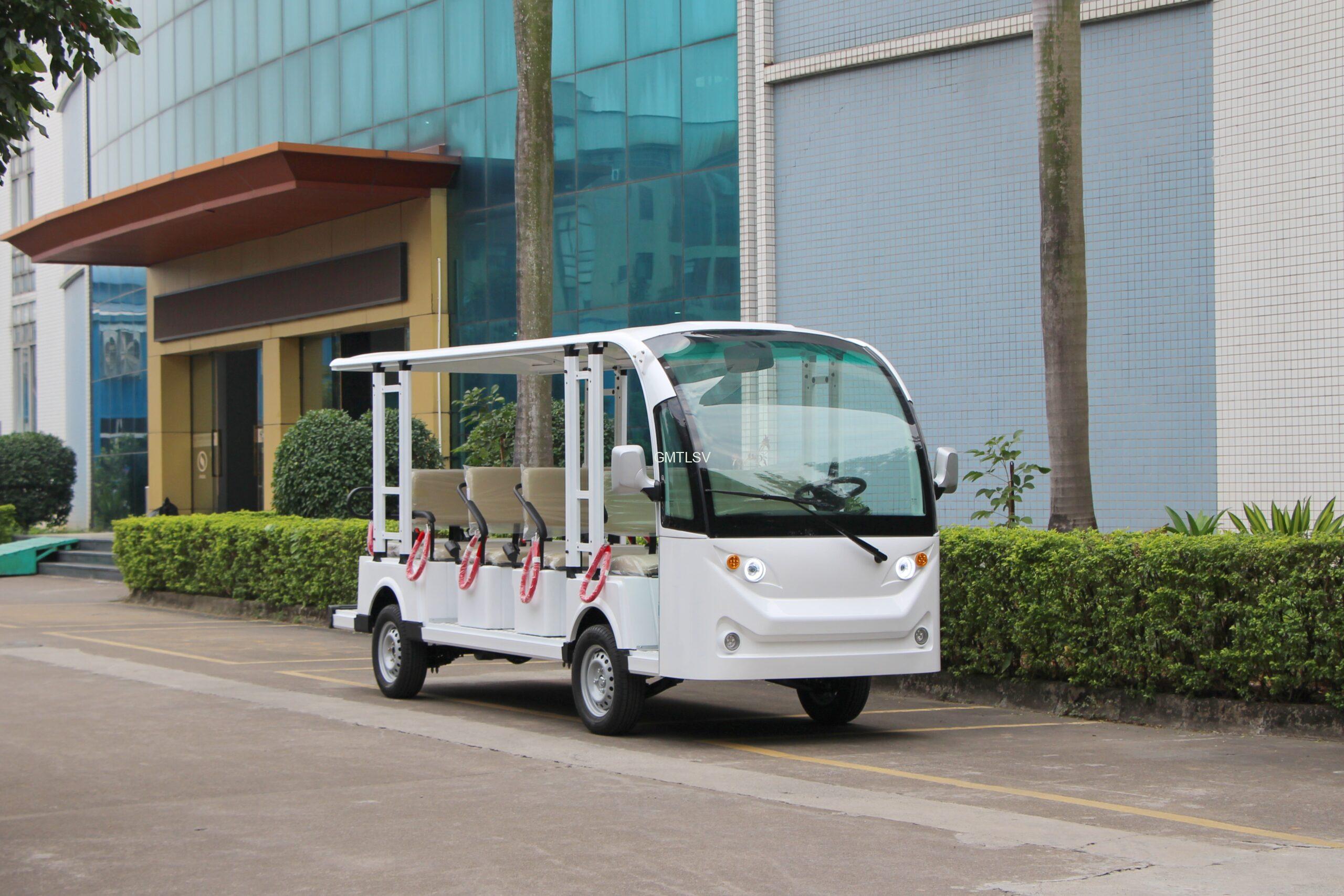

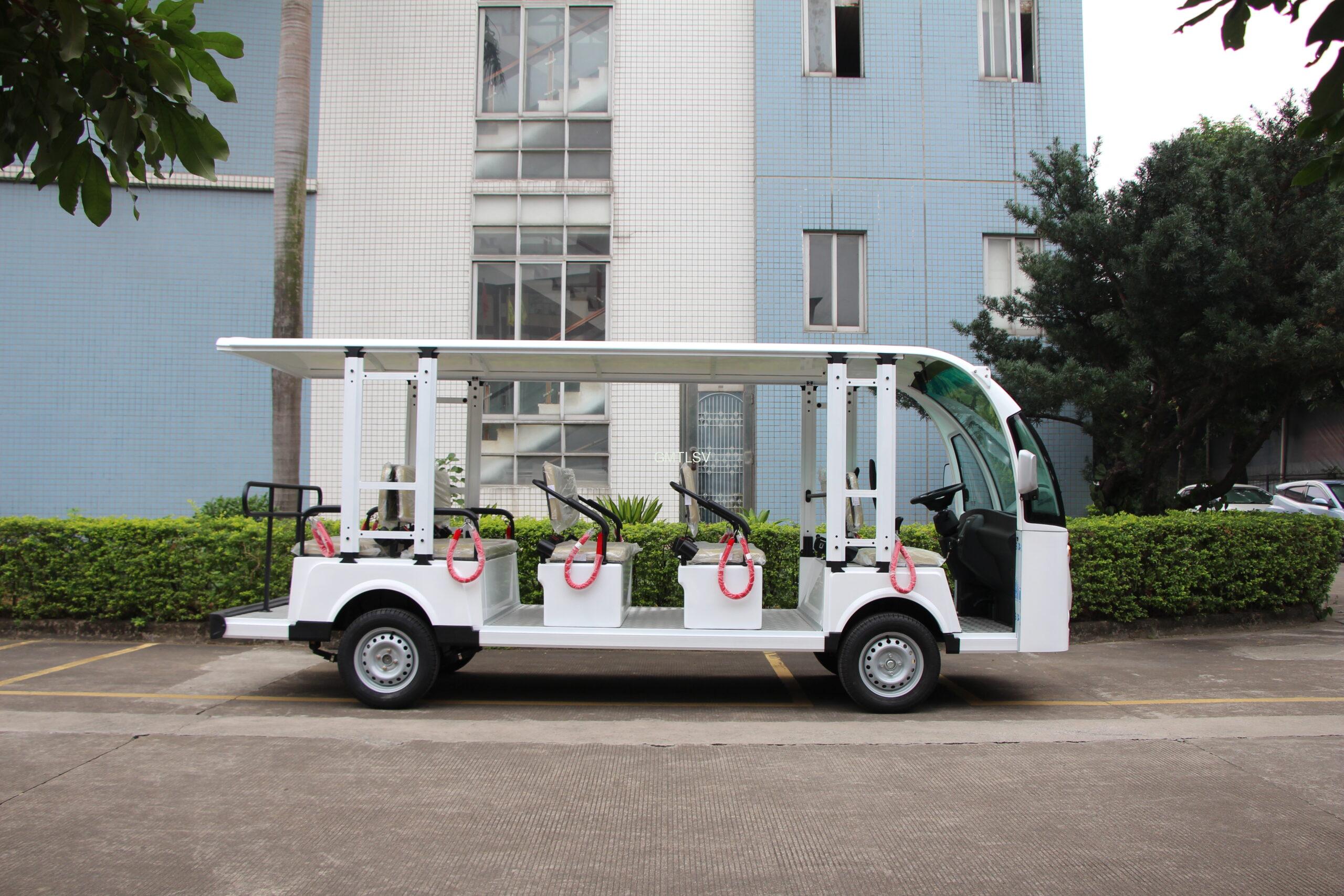

GB-14 Seats Tourist Car Electric Sightseeing Shuttle Bus

The GB-14 is a spacious electric sightseeing vehicle designed for moving larger groups with ease. Featuring 14 seats, it offers ample passenger space without sacrificing maneuverability. Powered by a 12.2 kWh battery, it provides a range of 90 km per charge and a maximum speed of 30 km/h. Safety features include front ventilated disc brakes and rear drum brakes with vacuum assistance, while the MacPherson front suspension and integral rear axle ensure a comfortable and stable ride.

Perfect for theme parks, resort shuttles, airport terminals, exhibition halls, factory campuses, and tourist attractions, it efficiently transports visitors and staff in low-speed, eco-friendly operations, reducing congestion and emissions in high-traffic pedestrian zones.

Share:

Vehicle Configuration

Passenger capacity14 seats
Max.Speed30km/h
Battery spec12*6V/170Ah Lead-acid Batteries
Endurance Mileage90km
Climbing Ability(loaded)15%
Min.Clearance140mm
Curb Weight1230kg
L×W×H4985x1510x2120mm
Braking Distance≤6.0m

Min.Turning Radius

≤6.5m

MotorAC7.5KW 72V
Controller72V 400A controller
Body|Chassis

High-strength composite material body

High-strength steel frame-type longitudinal beam chassis

TiresVacuum radial tires 165/70R13 with steel rims

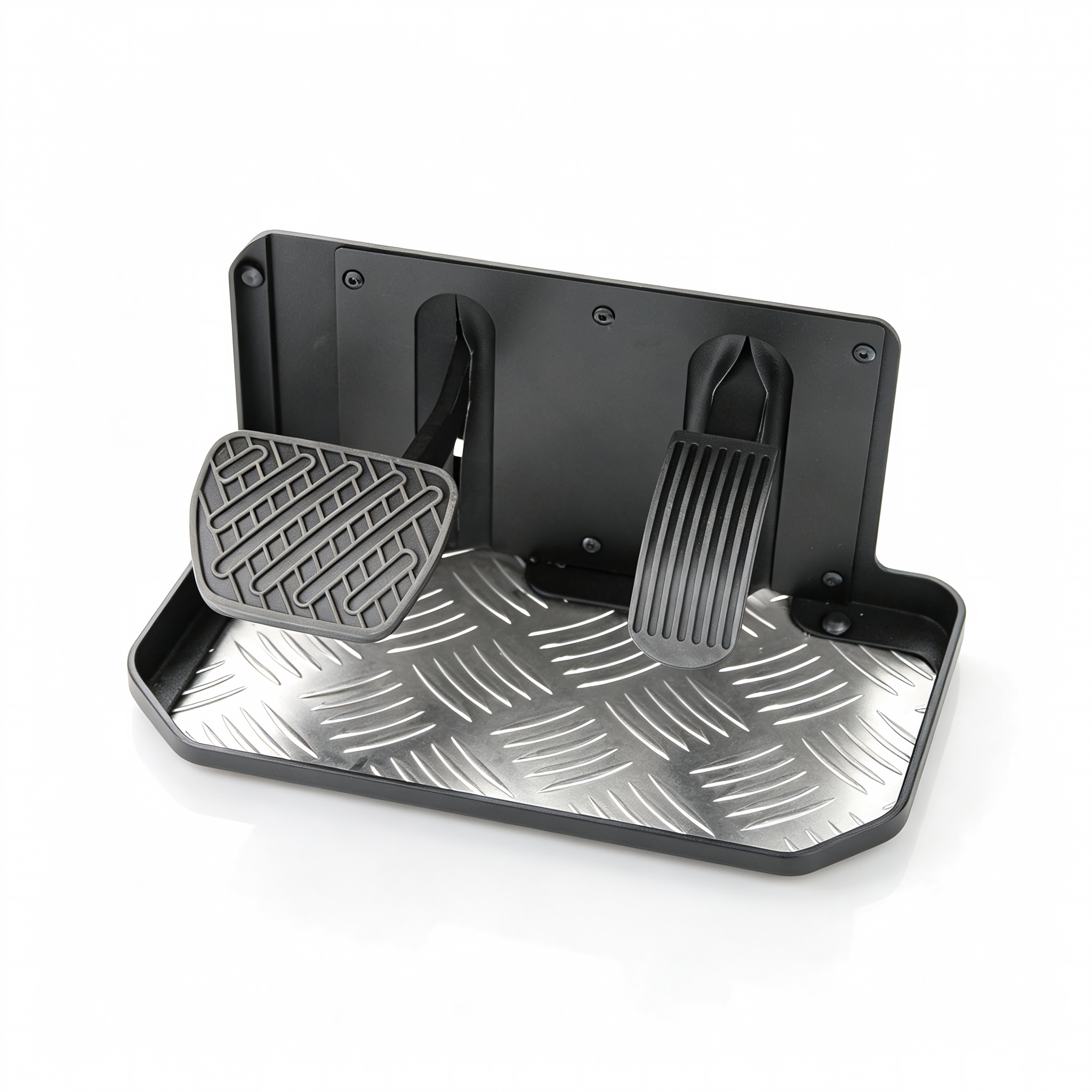

Brake system

Front ventilated discs and rear drum hydraulic dual circuit brakes + handbrake parking with

vacuum-assisted braking system

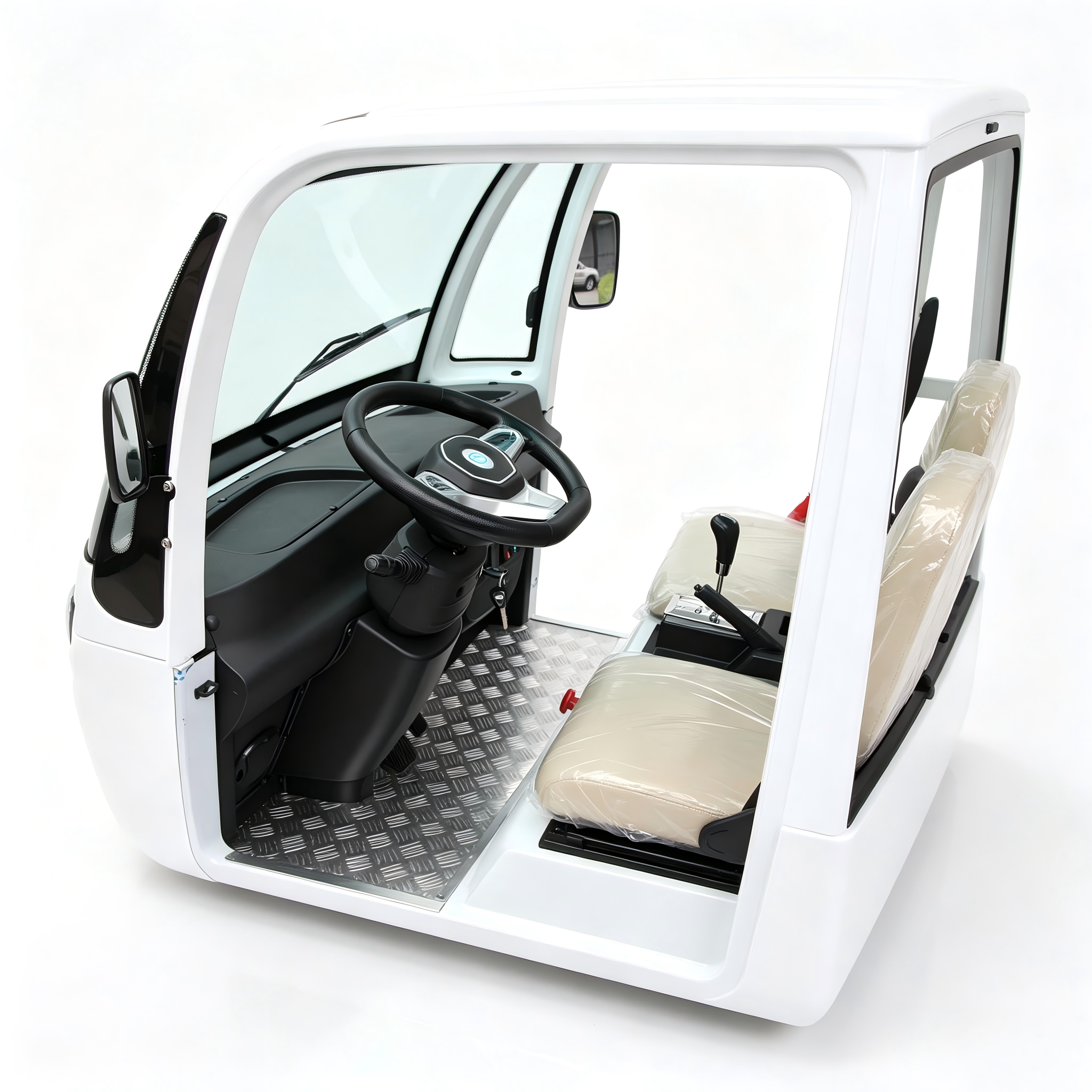

SteeringDual push rack and pinion steering + electric power steering system

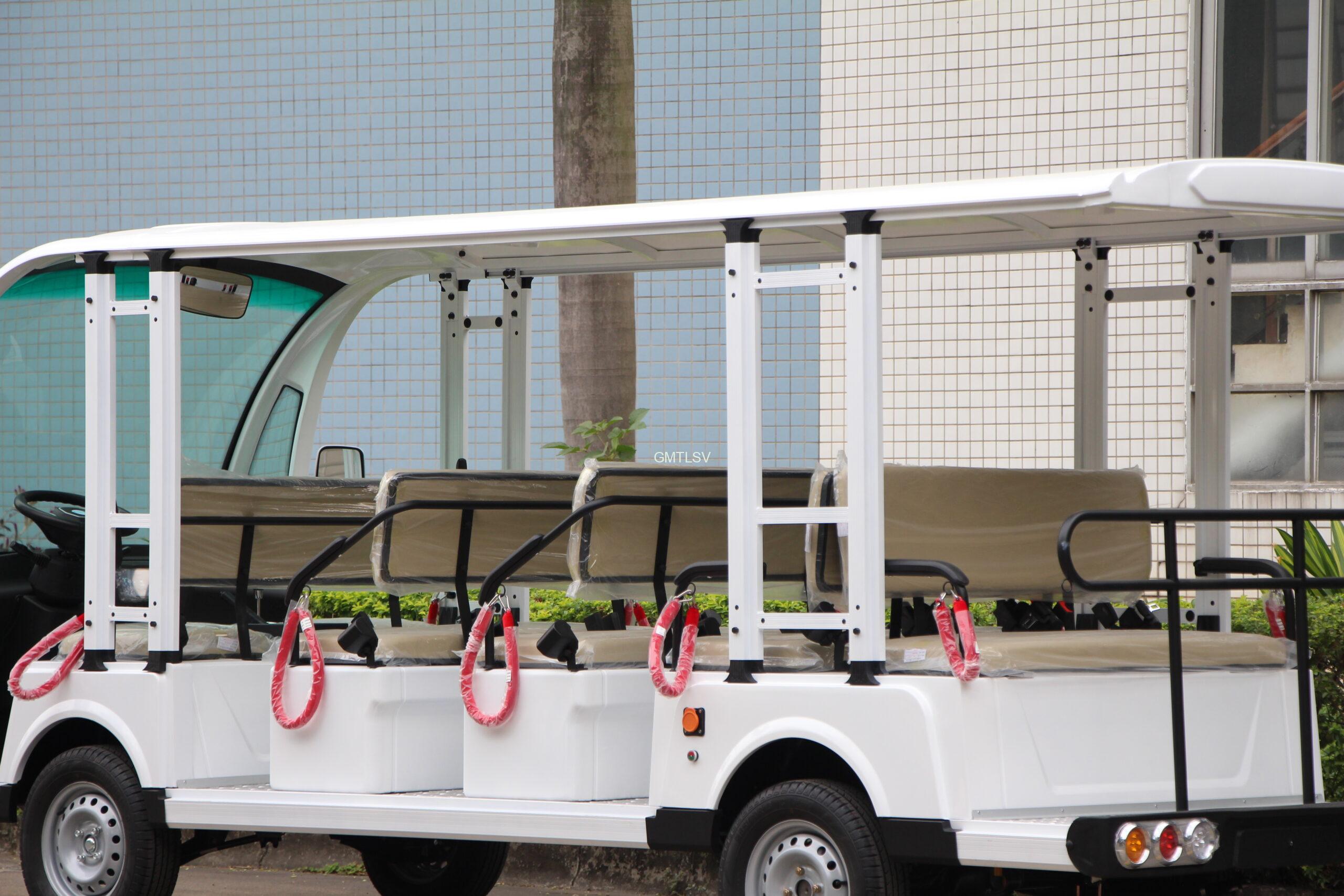

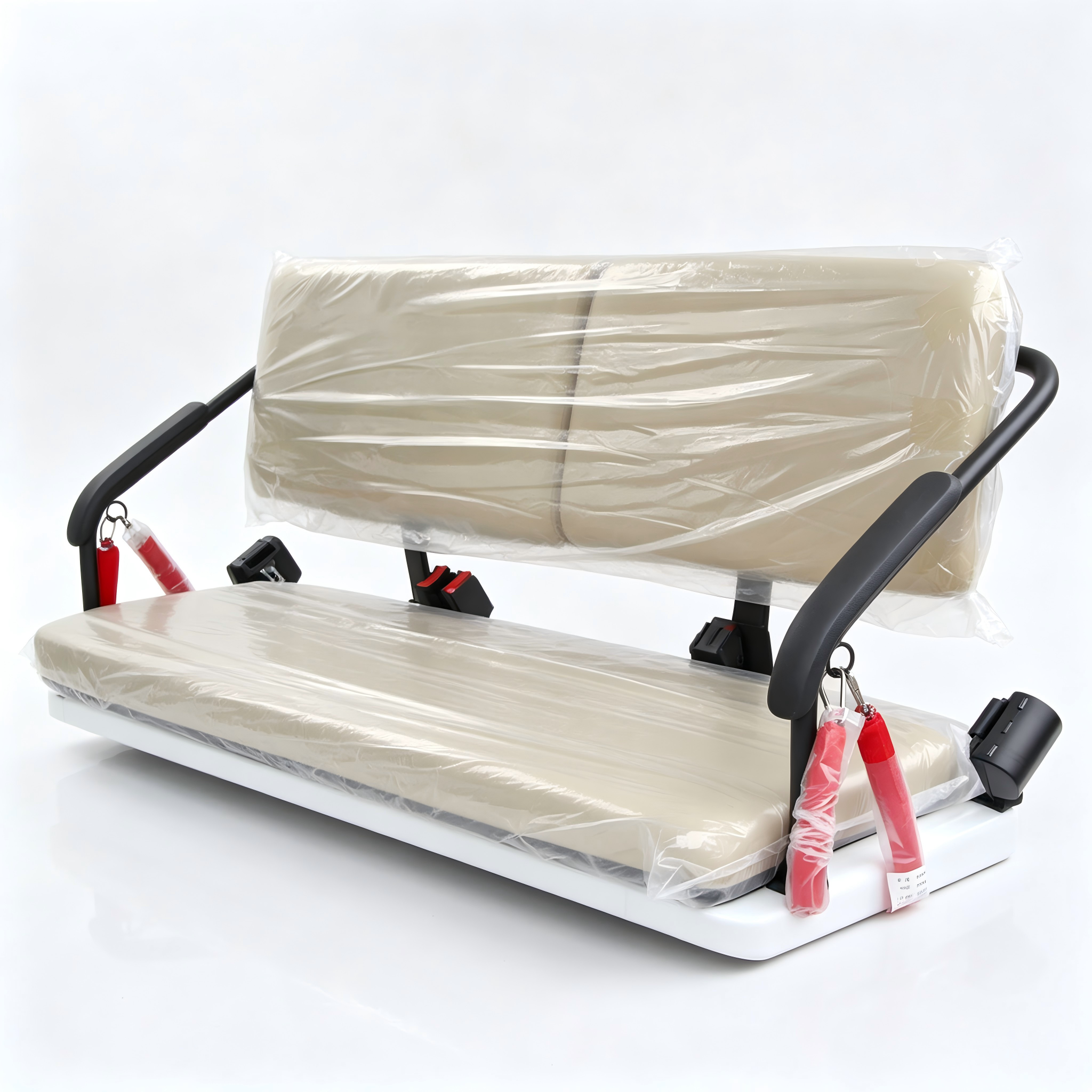

SeatsPU car special seat, ergonomic

Windshield

Automotive-grade laminated glass

Weight 1230 kg
Dimensions 499 × 151 × 212 cm
