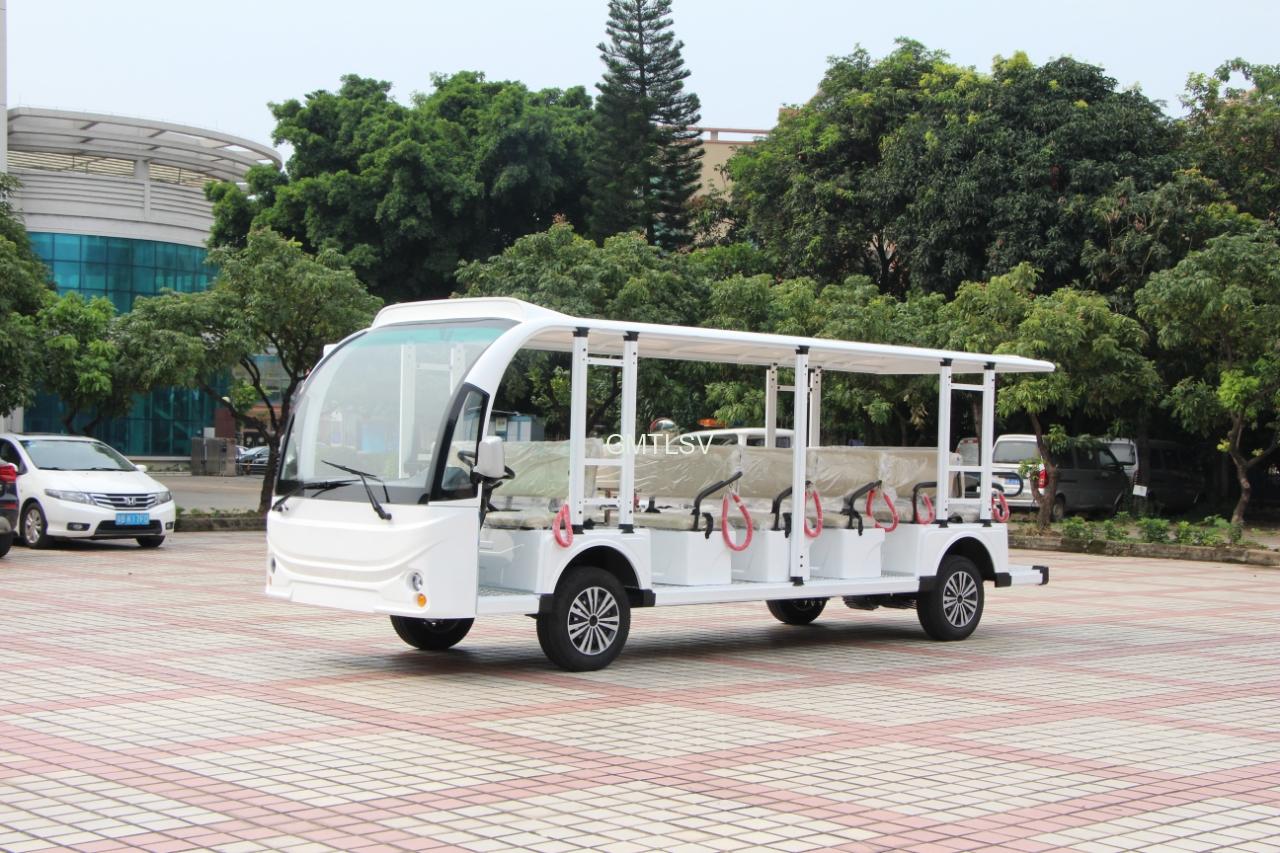

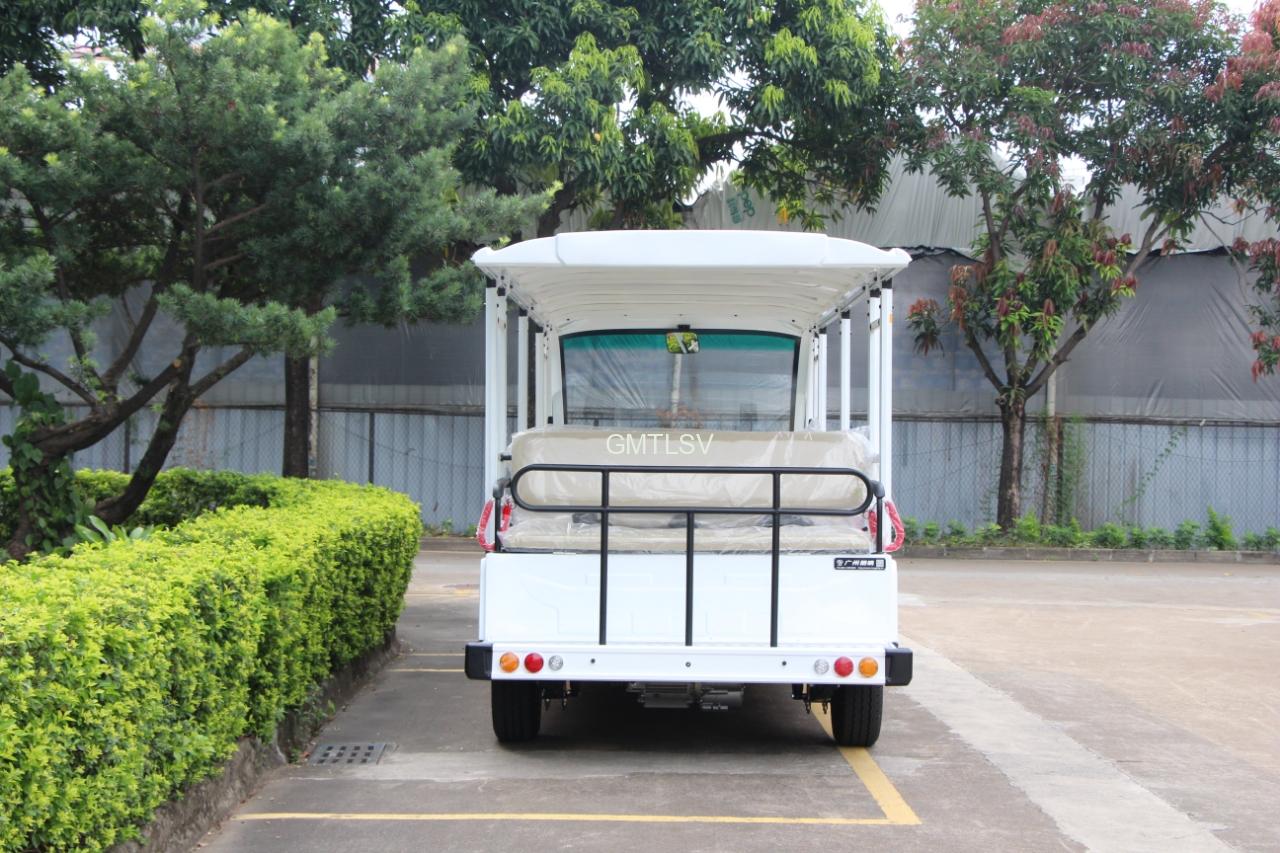

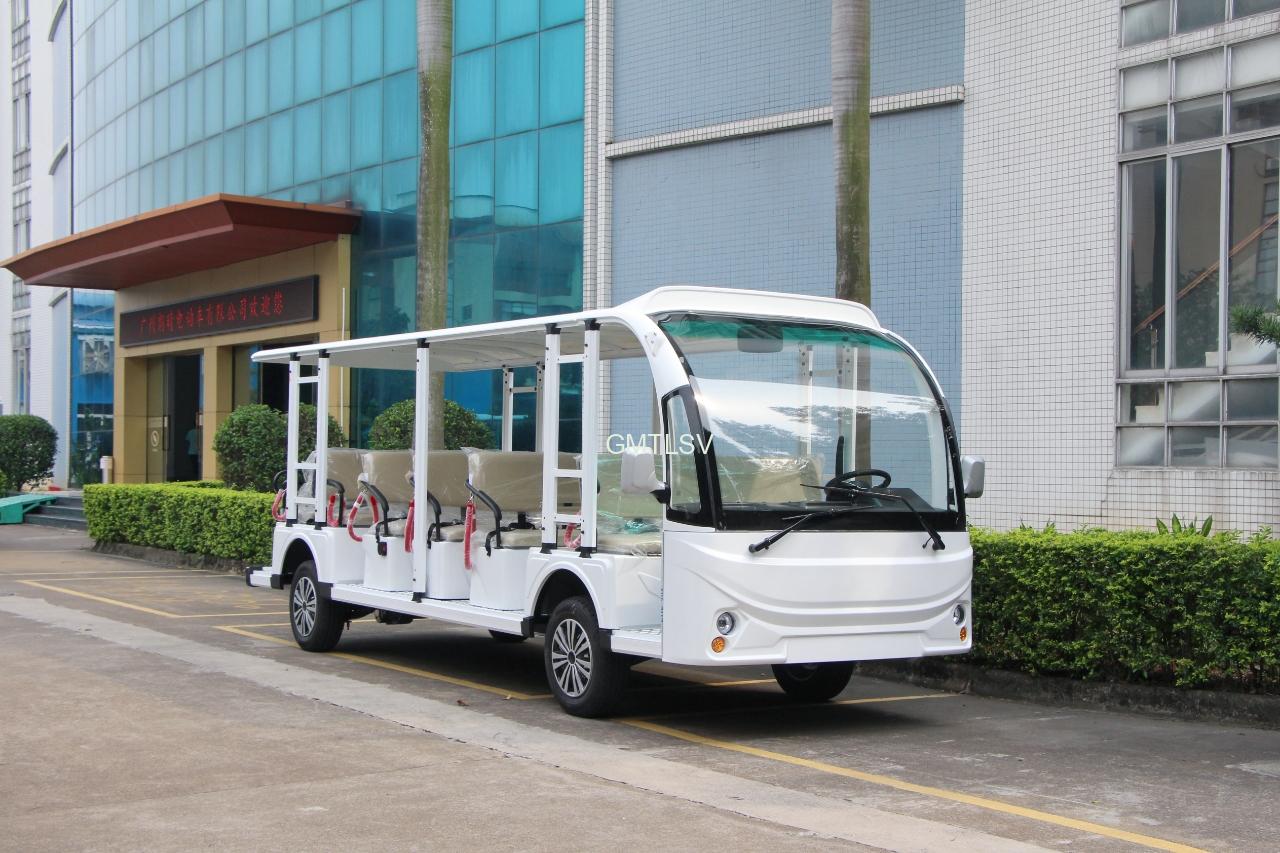

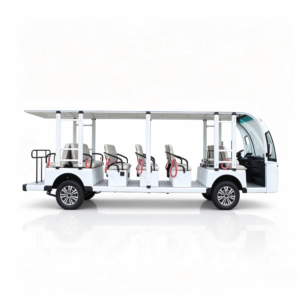

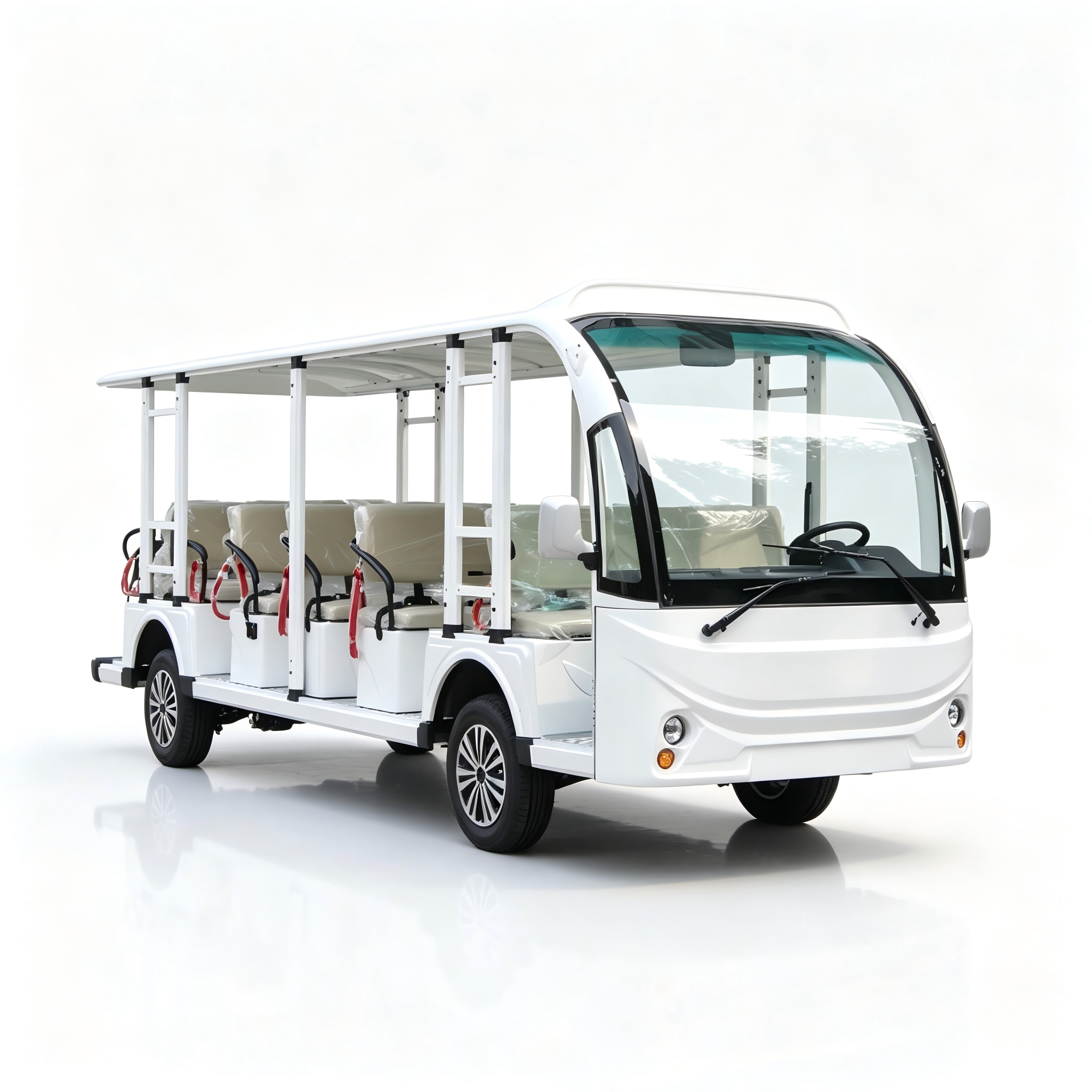

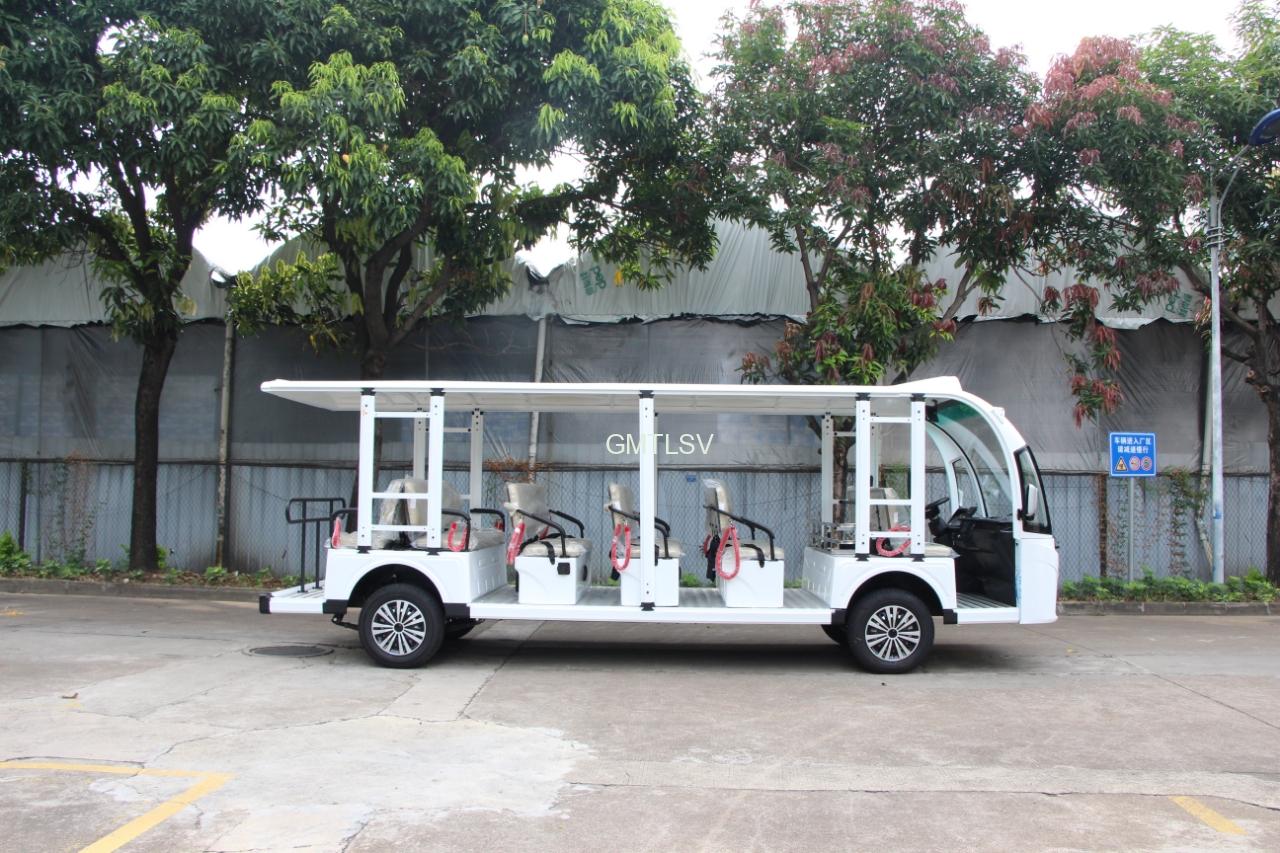

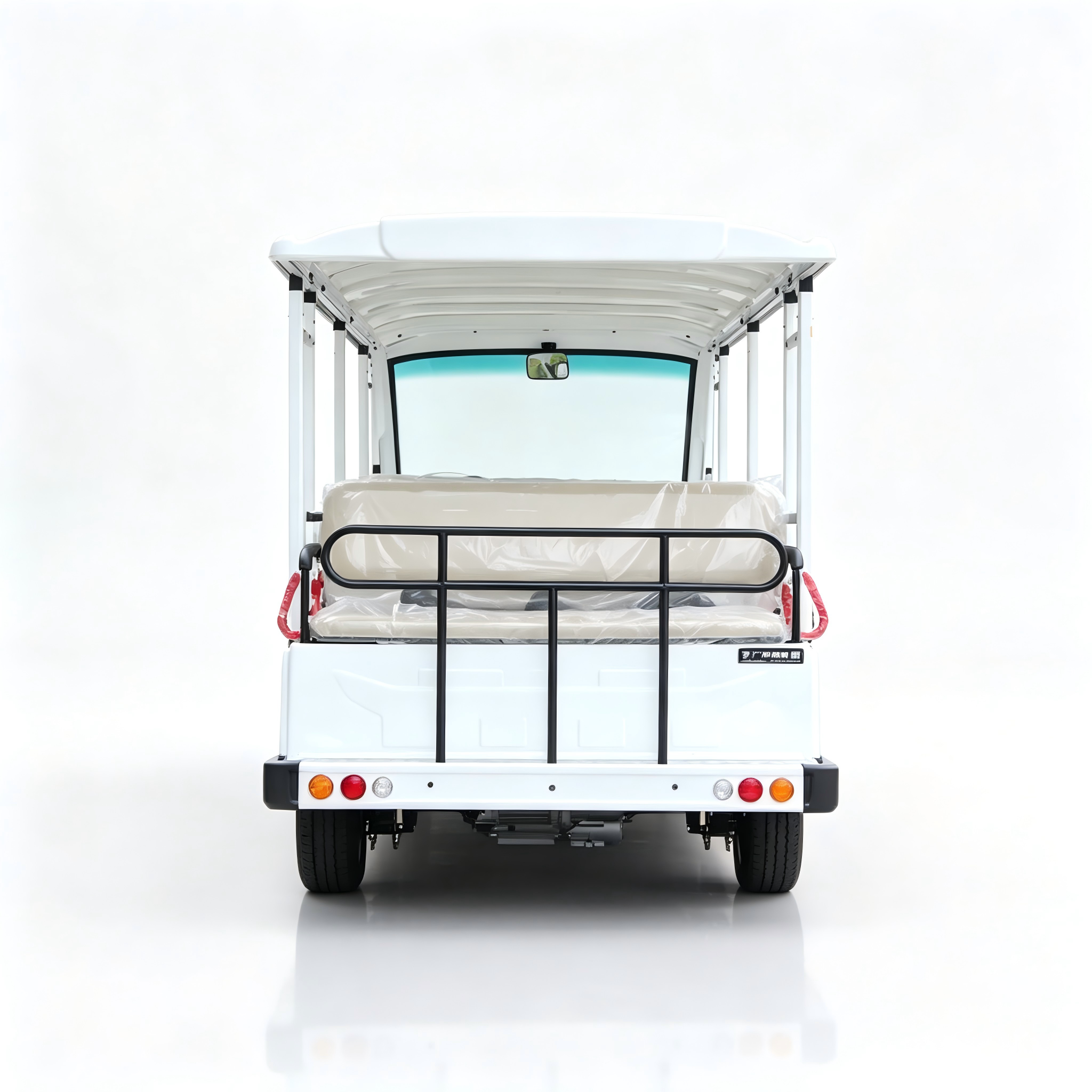

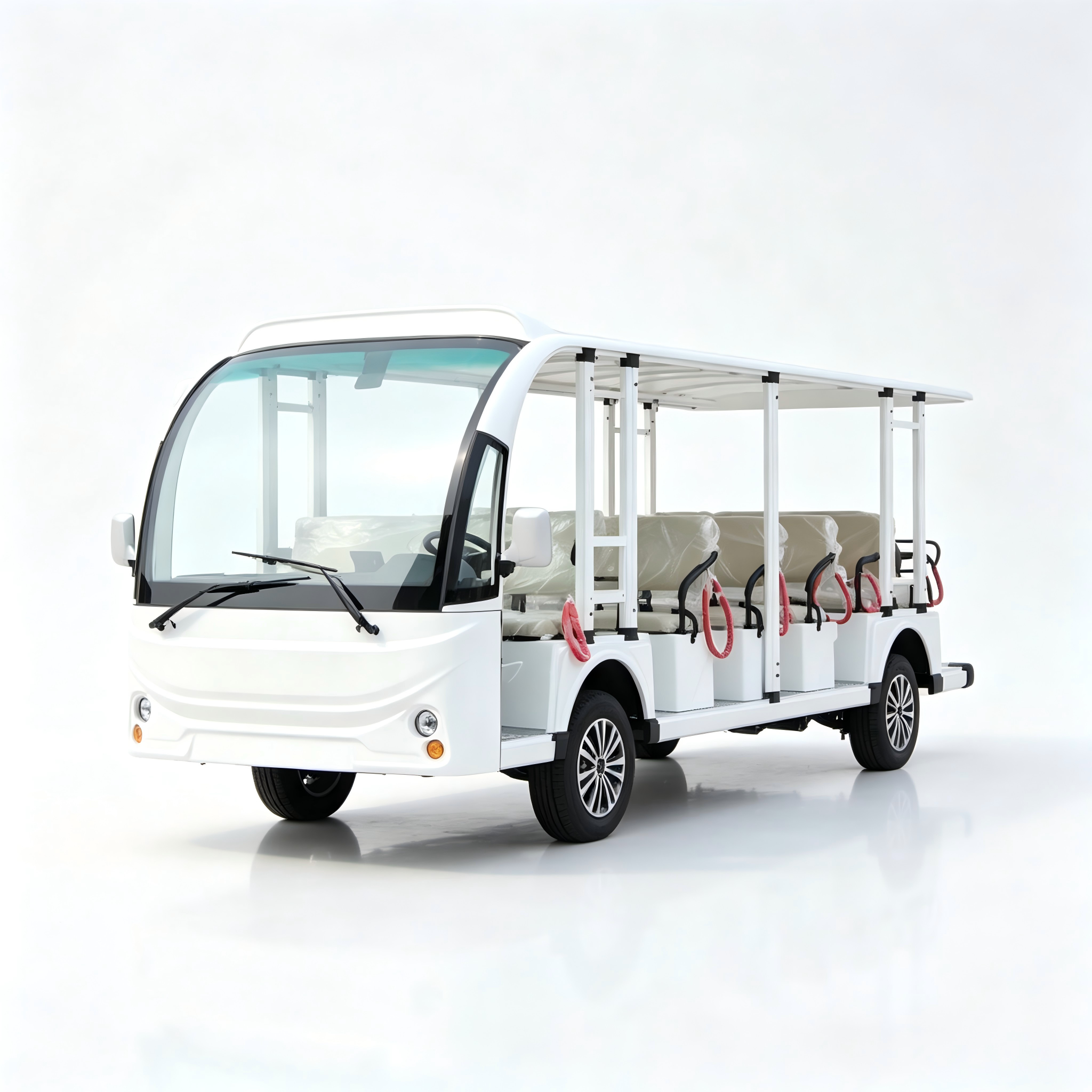

GB-23 Seats Tourist Car Electric Sightseeing Shuttle Bus

The GB-23 is a heavy-duty 23-seat electric sightseeing bus engineered for high-capacity passenger transport, it delivers robust performance with a range of 90 km per charge and a top speed of 30 km/h.  It handles diverse terrains confidently. The high-strength steel frame chassis features electrophoresis anti-rust treatment, while the fiberglass body and composite roof ensure durability and weather resistance.

Ideal for large tourist attractions, resort complexes, airport terminals, convention centers, zoo parks, and campus shuttle services, the GB-23 sightseeing bus efficiently moves large groups over medium to long distances, providing reliable, zero-emission transportation in high-traffic pedestrian environments.

Share:

Vehicle Configuration

Passenger capacity23seats
Max.Speed30km/h
Battery spec16*6V/170Ah Lead-acid Batteries
Endurance Mileage90km
Climbing Ability(loaded)15%
Min.Clearance150mm
Curb Weight1440kg
L×W×H6220x1850x2270mm
Braking Distance≤3.5m

Min.Turning Radius

≤7.5m

MotorAC20KW 96V
Controller96V 660A controller
Body|Chassis

High-strength composite material body

High-strength steel frame-type longitudinal beam chassis

TiresVacuum radial tires 165/70R13 with steel rims
Brake system

Front ventilated discs and rear drum hydraulic dual circuit brakes + handbrake parking with

vacuum-assisted braking system

SteeringDual push rack and pinion steering + electric power steering system
SeatsPU car special seat, ergonomic

Windshield

Automotive-grade laminated glass

Weight 1900 kg
Dimensions 622 × 185 × 227 cm
