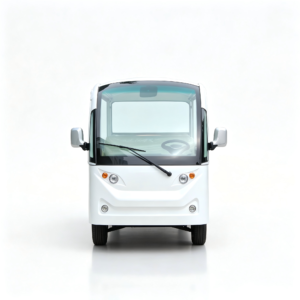

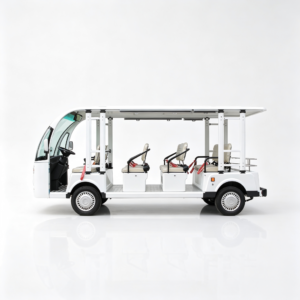

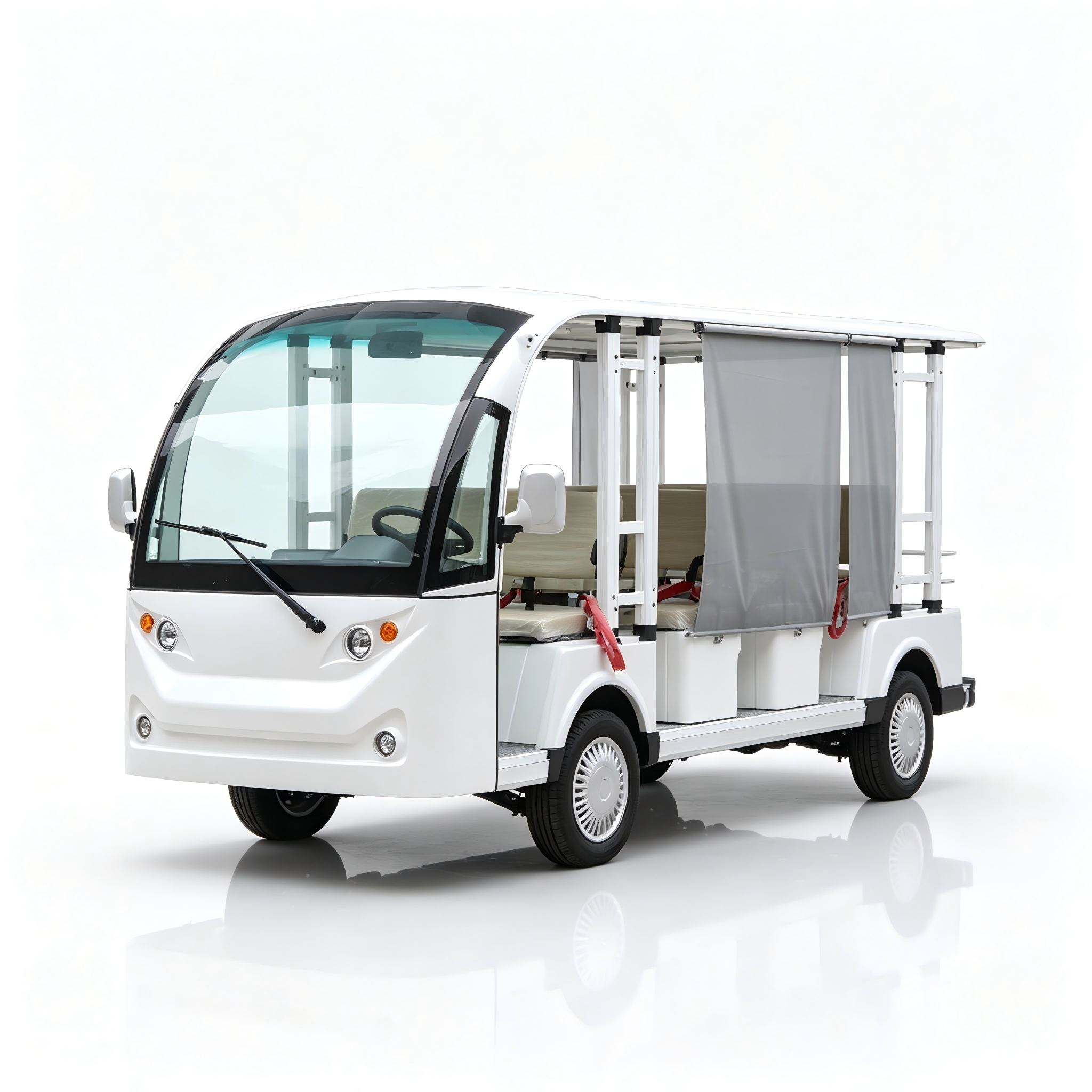

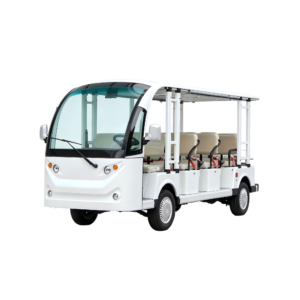

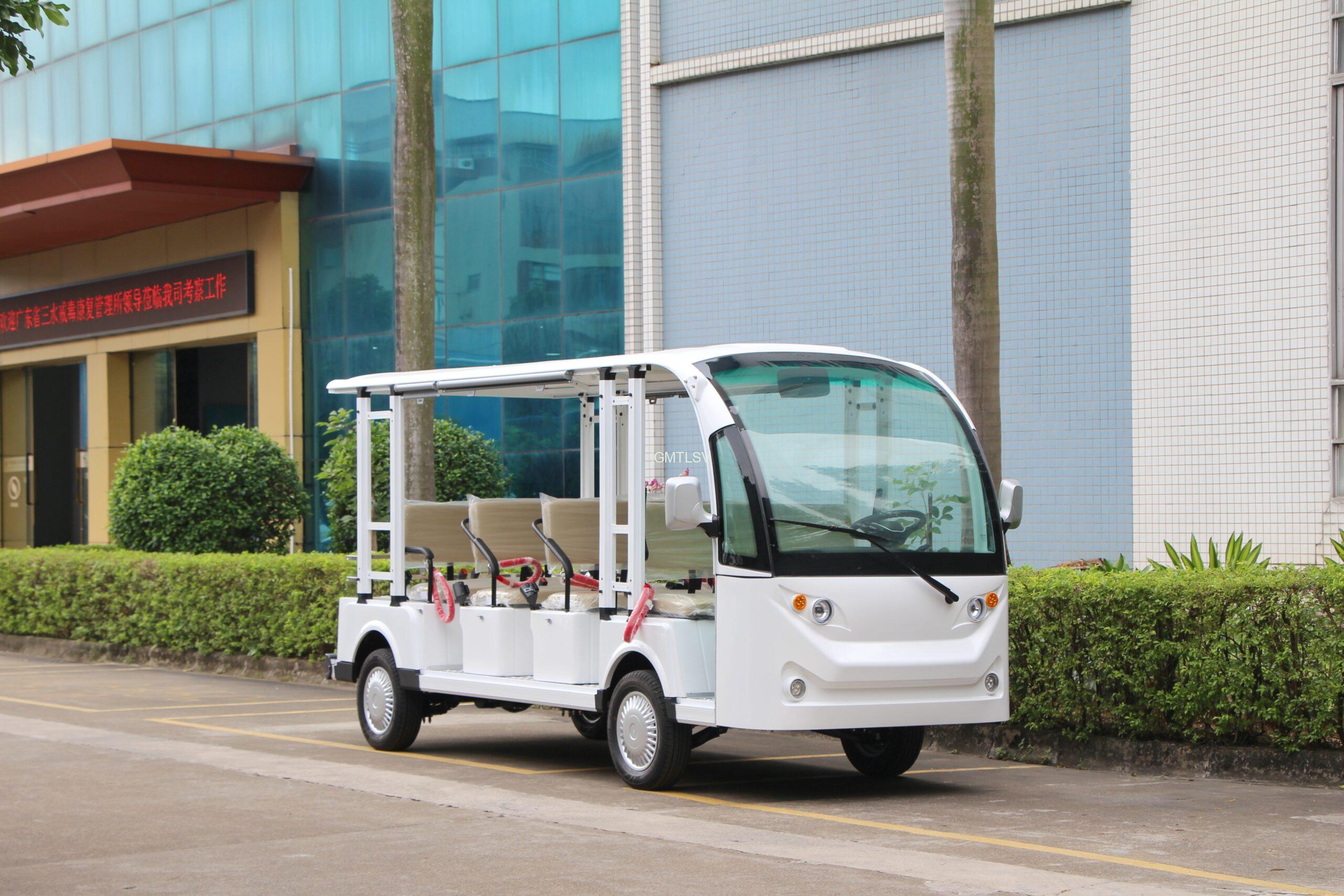

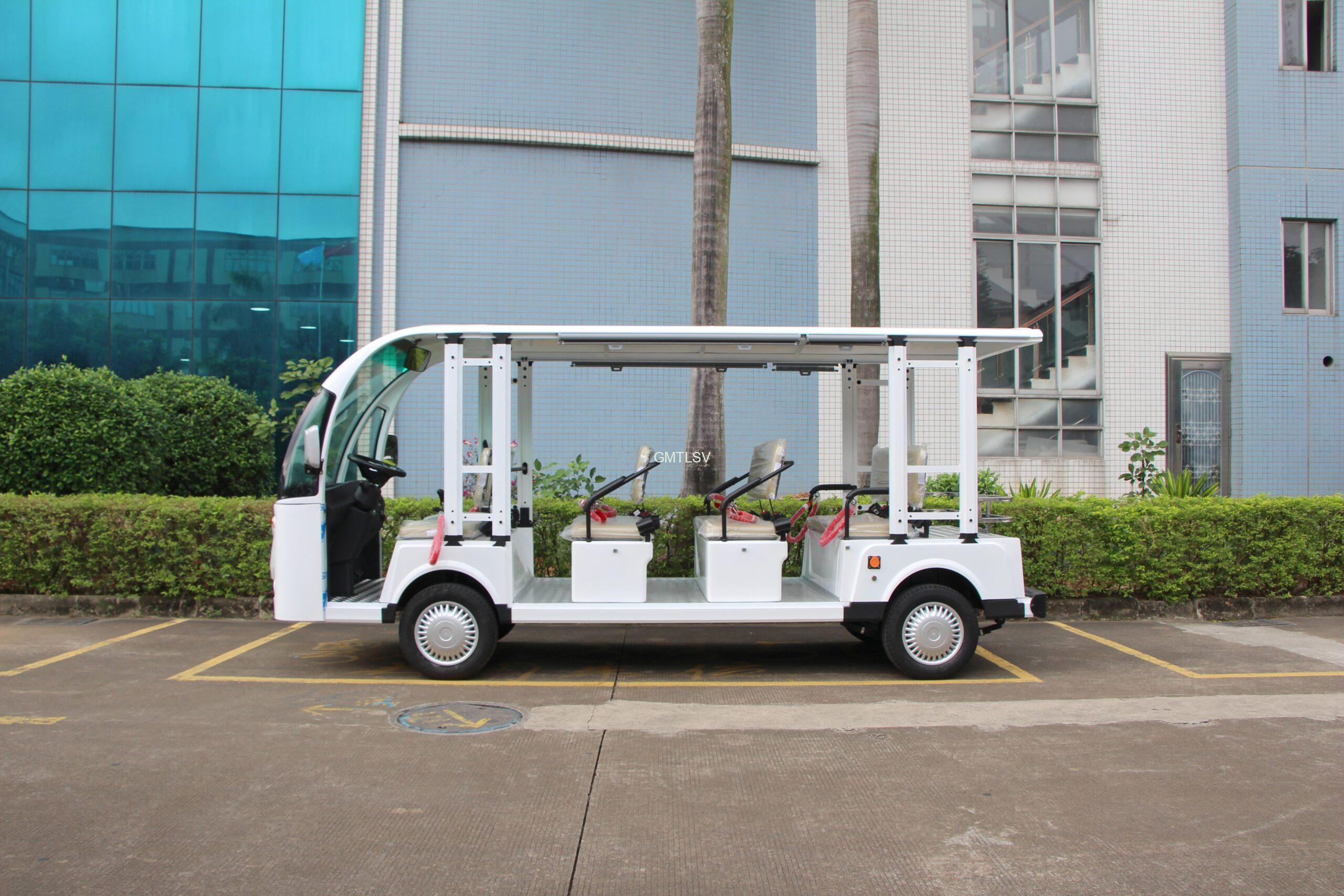

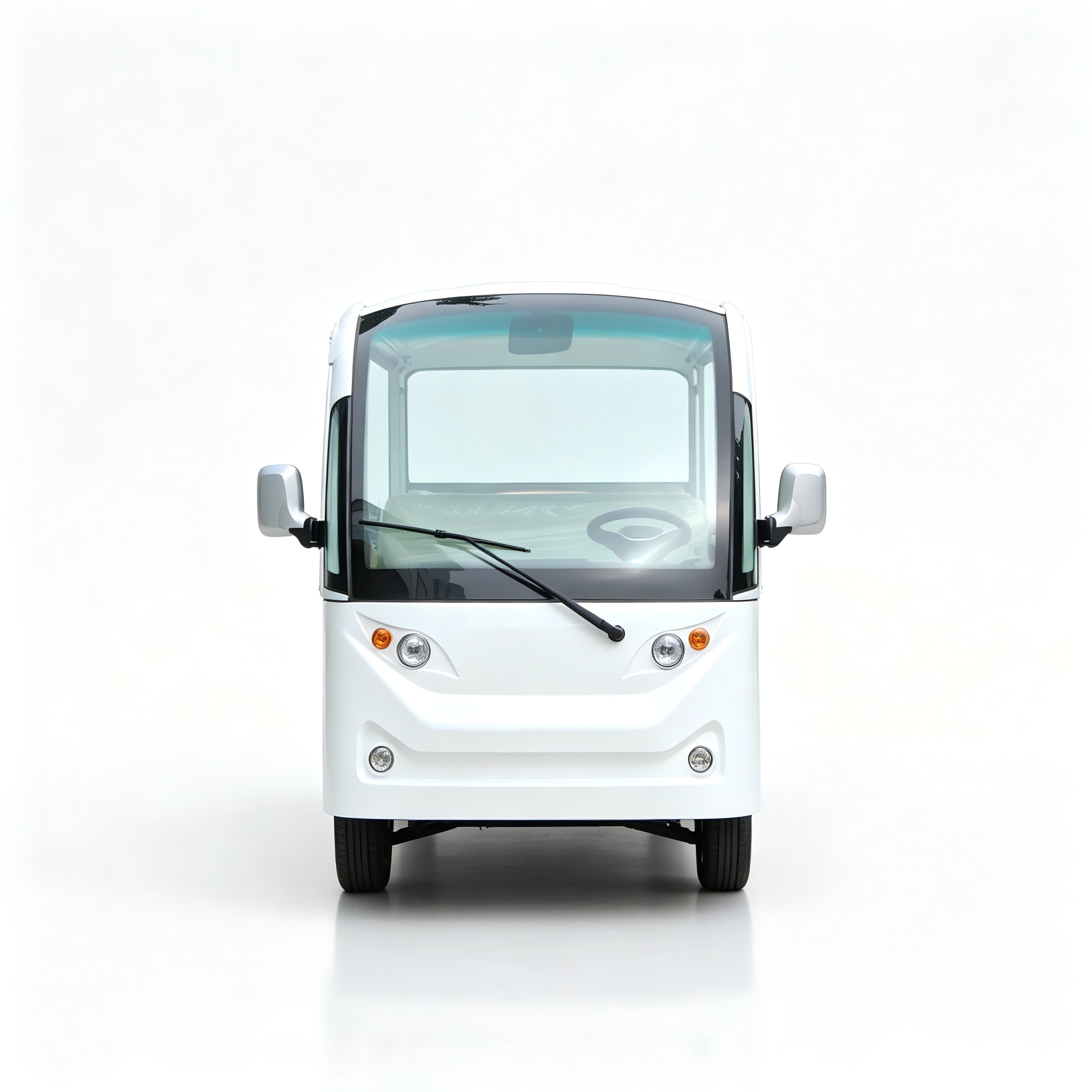

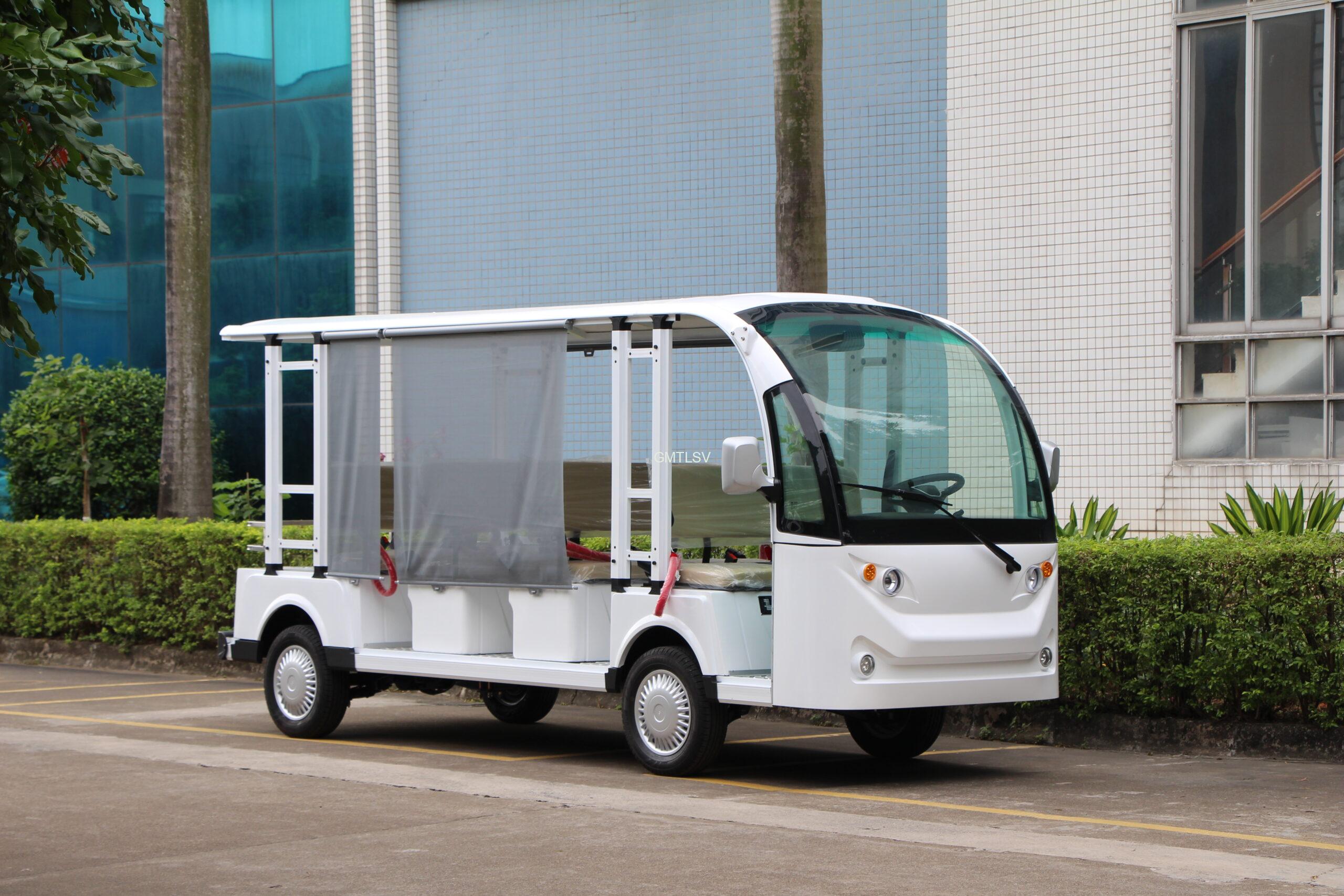

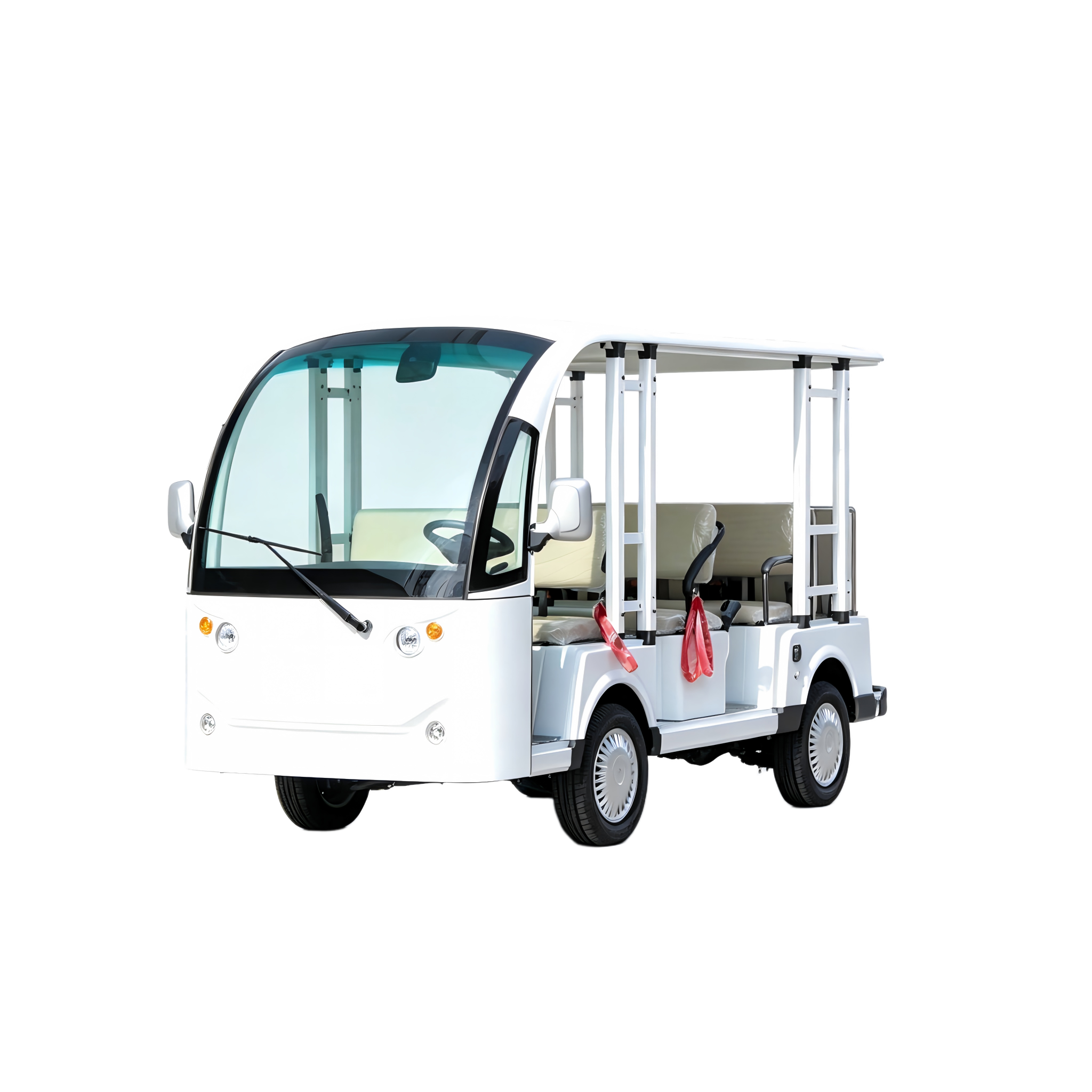

GB-11 Seats Tourist Car Electric Sightseeing Shuttle Bus

The GB-11 is a high-capacity electric sightseeing vehicle engineered for extended tours and heavier passenger loads. With 11 seats, powered by a 12.2 kWh battery, it delivers an impressive 100 km range per charge and a top speed of 30 km/h. The 7.5 kW motor ensures reliable performance on slopes up to 15%. And this vehicle combines durability, efficiency, and passenger comfort.

Ideal for large resorts, zoos, safari parks, golf courses, convention centers, university campuses, and industrial parks, it excels at transporting visitors and staff over longer distances in pedestrian-friendly, zero-emission environments.

Share:

Vehicle Configuration

Passenger capacity11 seats
Max.Speed30km/h
Battery spec12*6V/170Ah Lead-acid Batteries
Endurance Mileage100km
Climbing Ability(loaded)15%
Min.Clearance140mm
Curb Weight1200kg
L×W×H4650x1510x2120mm
Braking Distance≤6.0m

Min.Turning Radius

≤6.5m

MotorAC7.5KW 72V
Controller72V 400A controller
Body|Chassis

High-strength composite material body

High-strength steel frame-type longitudinal beam chassis

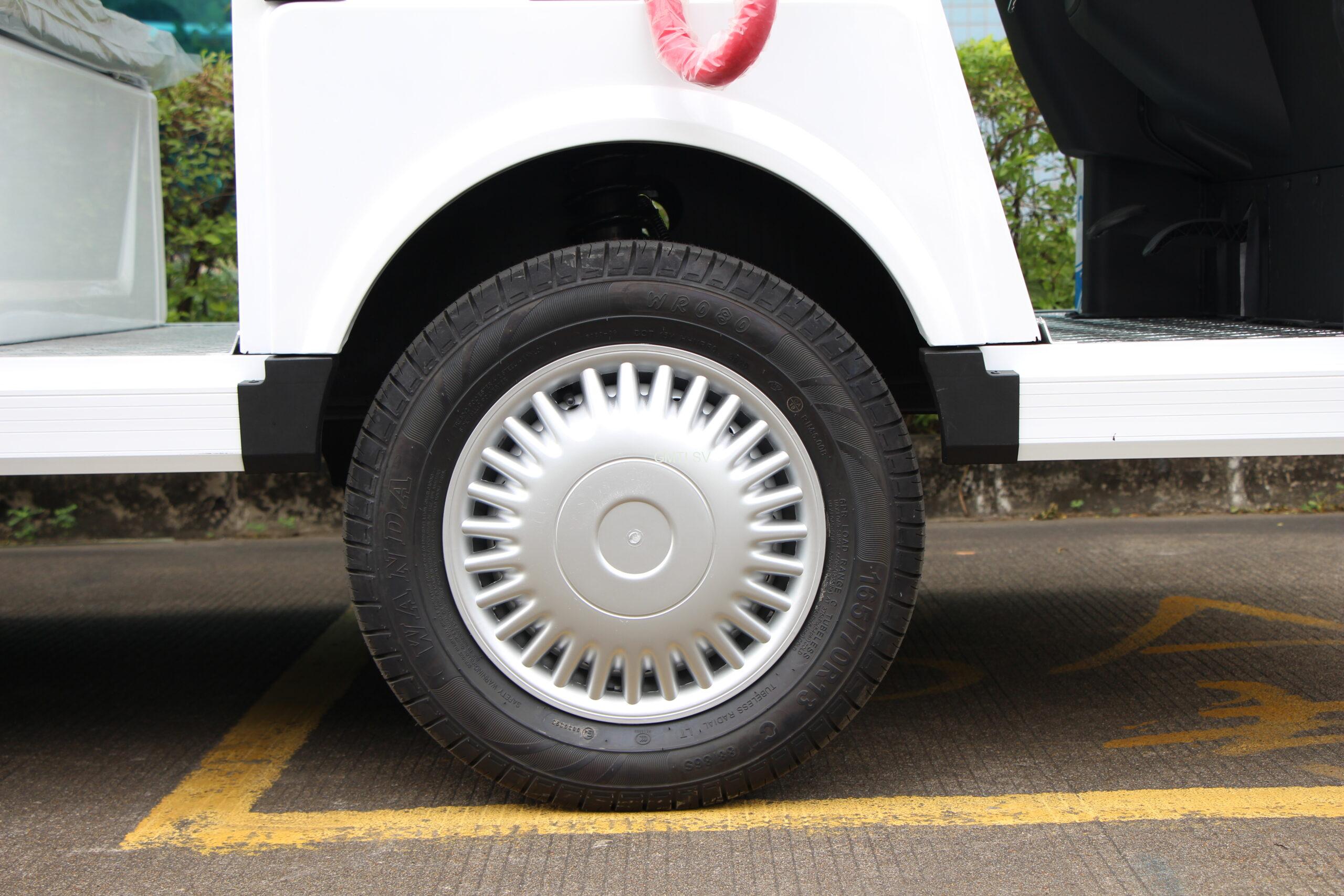

TiresVacuum radial tires 165/70R13 with steel rims
Brake system

Front ventilated discs and rear drum hydraulic dual circuit brakes + handbrake parking with

vacuum-assisted braking system

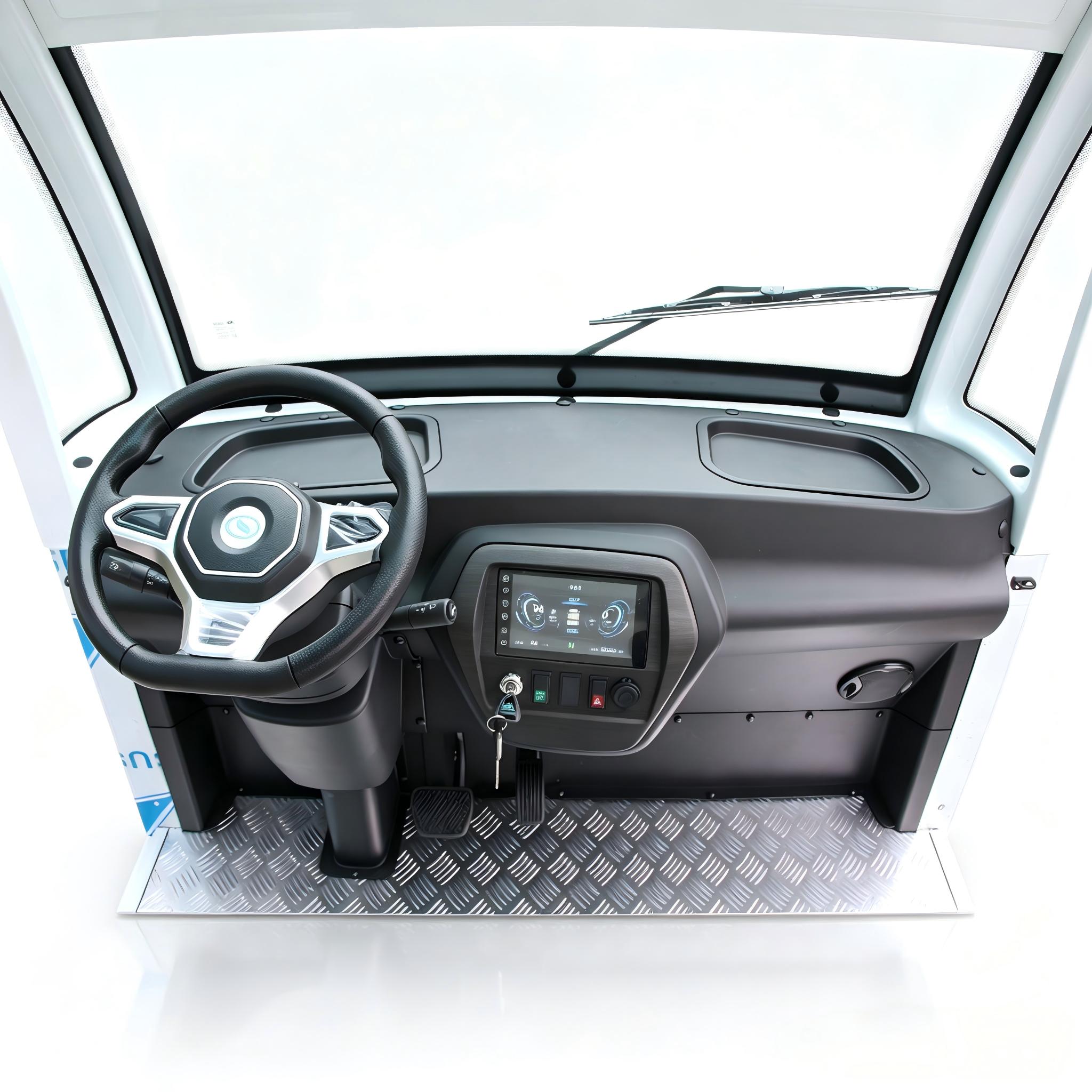

SteeringDual push rack and pinion steering + electric power steering system

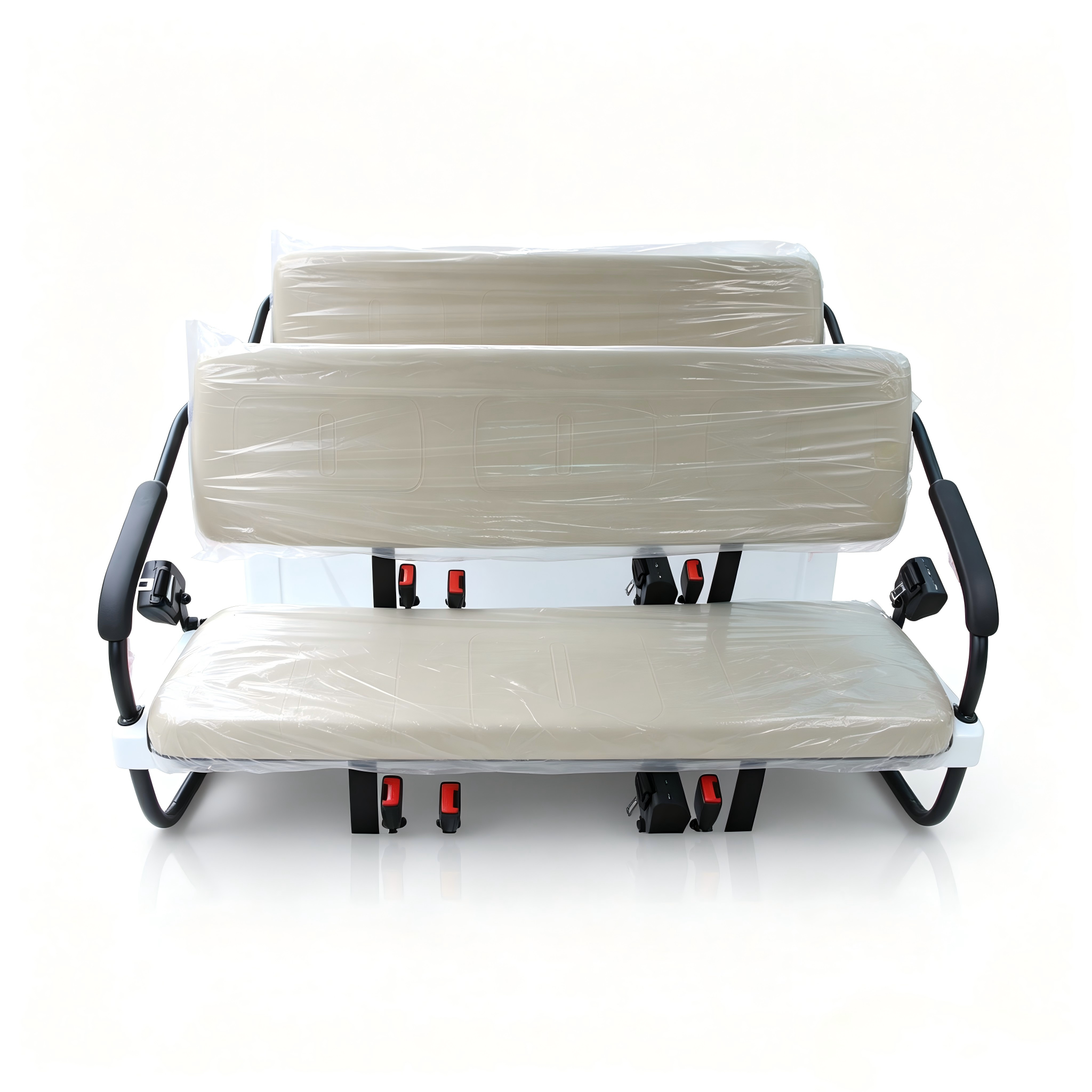

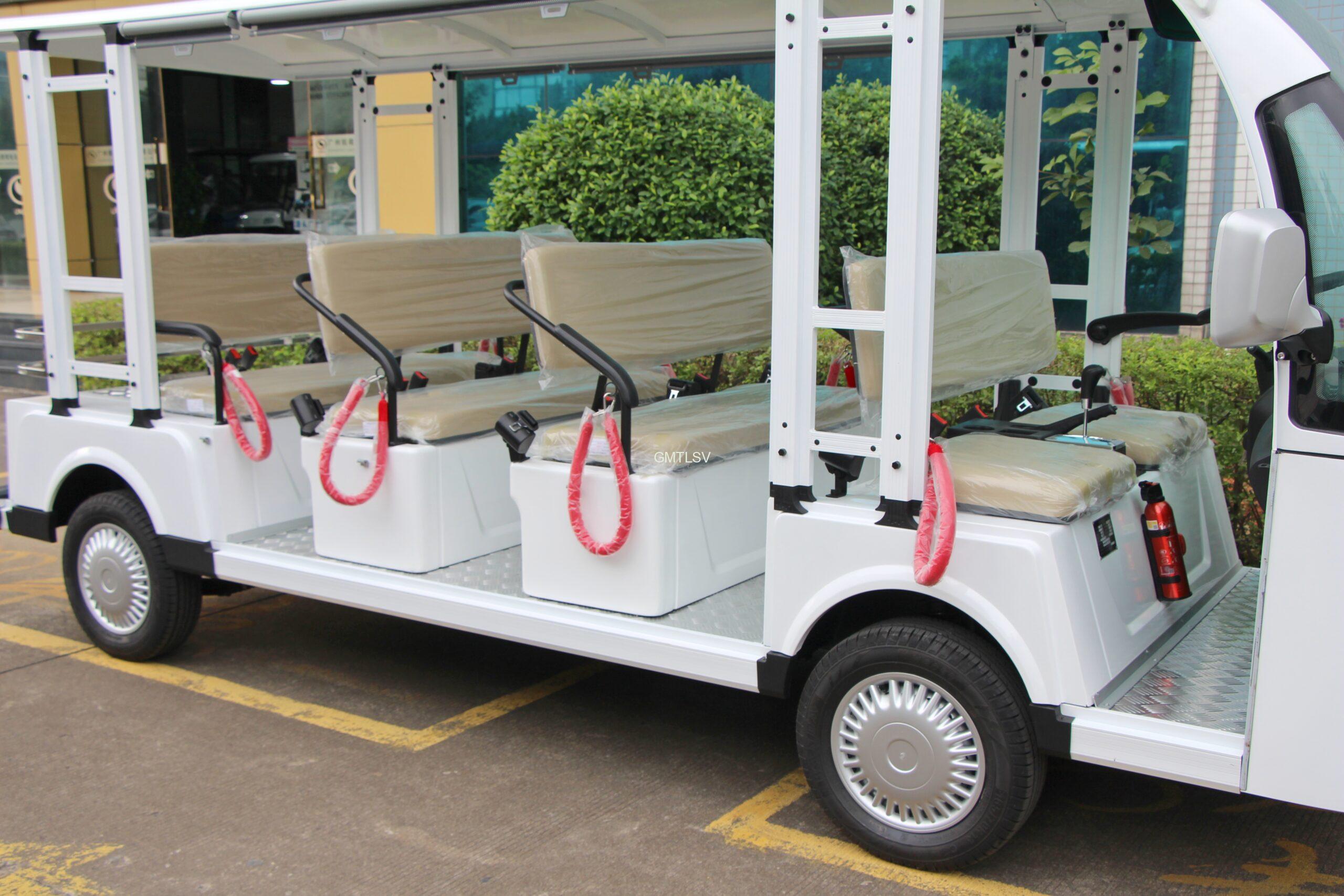

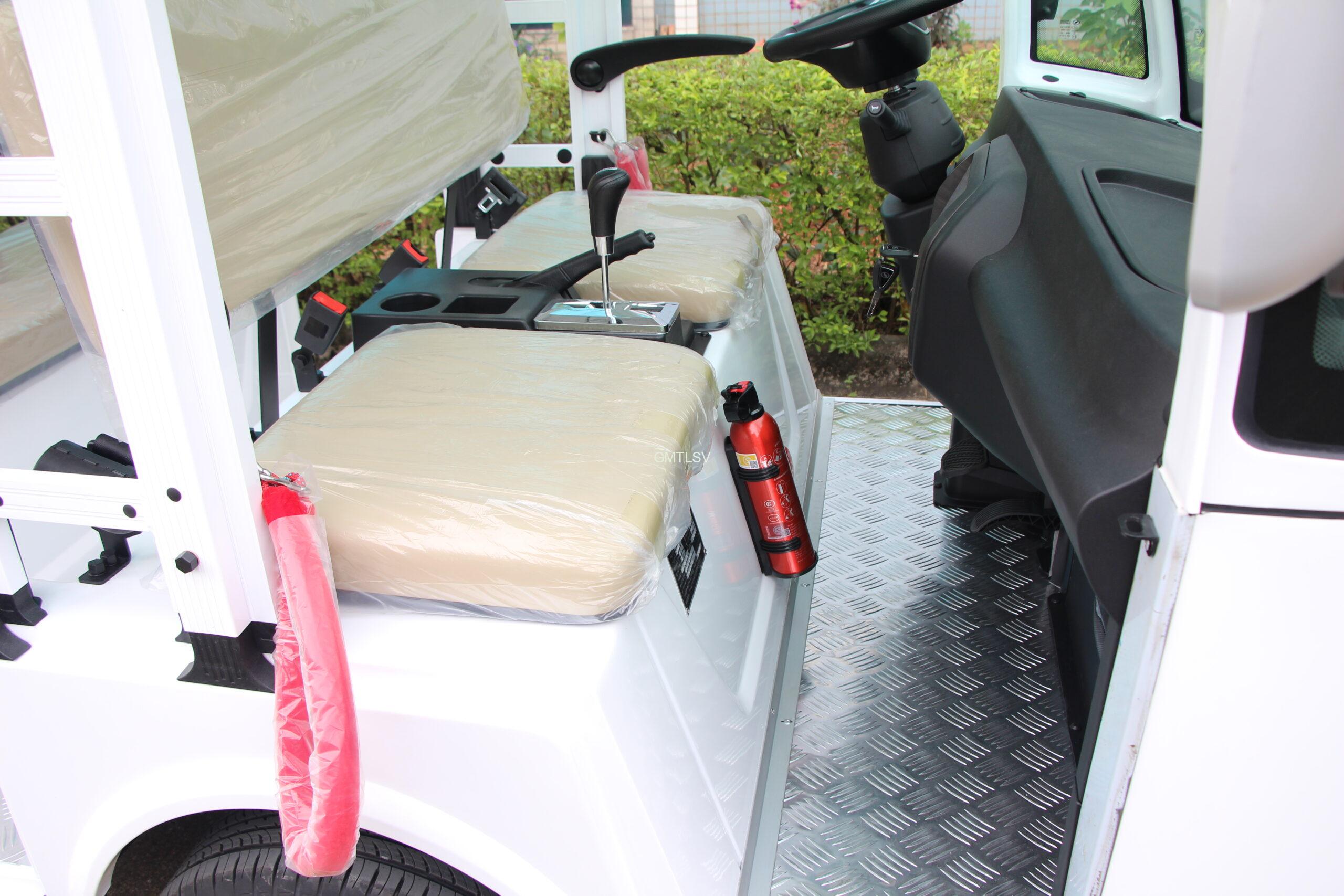

SeatsPU car special seat, ergonomic

Windshield

Automotive-grade laminated glass

Weight 1200 kg
Dimensions 465 × 151 × 212 cm
