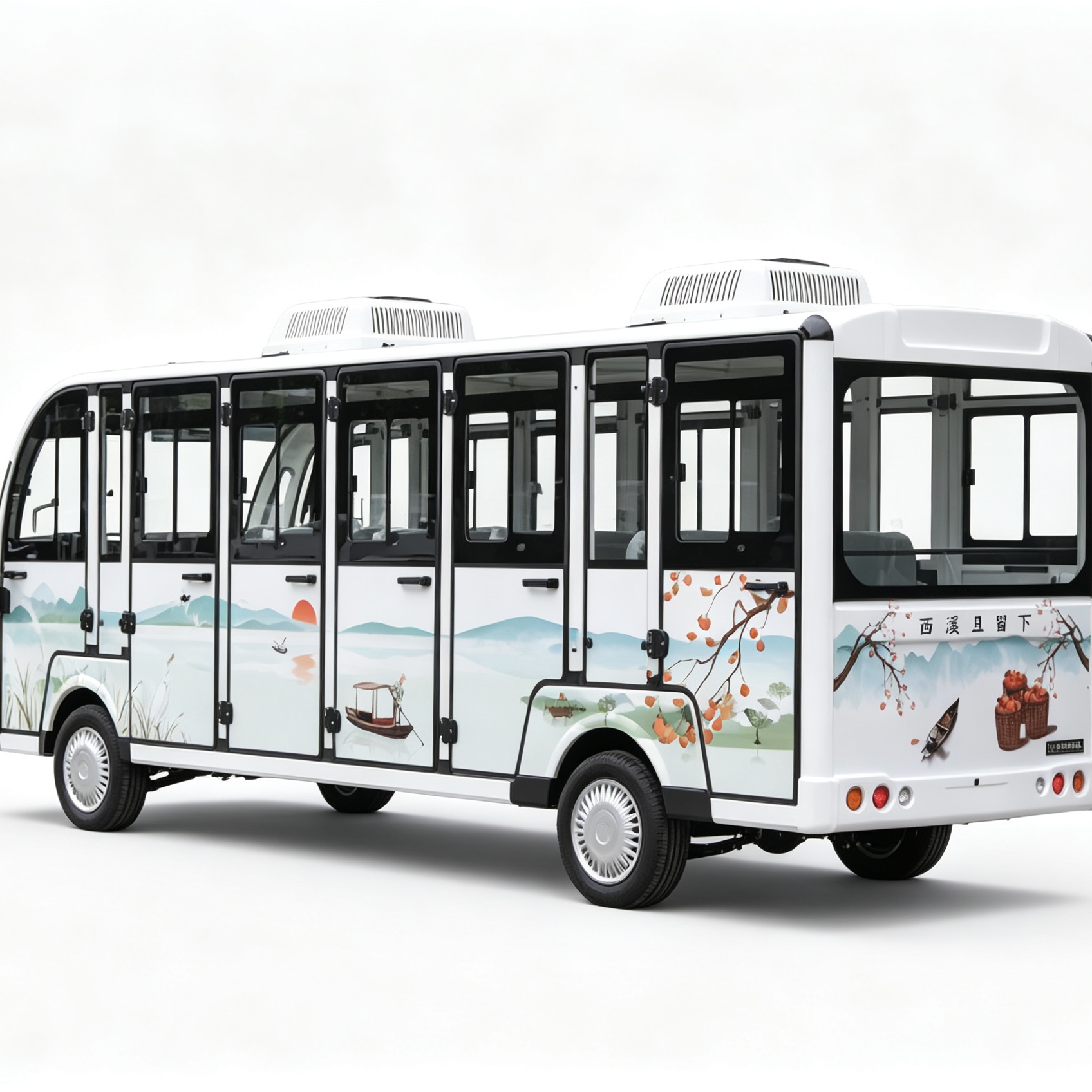

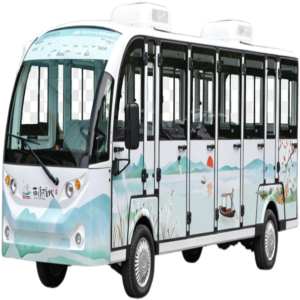

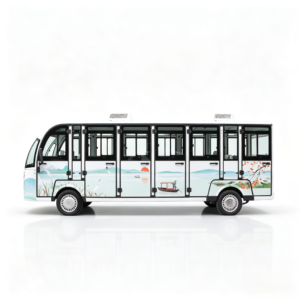

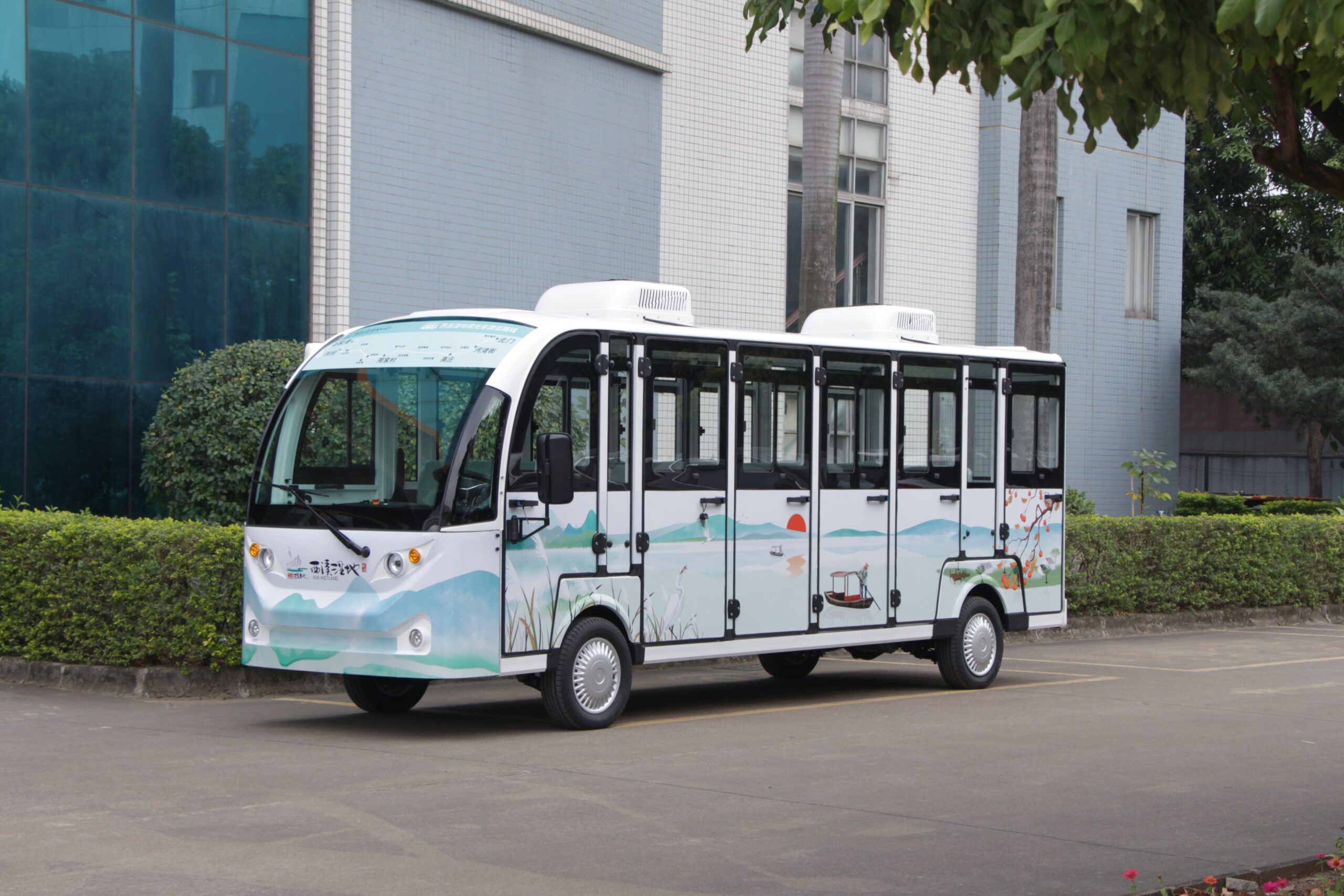

Vehicle Configuration
| Passenger capacity | 17 seats | ||
| Max.Speed | 30km/h | ||
| Battery spec | 8*6V/170Ah Lead-acid Batteries | ||
| Endurance Mileage | 70km | ||
| Climbing Ability(loaded) | 15% | ||
| Min.Clearance | 150mm | ||
| Curb Weight | 1480kg | ||
| L×W×H | 5735x1510x2120mm | ||
| Braking Distance | ≤5.0m | ||
|
Min.Turning Radius |
≤4.5m |
| Motor | AC5KW 48V | ||
| Controller | 48V 350A controller | ||
| Body|Chassis | High-strength composite material body High-strength steel frame-type longitudinal beam chassis | ||

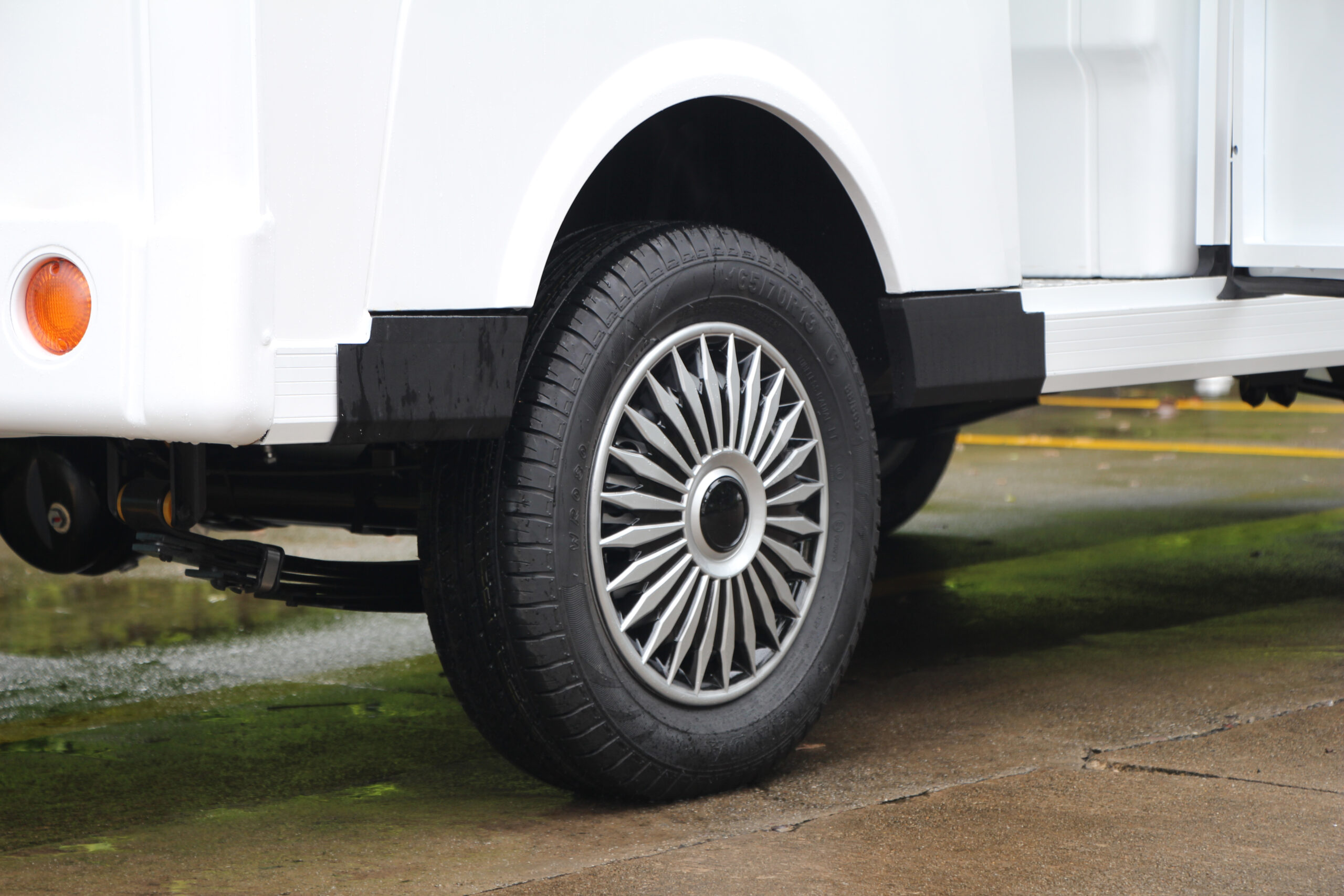

| Tires | Vacuum radial tires 165/70R13 with steel rims | ||
| Brake system | Front ventilated discs and rear drum hydraulic dual circuit brakes + handbrake parking with vacuum-assisted braking system | ||
| Steering | Dual push rack and pinion steering + electric power steering system | ||

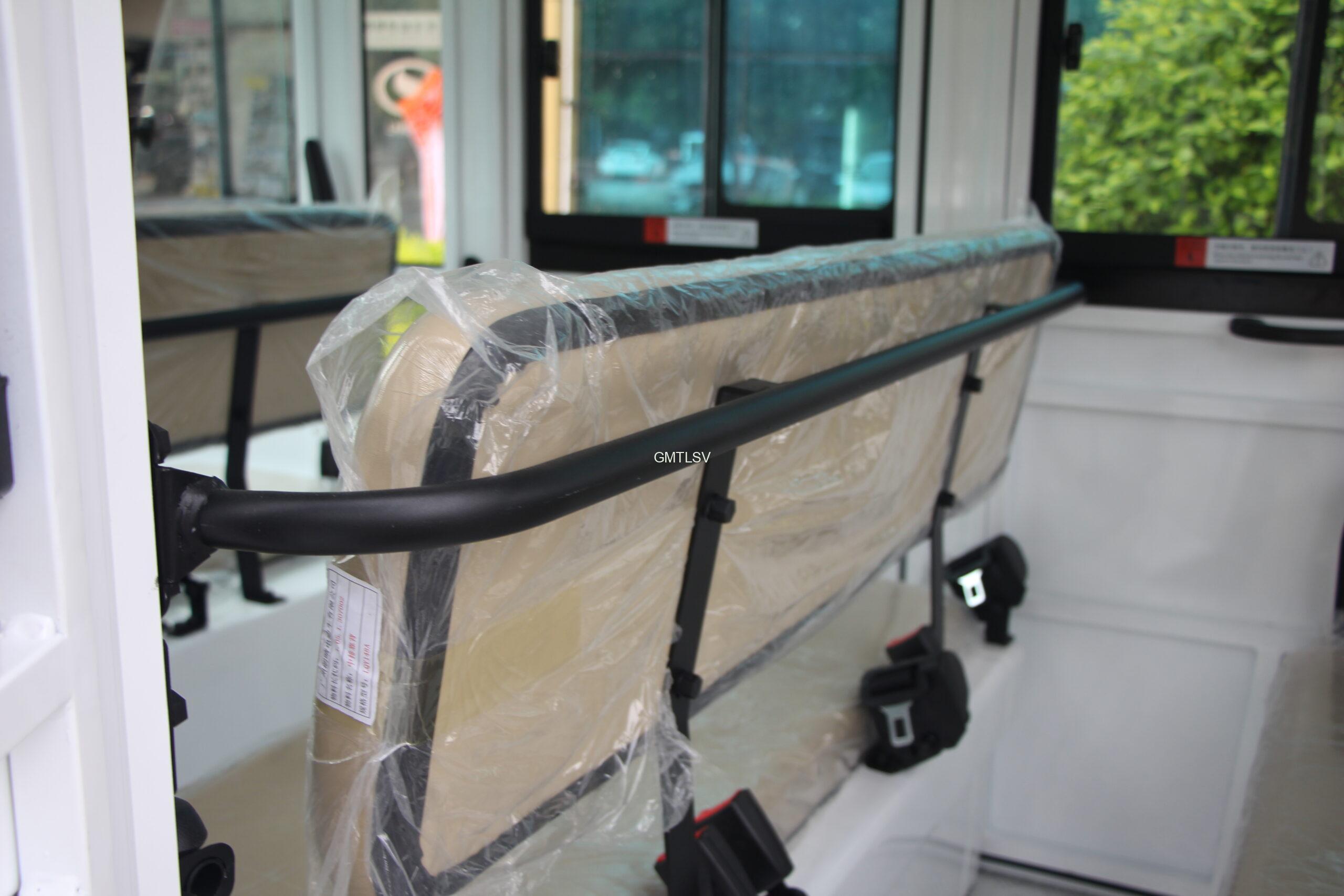

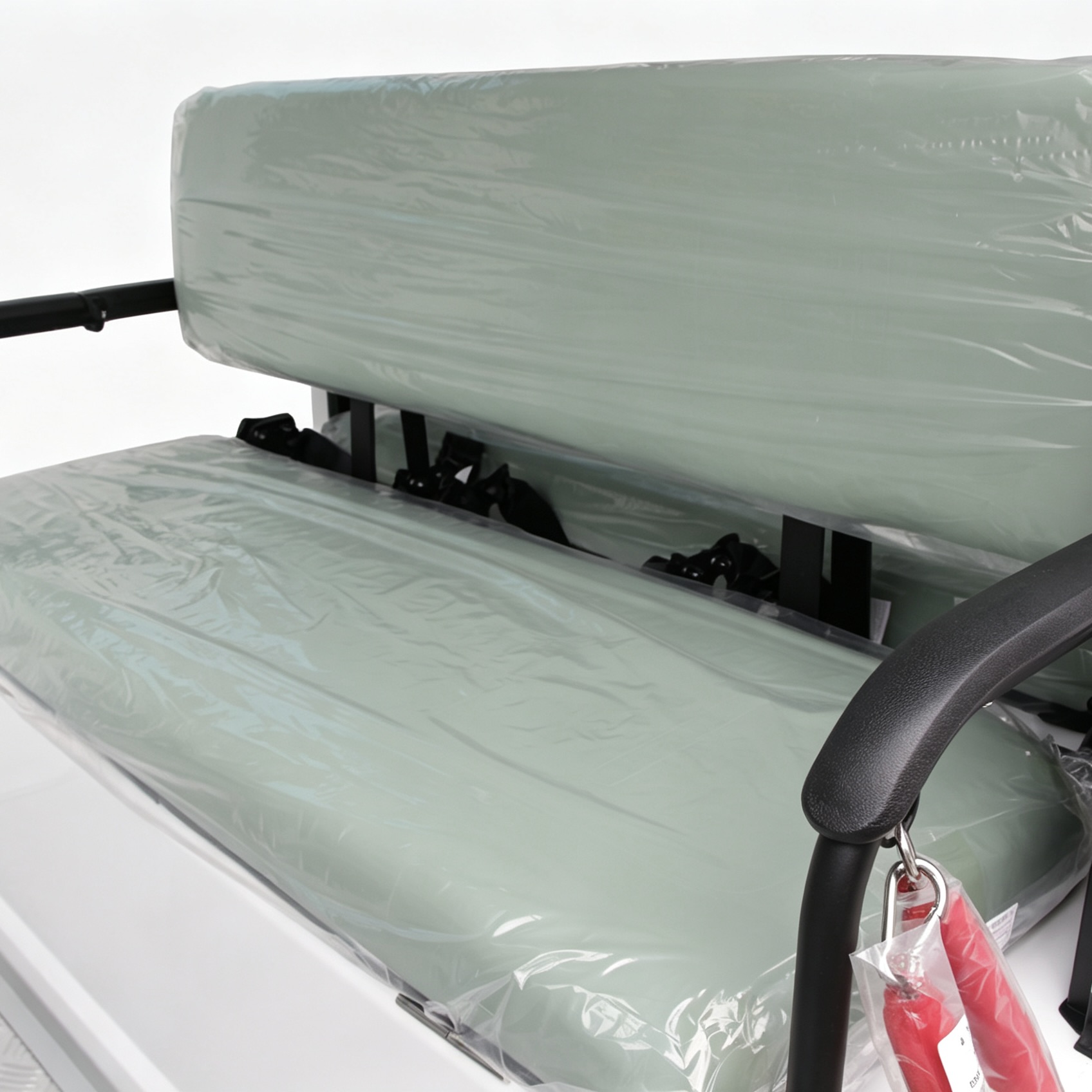

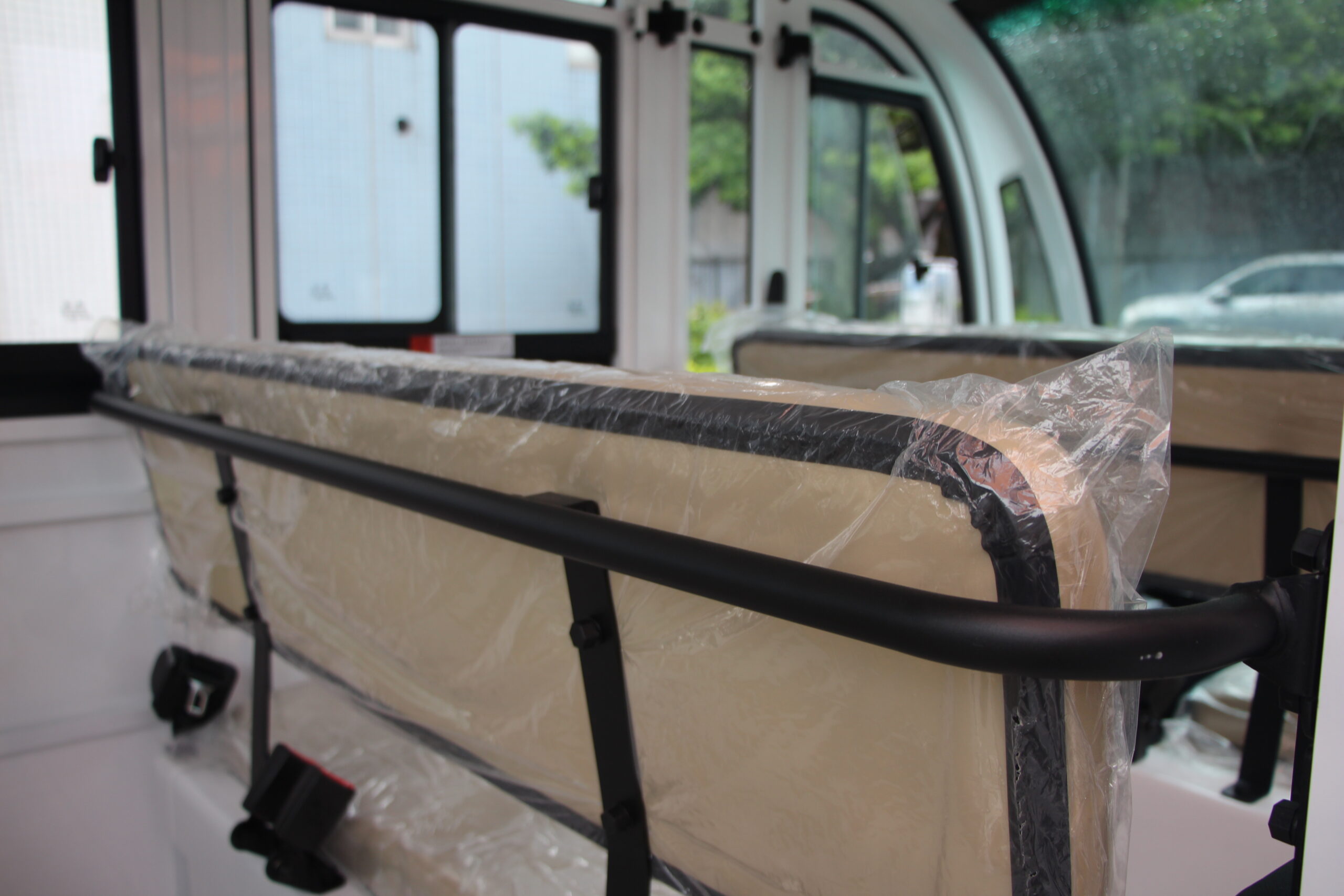

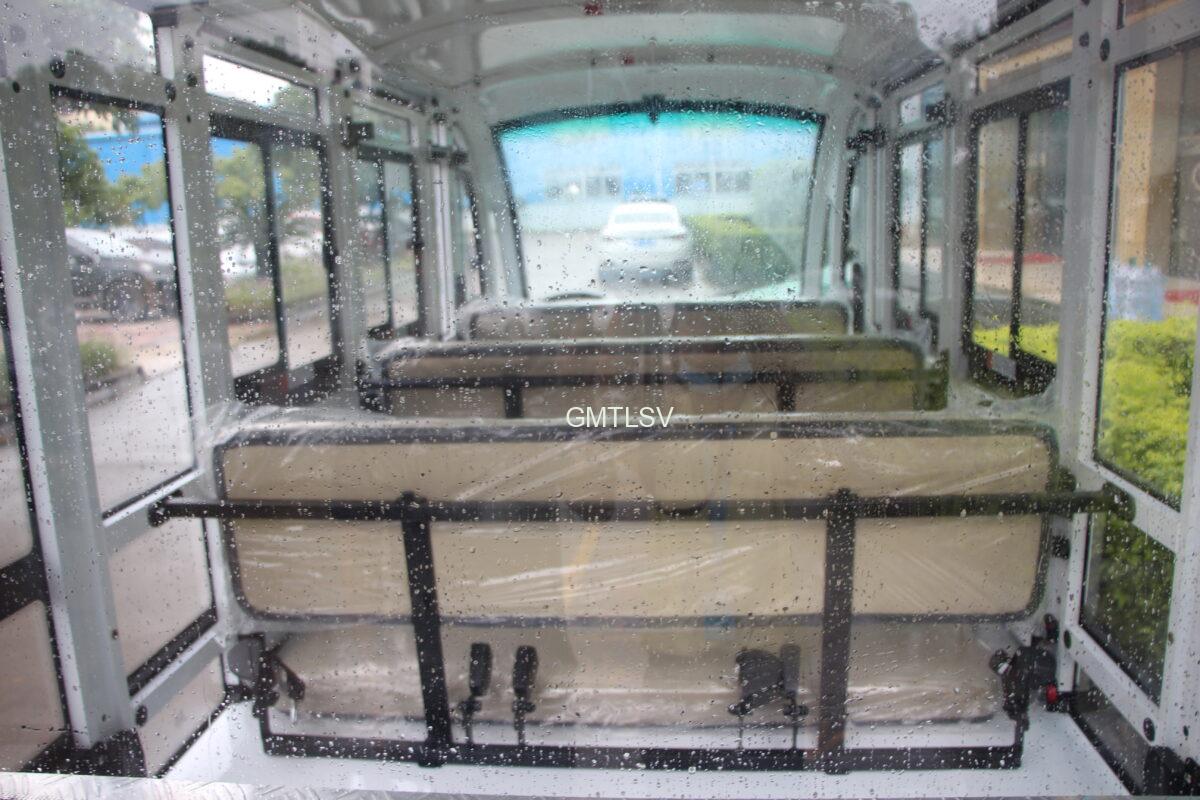

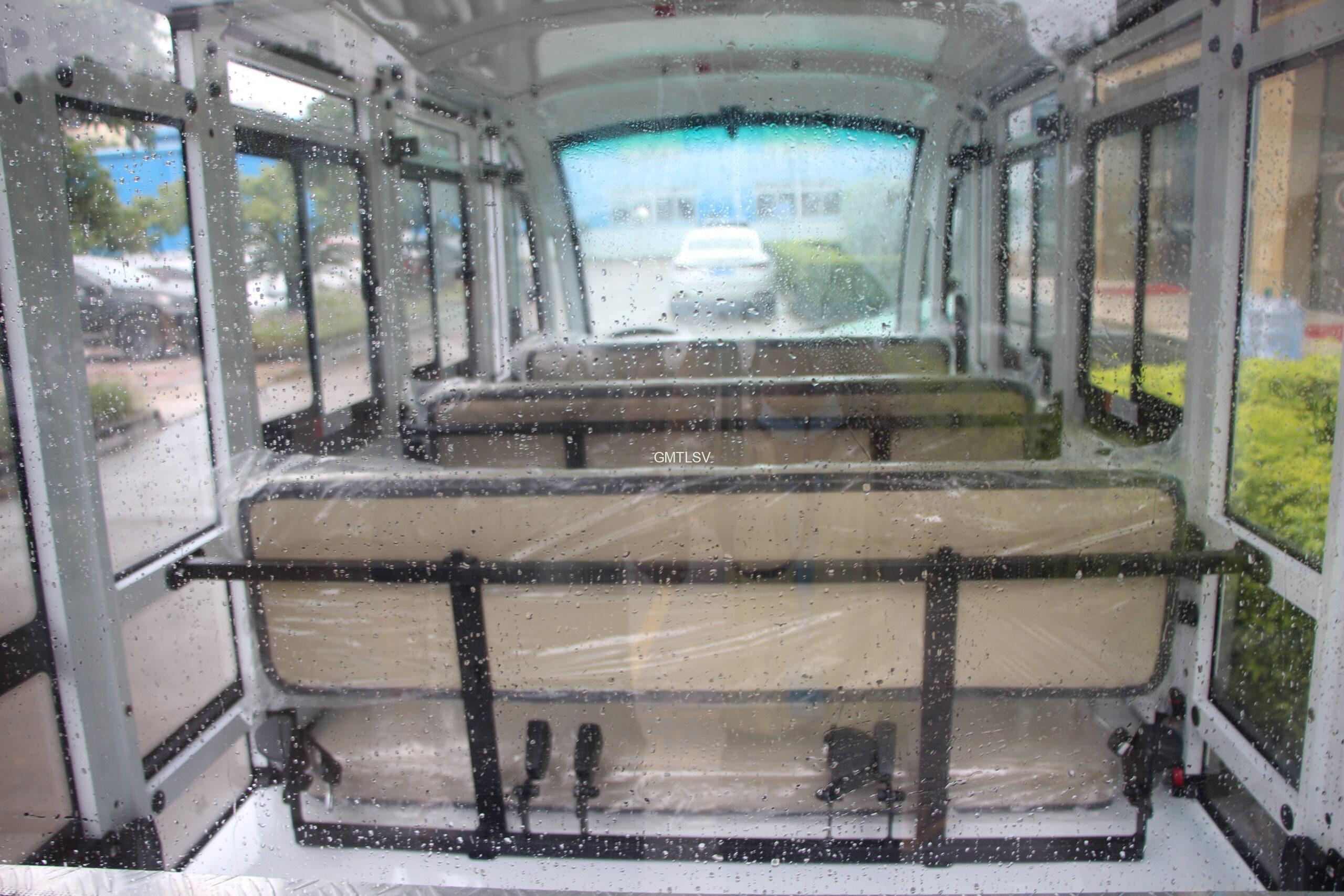

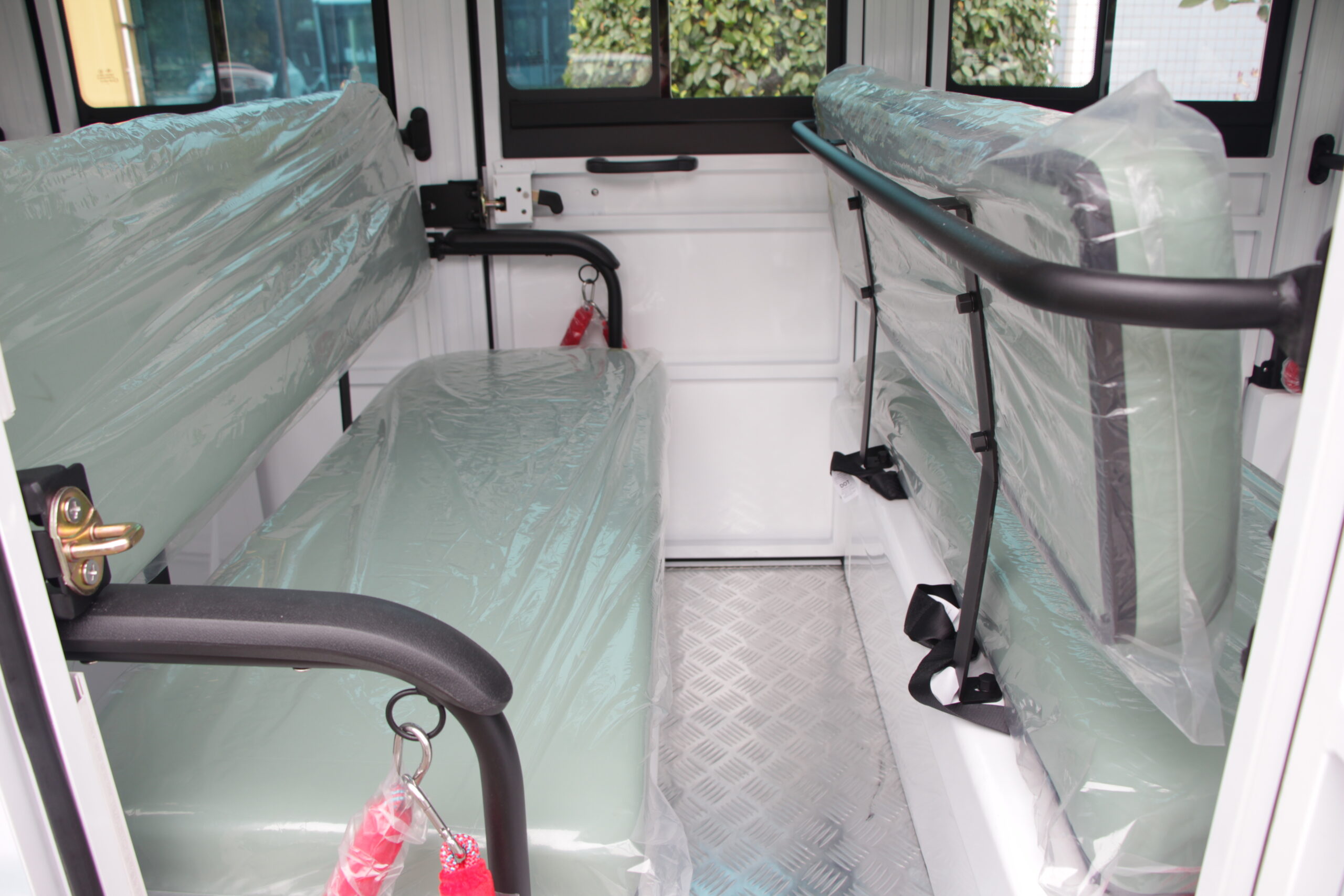

| Seats | PU car special seat, ergonomic | ||

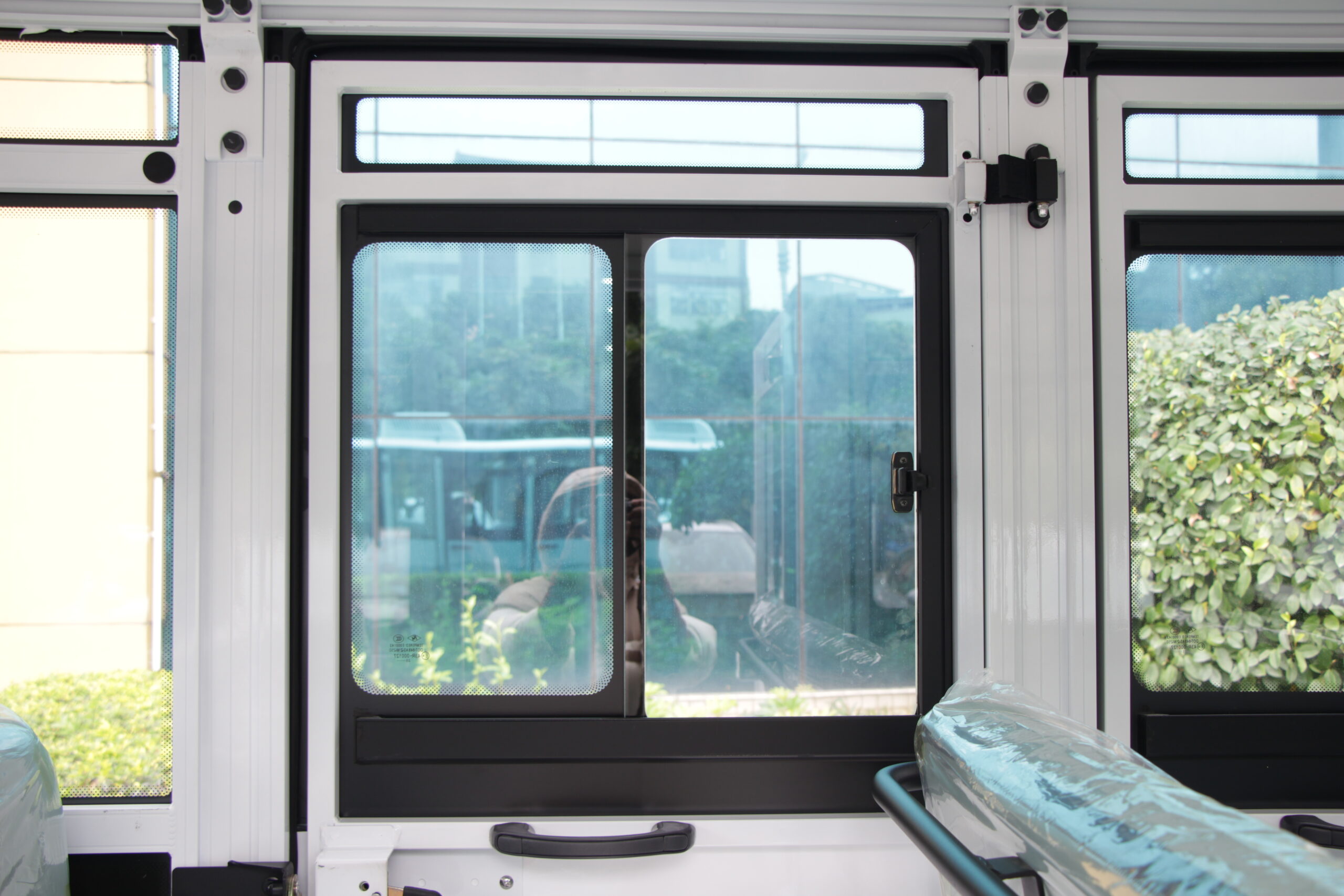

Windshield | Automotive-grade laminated glass |
