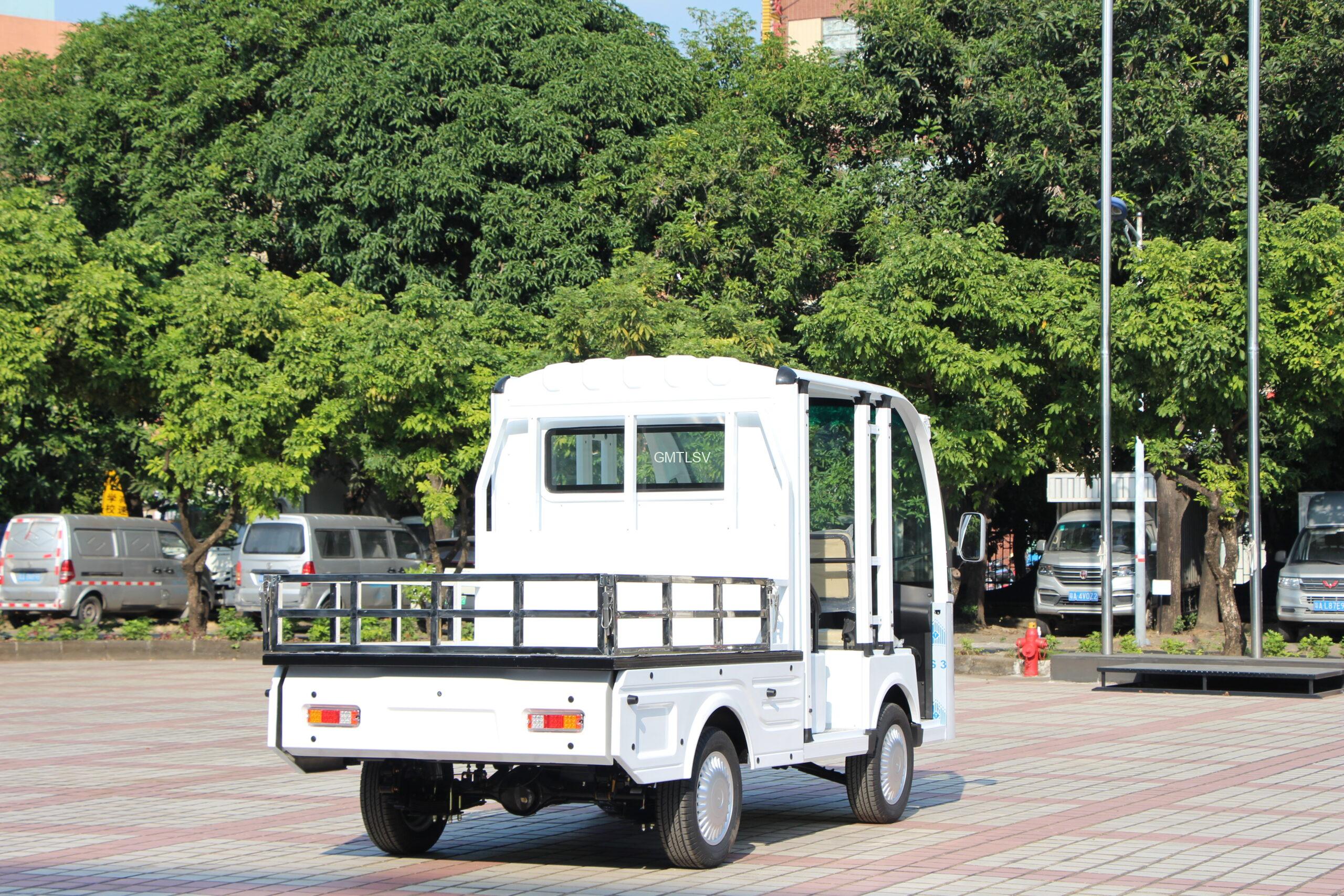

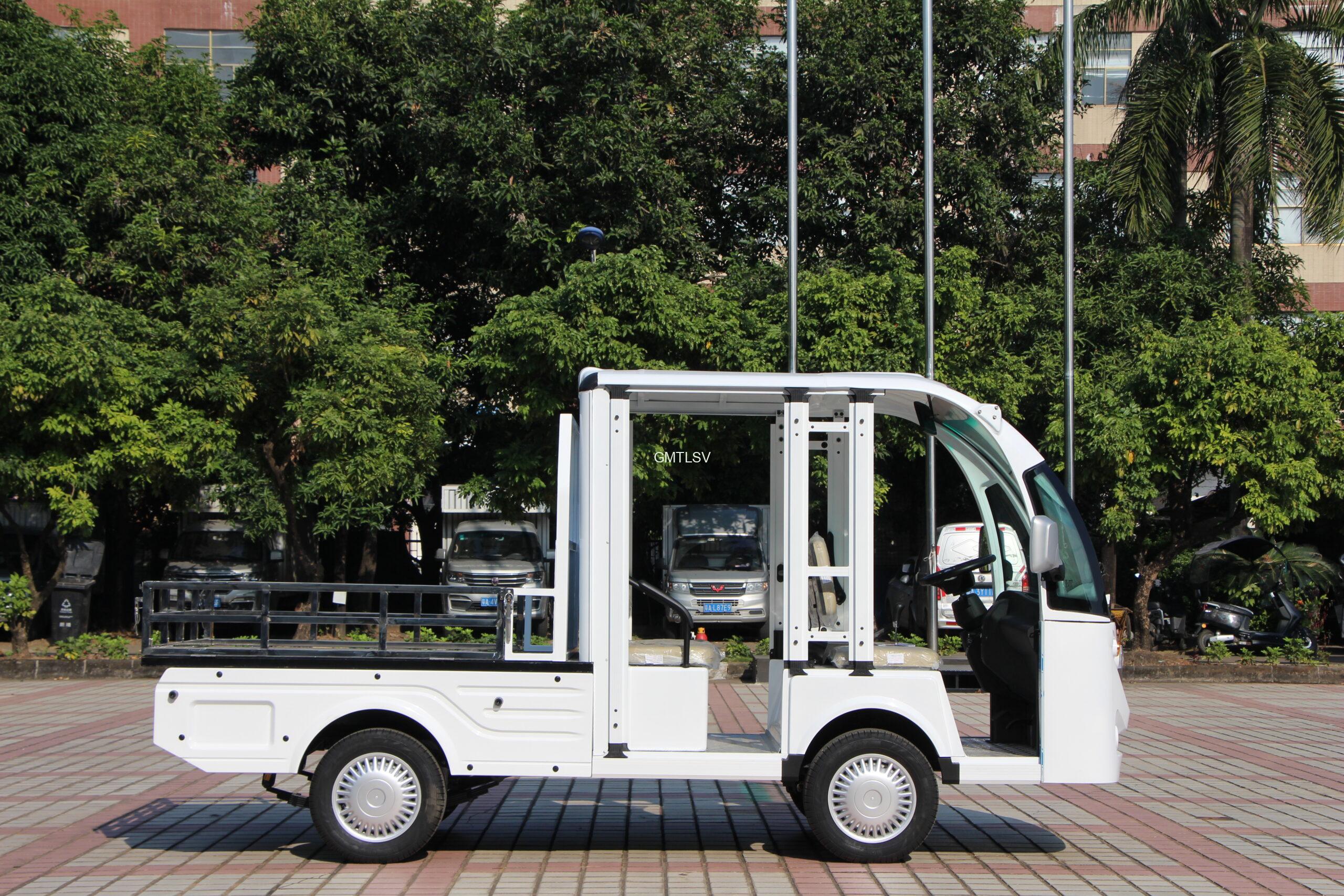

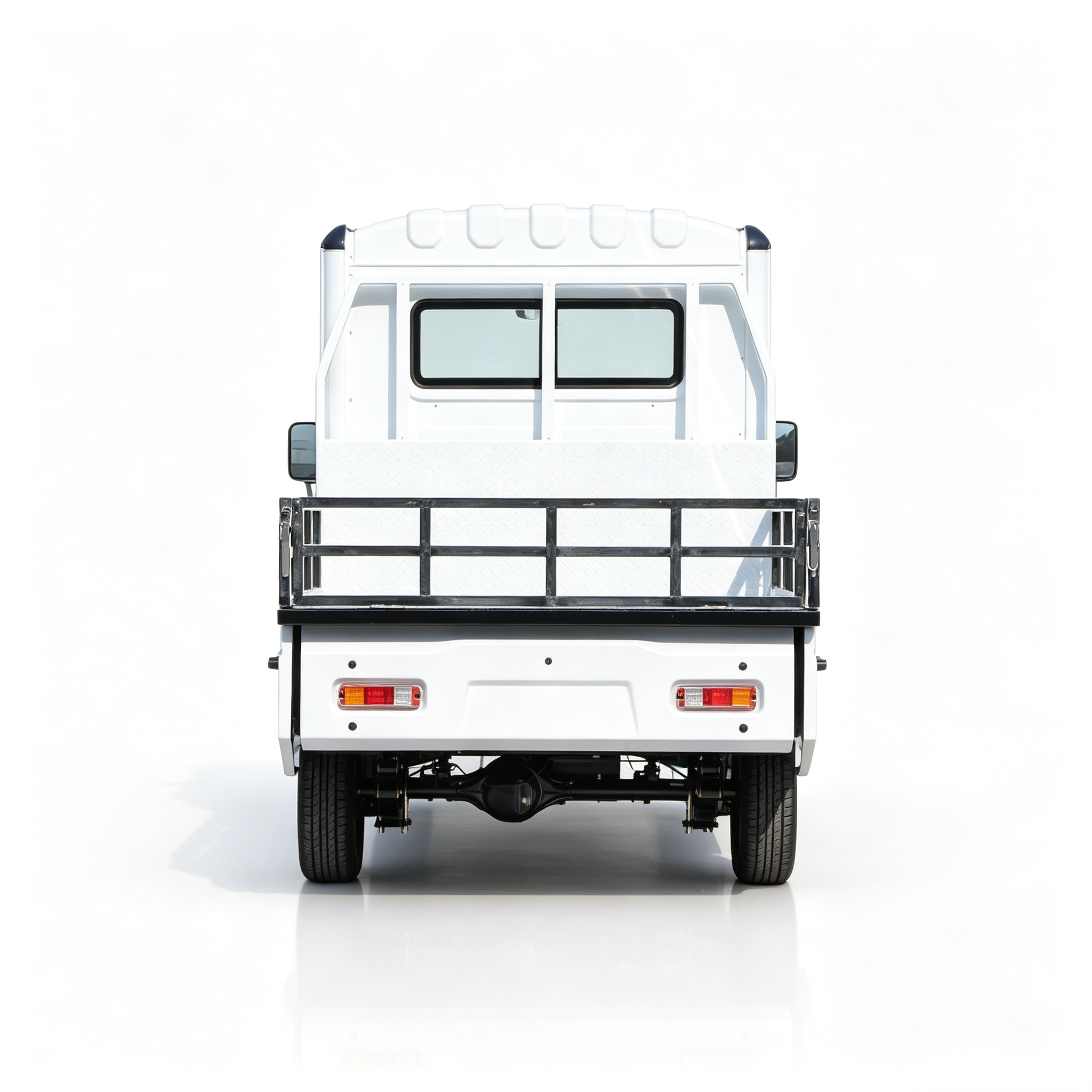

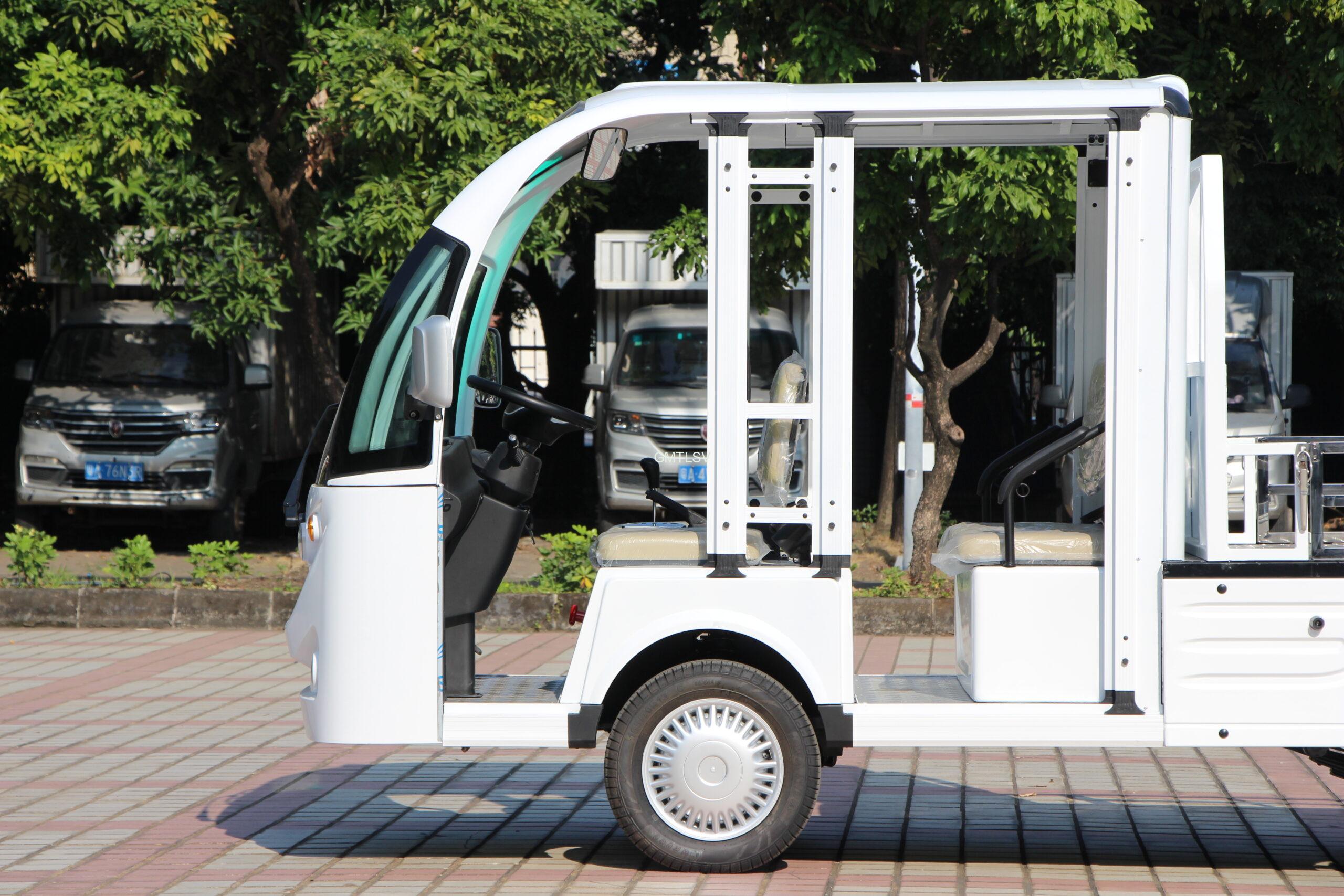

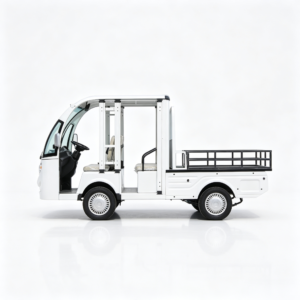

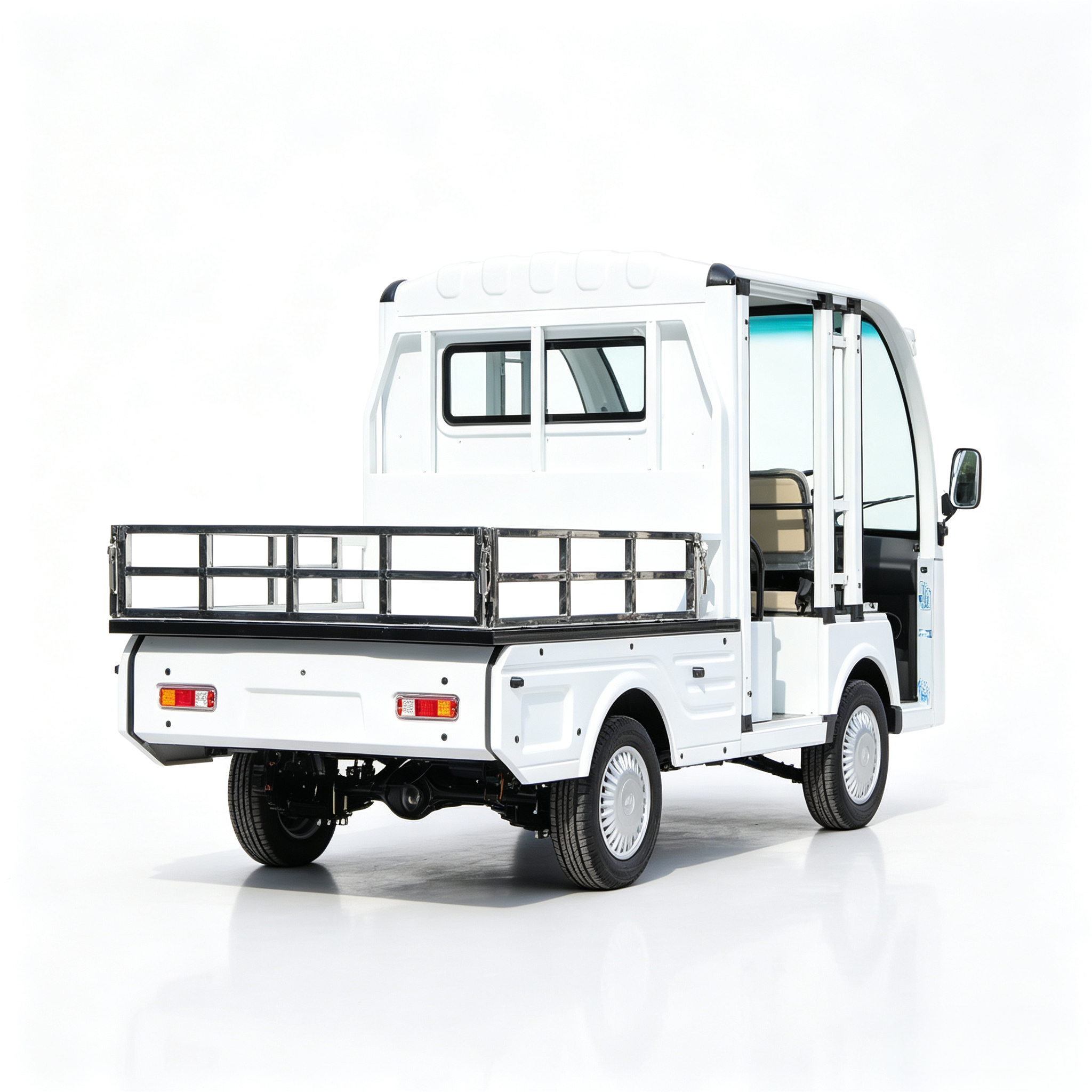

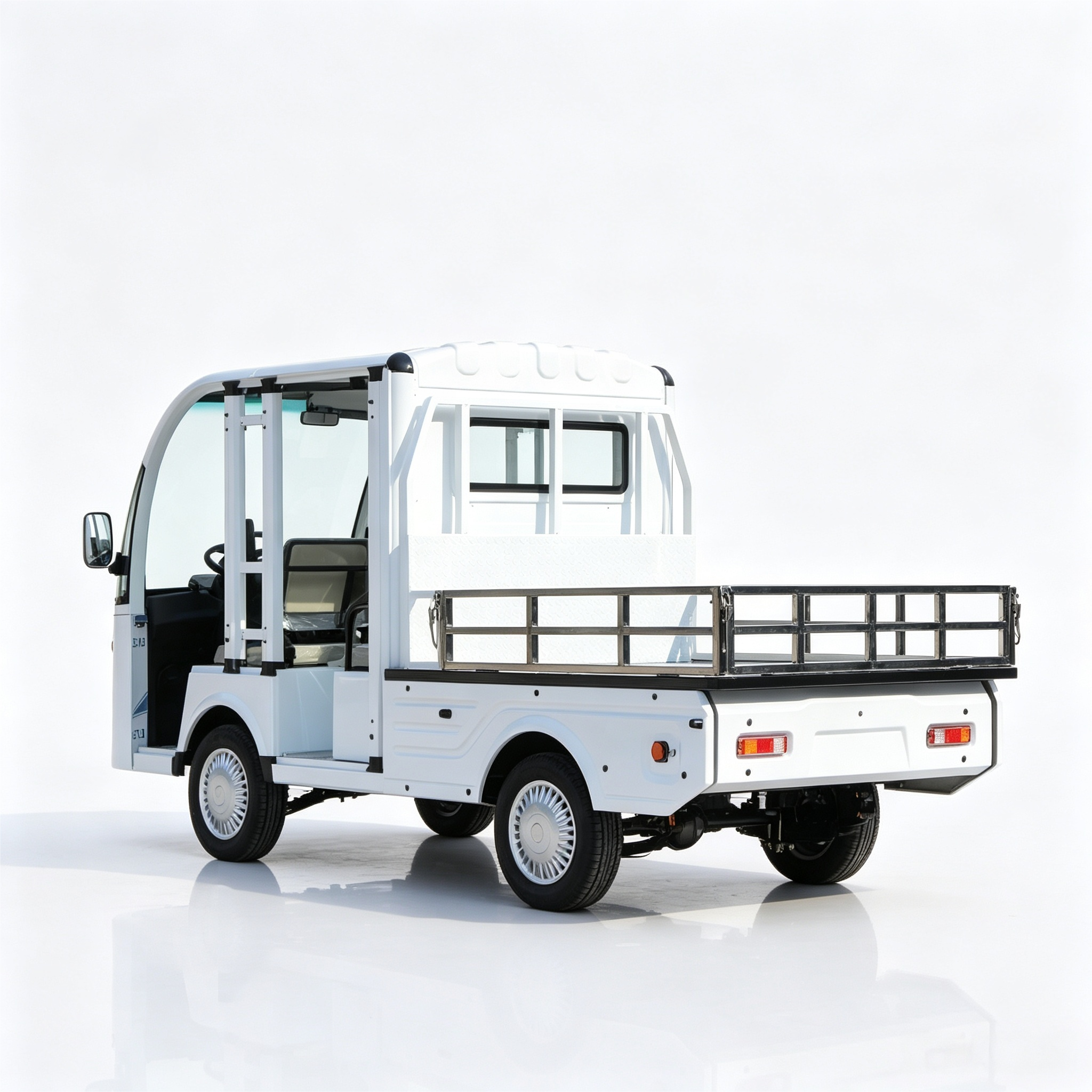

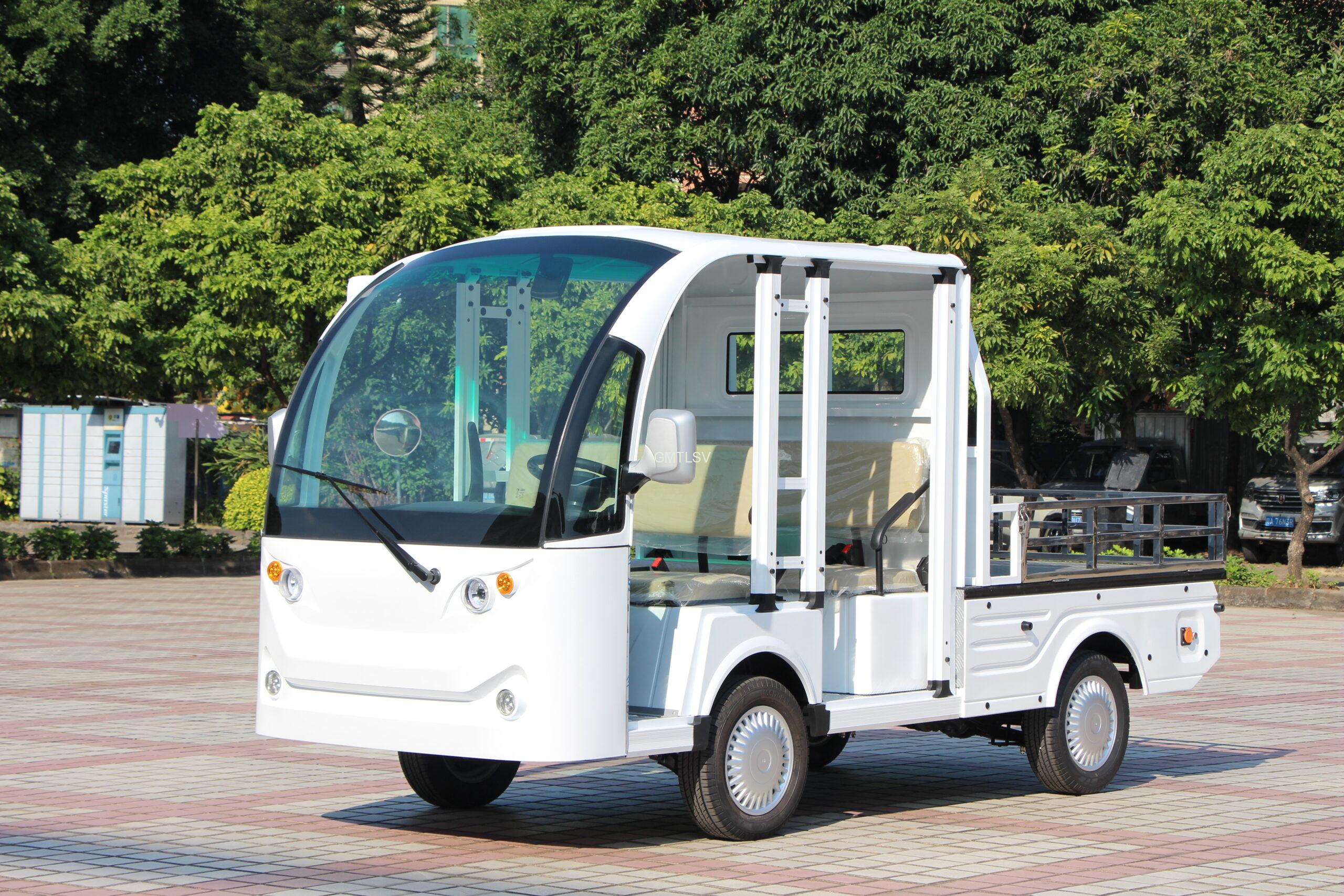

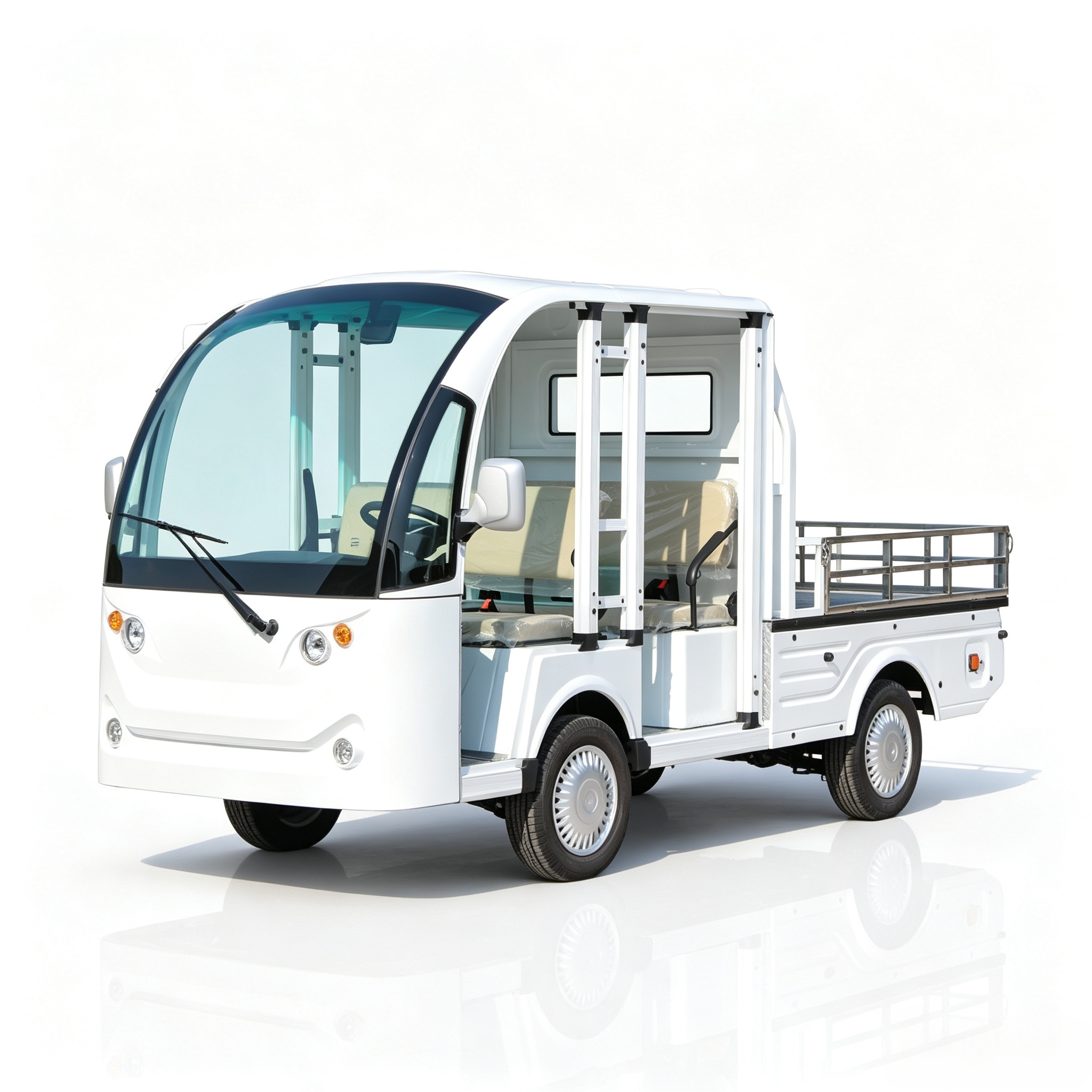

GT-1-2 Electric Box Cargo Truck Double-Row Seat Electric Utility Vehicle

The GT-1-2 Double-row Seat Electric Cargo Truck features a practical double-cab design with seating for up to five people, allowing both personnel and cargo to be transported in a single trip. Its enclosed cargo box protects tools, equipment, and supplies from rain and dust, making it suitable for daily operations in all weather conditions. Powered by a reliable 5kW electric motor, it offers a driving range of up to 70 km and a top speed of 30 km/h. The GT1-2 is an ideal solution for factories, industrial parks, airports, campuses, municipal maintenance, farms, and logistics facilities. Combining passenger capacity, cargo protection, low operating costs, and quiet electric performance, it improves work efficiency while providing an environmentally friendly transportation solution for commercial and utility applications.

Share:

Vehicle Configuration

Passenger capacity5 seats
Max.Speed30km/h
Battery spec8*6V/170Ah Lead-acid Batteries
Endurance Mileage70km
Climbing Ability(loaded)15%
Min.Clearance150mm
Curb Weight1110kg

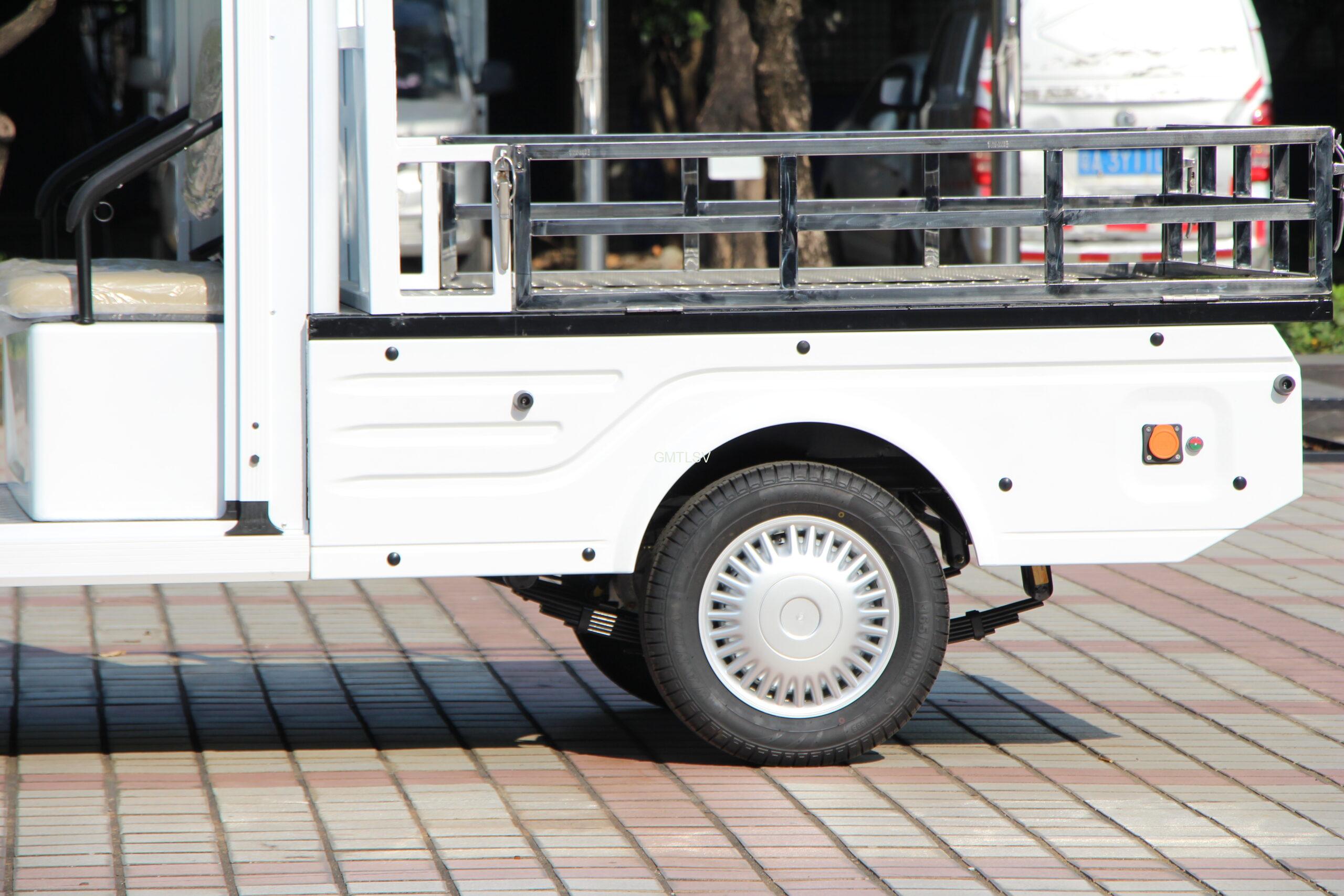

Cargobox size

1730x1500x300mm
Braking Distance≤5.0m

Min.Turning Radius

≤4.5m

MotorAC5KW 48V
Controller48V 350A controller
Body|Chassis

High-strength composite material body

High-strength steel frame-type longitudinal beam chassis

TiresVacuum radial tires 165/70R13 with steel rims
Brake system

Front ventilated discs and rear drum hydraulic dual circuit brakes + handbrake parking with

vacuum-assisted braking system

SteeringDual push rack and pinion steering + electric power steering system

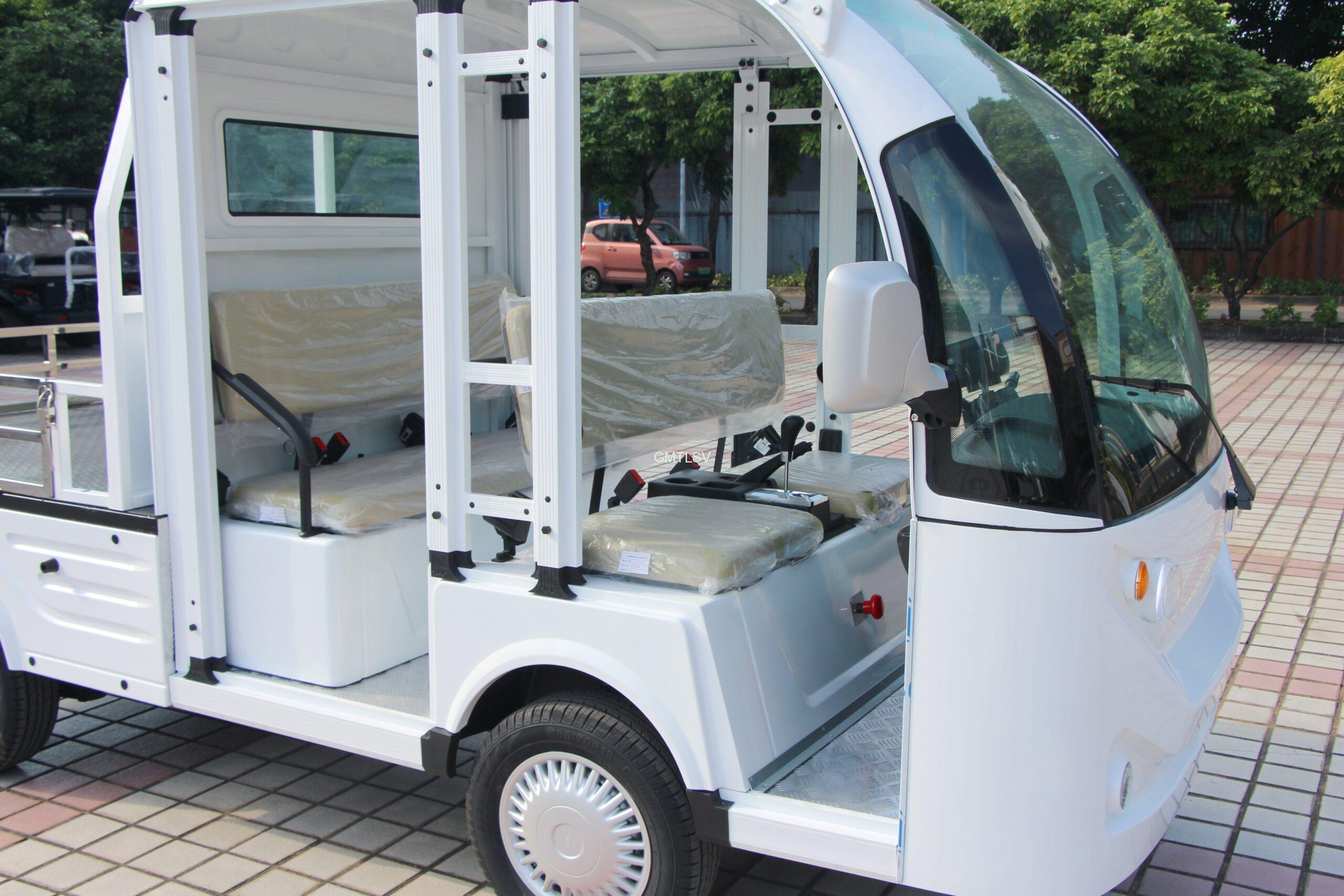

SeatsPU car special seat, ergonomic

Windshield

Automotive-grade laminated glass

Weight 1110 kg
Dimensions 415 × 150 × 209 cm
