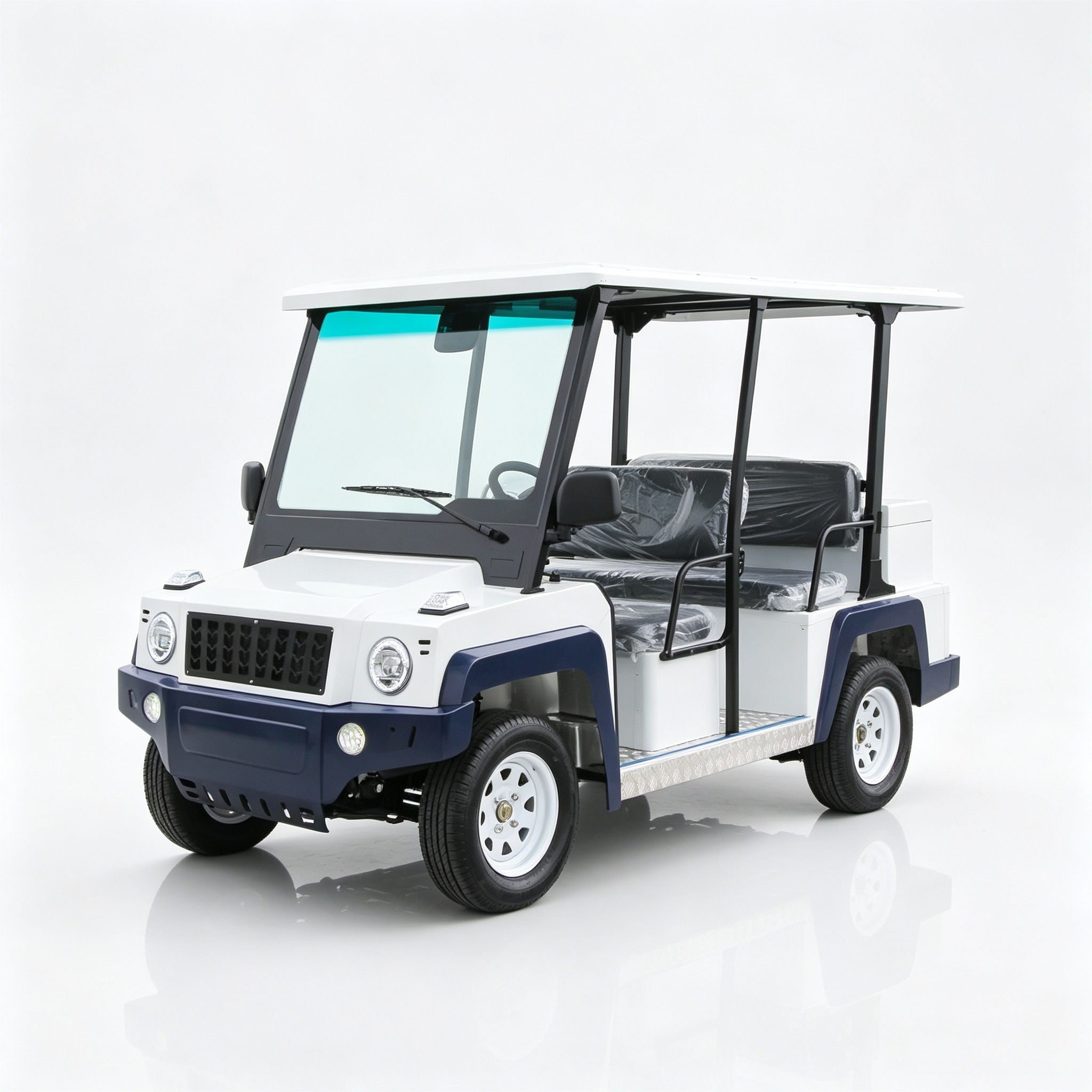

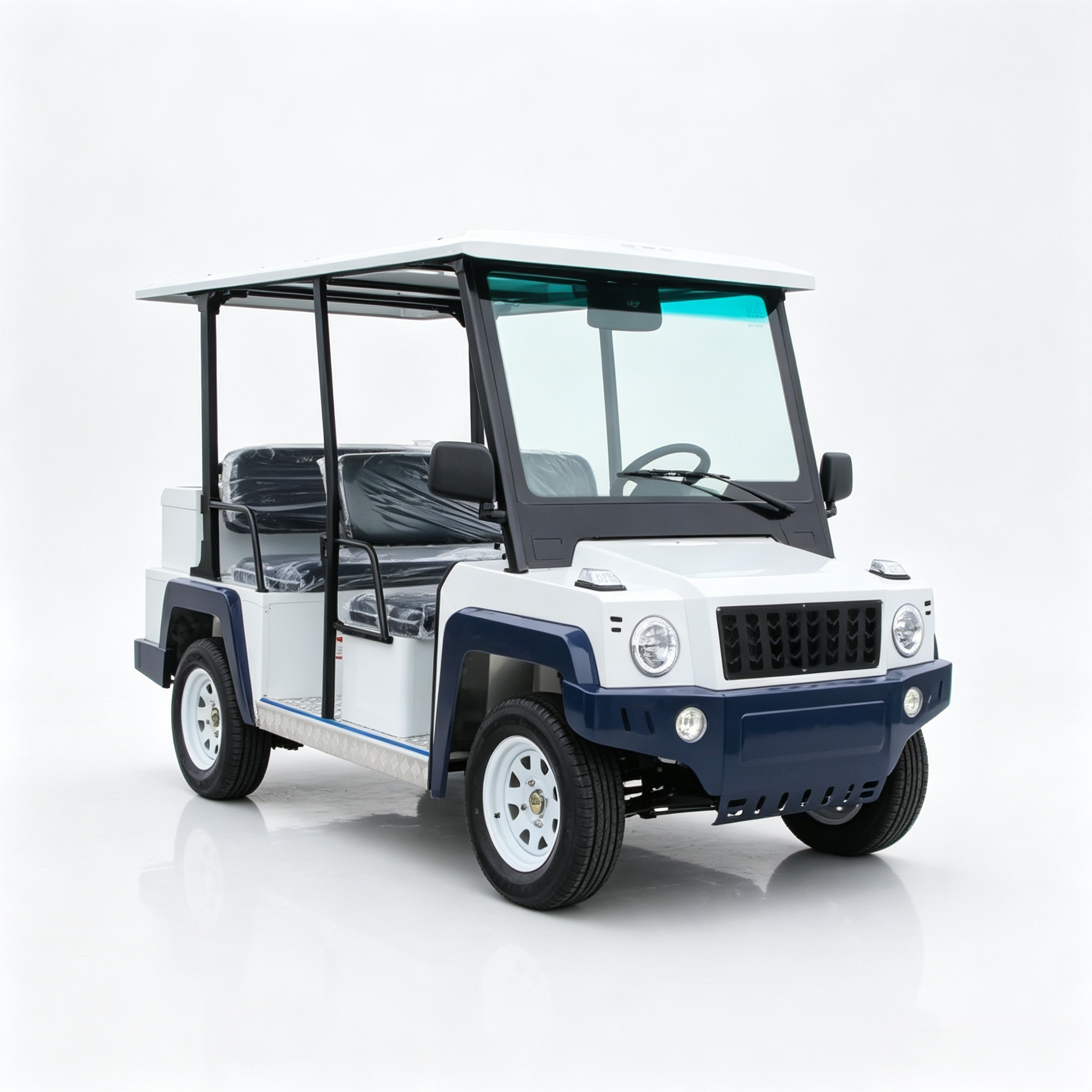

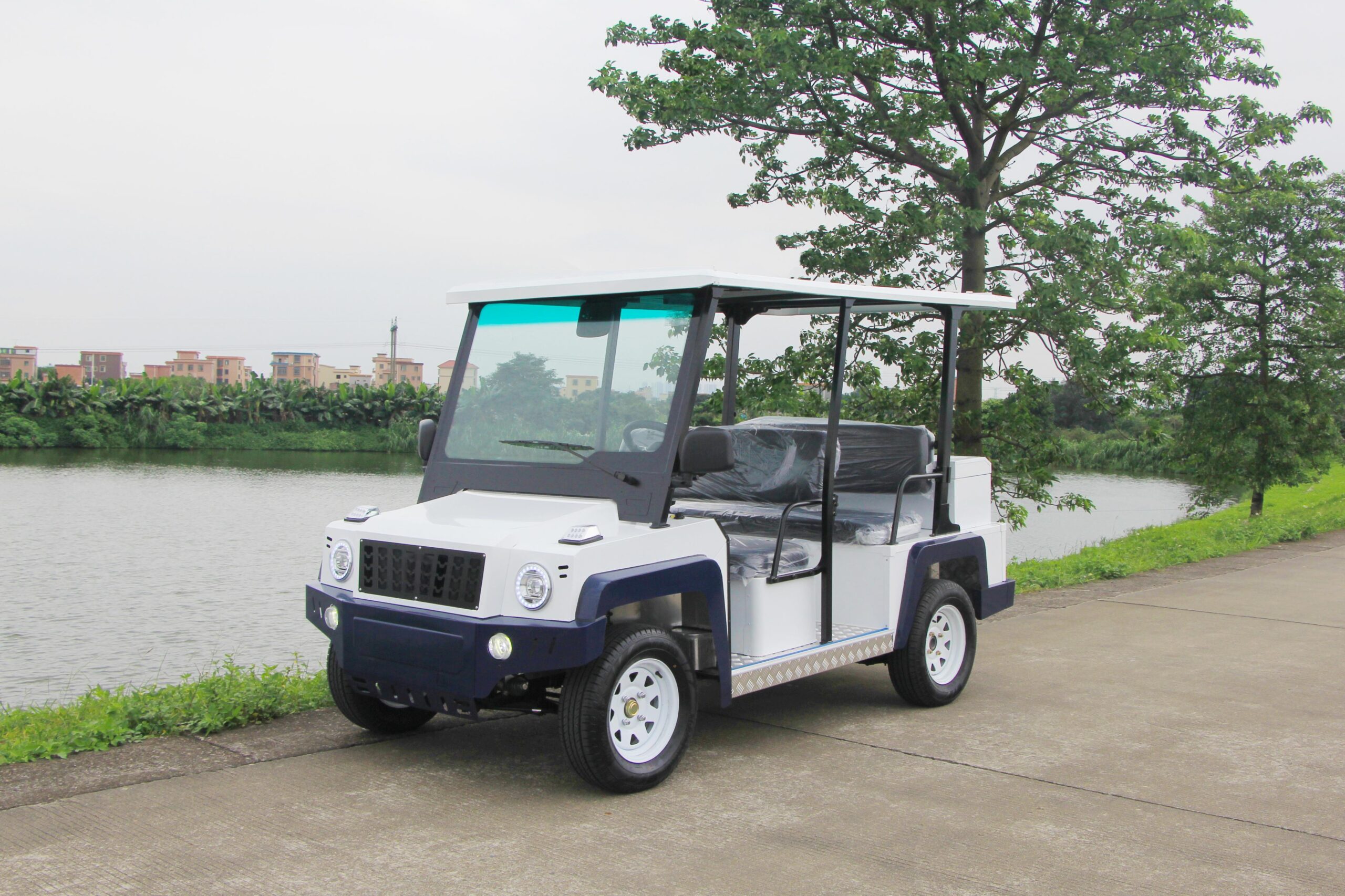

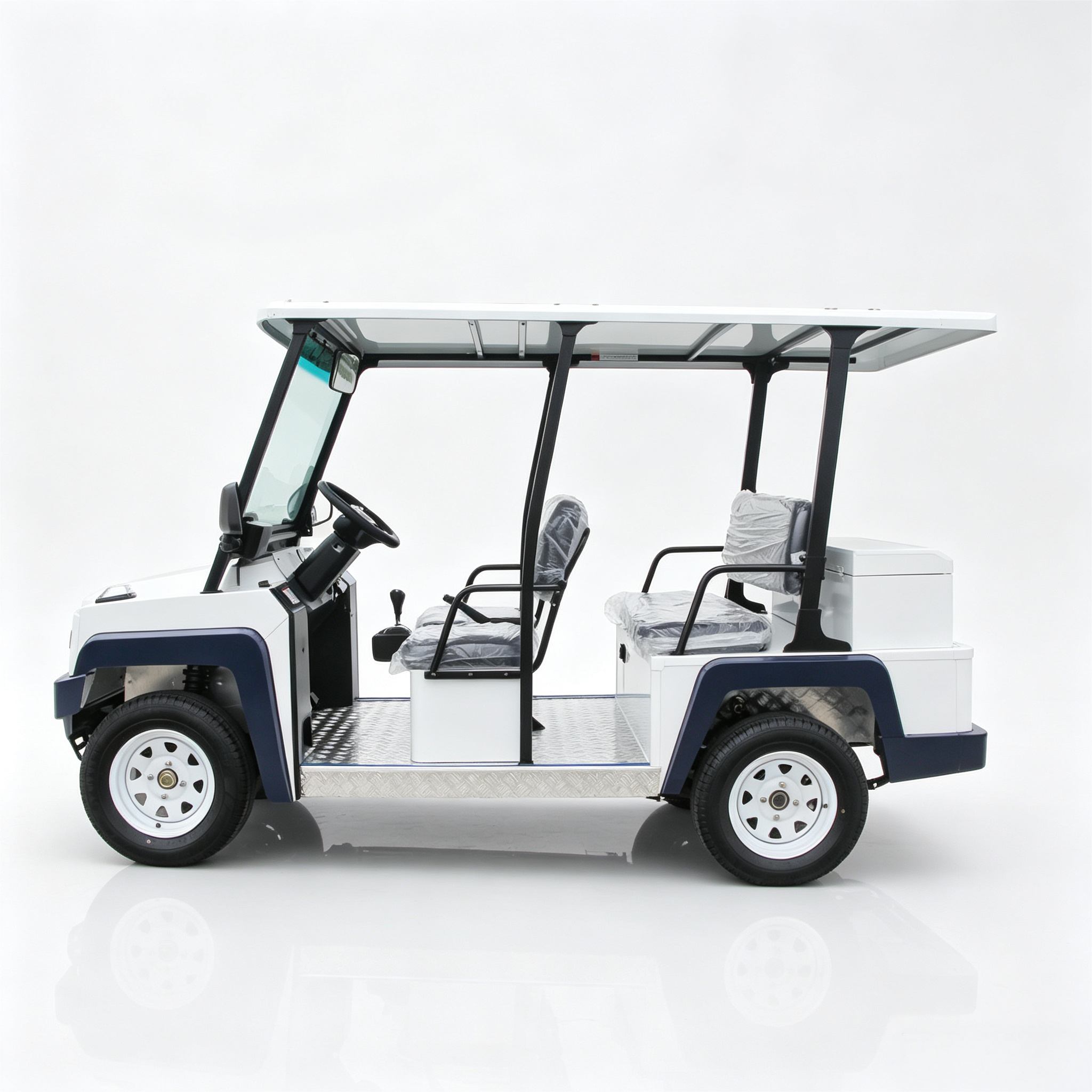

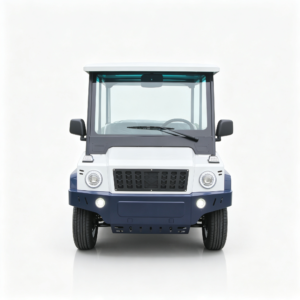

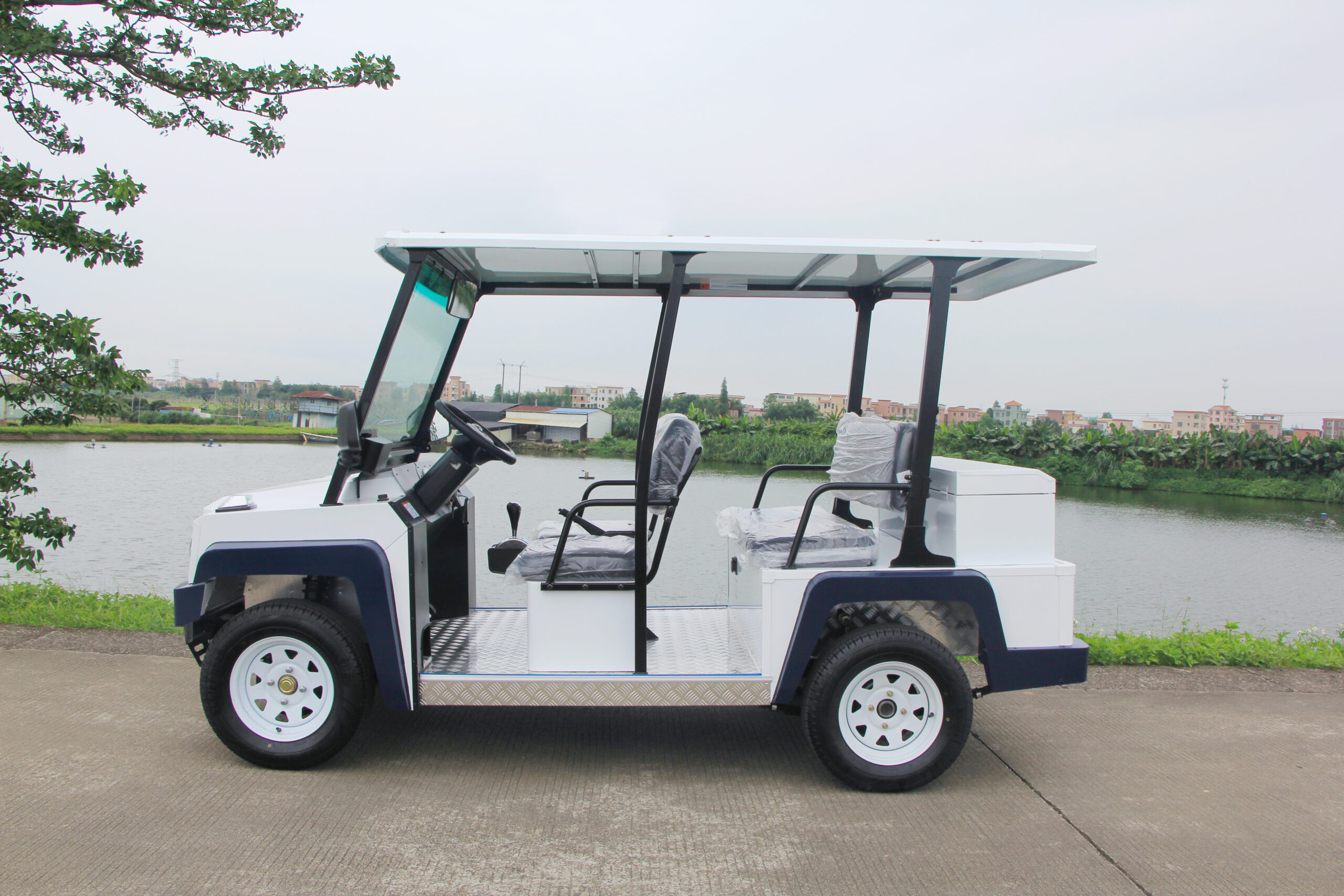

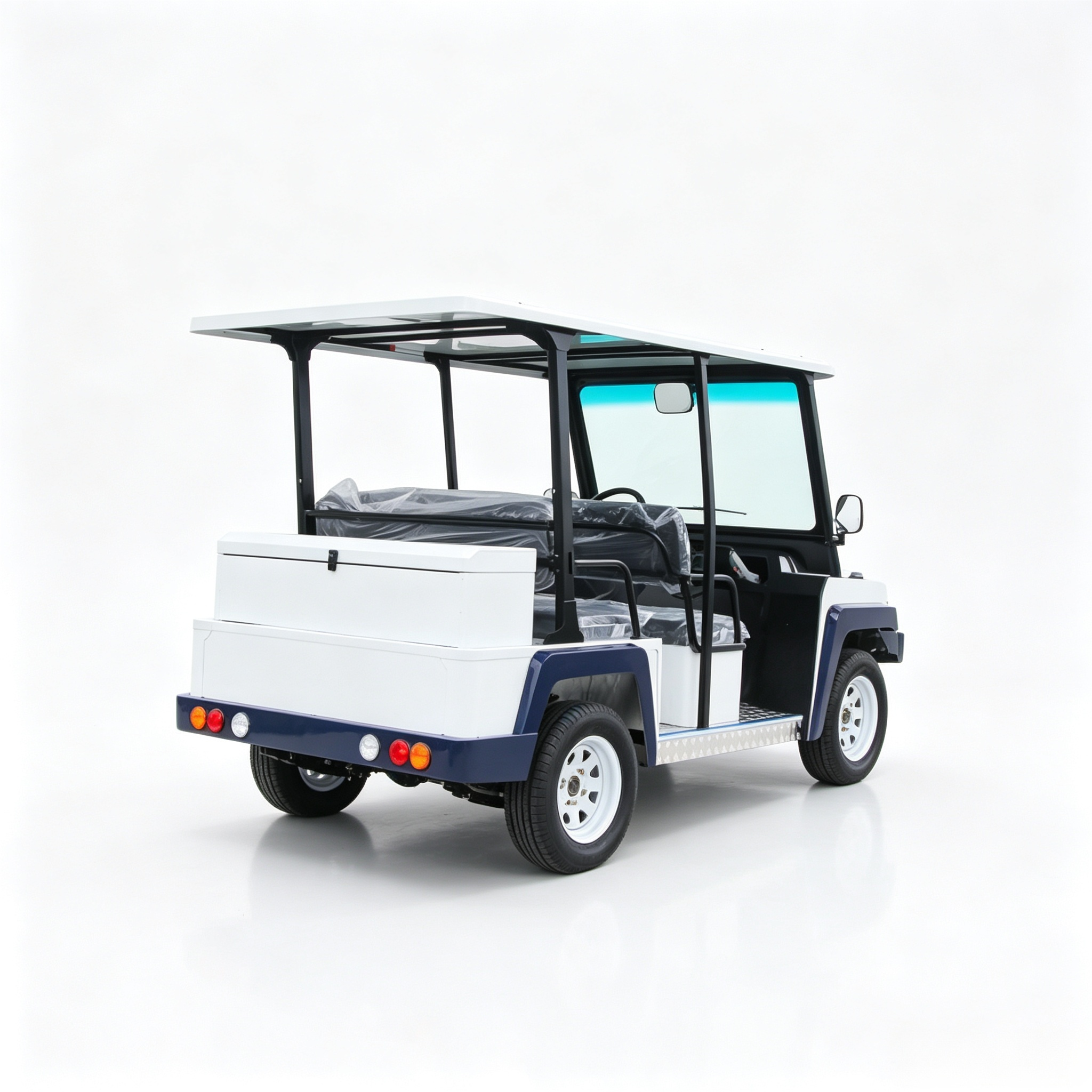

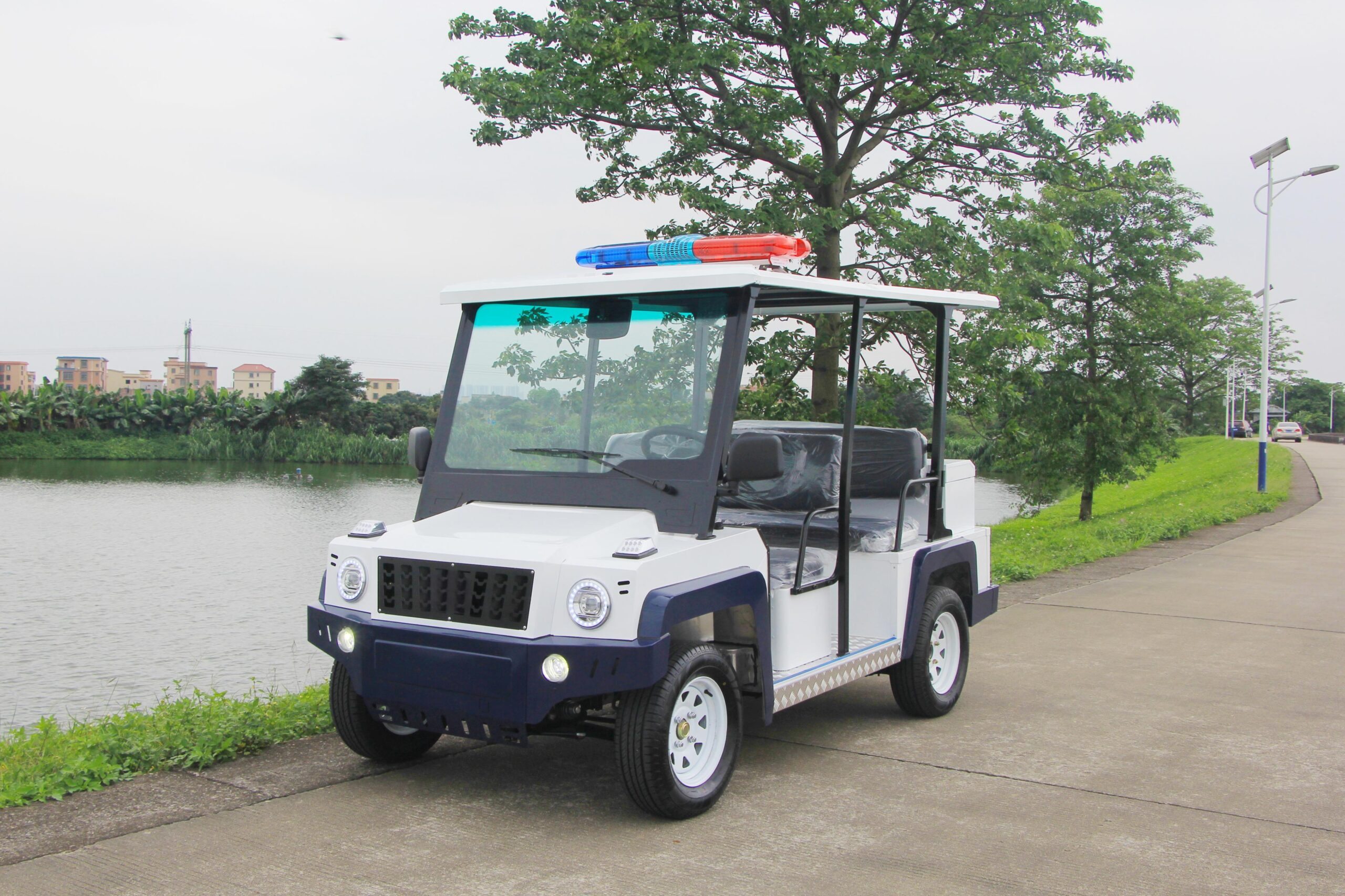

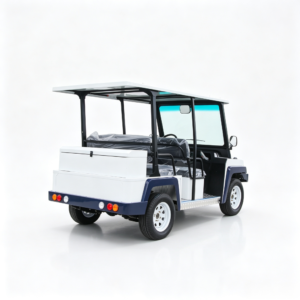

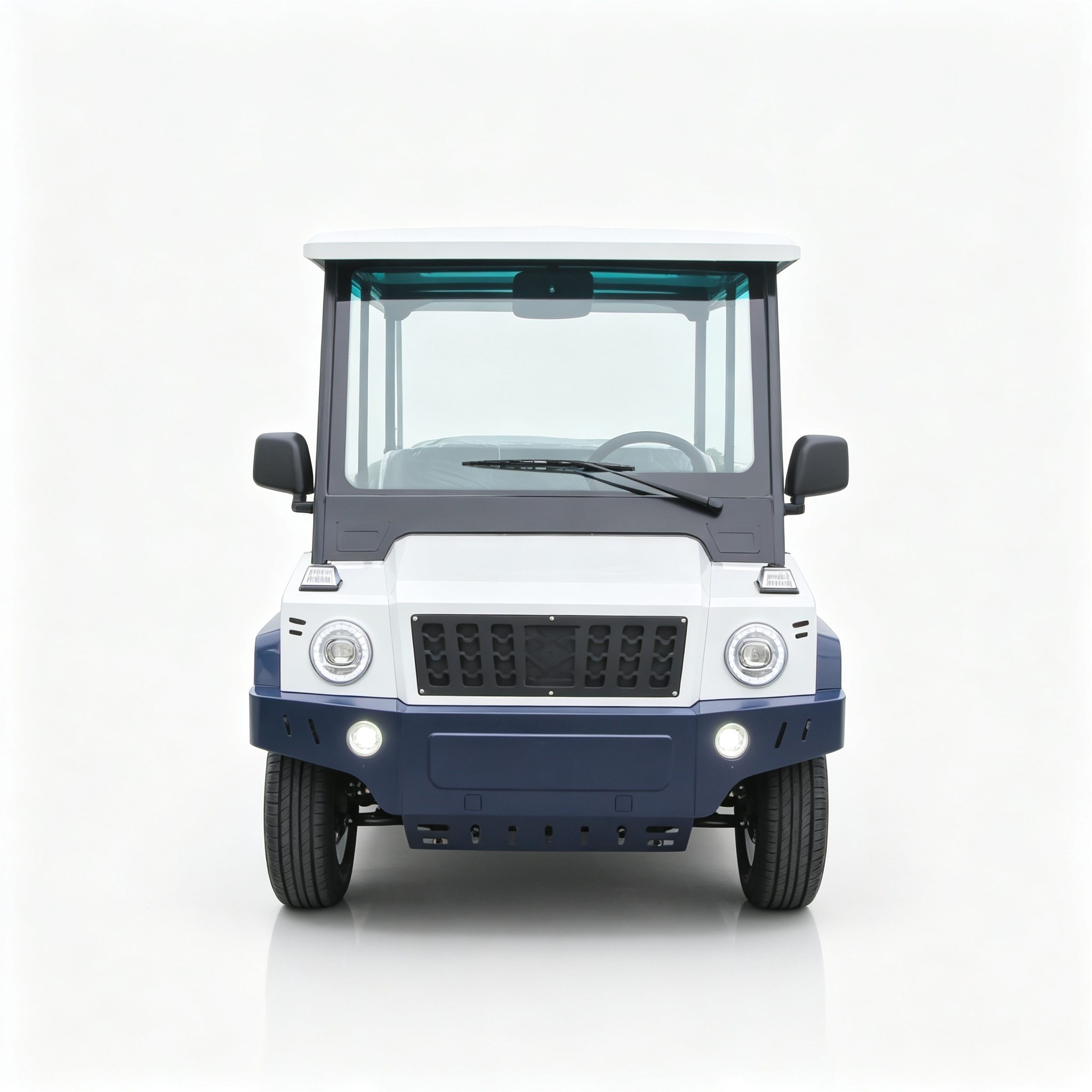

GS4-P Electric Patrol Vehicle Double Cab Security Utility Vehicle

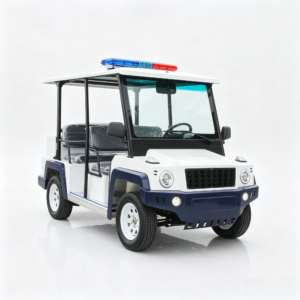

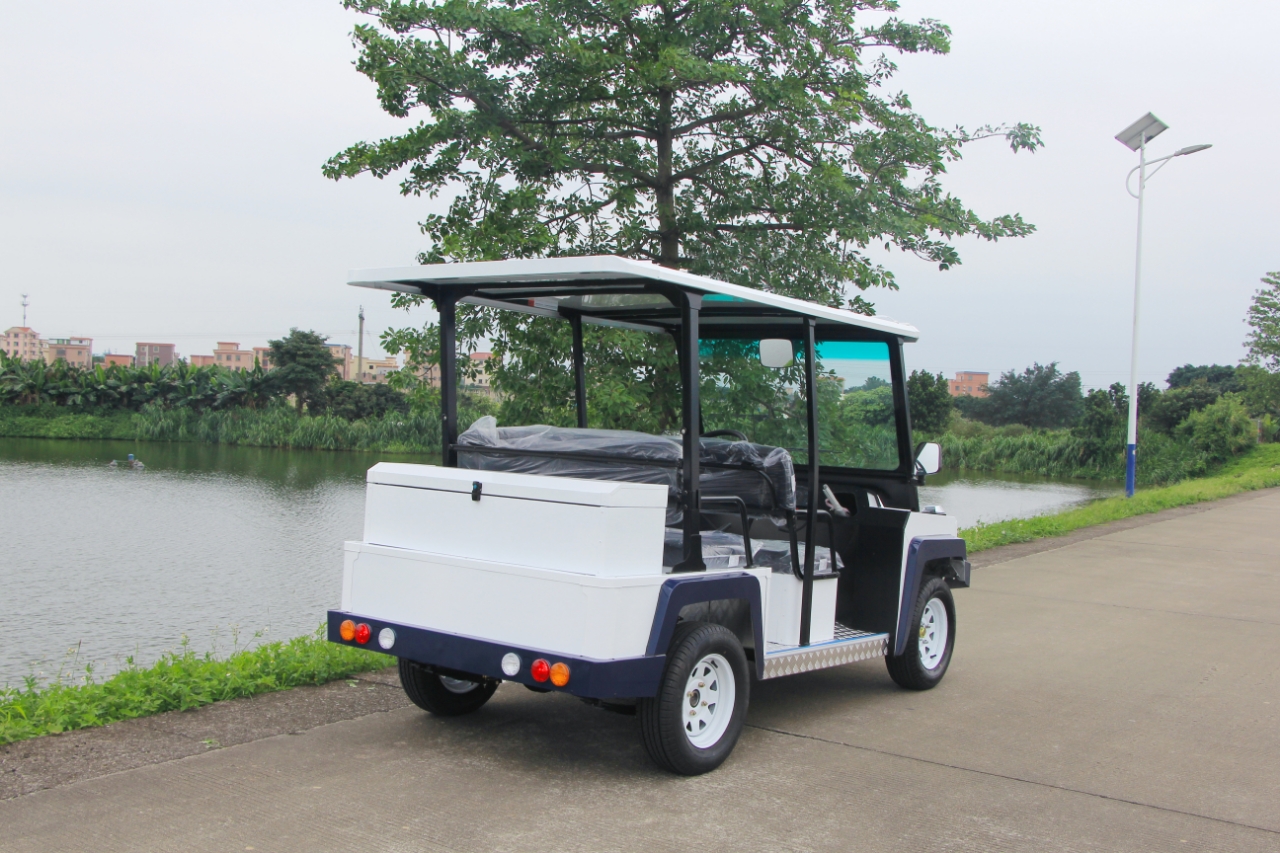

The GS4-P Electric Patrol Vehicle combines a spacious 5-seat double cab with a secure rear cargo compartment, allowing security teams to transport both personnel and essential equipment in one vehicle. Equipped with LED headlights, electric power steering, front disc brakes, optional loudspeaker, and warning lights, it delivers safe, comfortable, and efficient patrol performance. Ideal for residential communities, industrial parks, resorts, campuses, airports, hospitals, and large commercial properties, the GS4-P helps security and maintenance teams respond quickly while carrying patrol gear, emergency supplies, or maintenance tools with ease.

Share:

Vehicle Configuration

Passenger capacity5seats
Max.Speed30km/h
Battery spec8*6V/170Ah Lead-acid Batteries
Endurance Mileage80-100km
Climbing Ability(loaded)20%
Min.Clearance170mm
Curb Weight740kg
L×W×H3250x1520x1850mm
Braking Distance≤5.0m

Min.Turning Radius

≤4.5m

MotorAC5KW 48V
Controller48V 450A controller
Body|Chassis

High-strength composite material body

High-strength steel frame-type longitudinal beam chassis

TiresVacuum meridian microcar tire, specification: 185/70-R13
Brake system

Front ventilated discs and rear drum hydraulic dual circuit brakes + handbrake parking with

vacuum-assisted braking system

SteeringDual push rack and pinion steering
SeatsPU car special seat, ergonomic

Windshield

Automotive-grade laminated glass

Weight 740 kg
Dimensions 325 × 152 × 185 cm
