How to Choose a Golf Cart Motor and Controller: Complete Guide to DC, AC, PMSM, OEM and Aftermarket Upgrades

Choosing a golf cart motor and controller is not simply a matter of finding a higher-power motor or a controller with a larger amp rating.

The motor, controller, battery, rear axle, wiring harness, throttle, tires and vehicle weight all work together as one drivetrain system.

This becomes especially important when replacing the original motor and controller, upgrading a standard golf cart into a lifted or high-speed vehicle, or selecting a complete drivetrain for a new golf cart or low-speed electric vehicle.

Several manufacturers and brands are commonly encountered in the golf cart and electric vehicle market. For motors, AMD (Advanced Motors & Drives) and KDS are examples of established motor suppliers used in electric vehicle applications. For controllers, Curtis, Navitas, and Alltrax represent different approaches ranging from OEM-style industrial controllers to aftermarket performance systems.

The key question is therefore not:

“Which motor brand is the best?”

It is:

“Which motor and controller system is correctly matched to my vehicle, application and mechanical drivetrain?”

1. Motor Brands vs. Controller Brands: What Is the Difference?

Before comparing products, it is important to distinguish between motor manufacturers and controller manufacturers.

Golf Cart Motor Brands

Two motor names you may encounter in golf cart and electric vehicle applications are:

AMD — Advanced Motors & Drives

AMD motors are used in various electric vehicle and golf cart applications, including replacement and performance-oriented applications.

When selecting an AMD motor, the brand name alone is not enough. You still need to confirm:

• Motor type
• Voltage
• Series or separately excited configuration
• Rated power
• RPM
• Torque
• Shaft and spline configuration
• Mounting dimensions
• Rotation
• Vehicle compatibility

The motor must physically and electrically match the vehicle drivetrain.

Nidec KDS Kinetek DeSheng Motor Co., LTD. (KDS)

KDS motors are also found in electric vehicle and golf cart applications.

KDS is relevant when discussing the transition from traditional DC golf cart systems toward modern AC drive systems.

Again, the important point is not simply choosing “KDS” as a brand. The exact motor specifications and compatibility with the controller, rear axle and vehicle architecture must be confirmed.

2. Golf Cart Controller Brands

The controller is the electronic device that determines how battery power is delivered to the motor.

Three brands frequently encountered in golf cart applications and the aftermarket are:

Curtis

Curtis has a long history in industrial electric vehicle and traction control systems.

Its product range includes controllers for:

• Series DC motors
• SepEx motors
• AC induction motors
• PMAC motors
• Other electric traction applications

For example, Curtis 1204M/1205M controllers are designed for DC series motors, while the Curtis 1266A and 1268 are SepEx controllers.

Navitas

Navitas is particularly visible in the North American aftermarket golf cart market.

Its controllers are often considered when owners want to increase:

• Top speed
• Acceleration
• Torque
• Regenerative braking performance
• Adjustability
• Diagnostic capability

Navitas is especially relevant to modified golf carts with larger tires, lifted suspension and higher-speed targets.

Alltrax

Alltrax is another important aftermarket controller manufacturer, particularly for performance upgrades involving DC golf carts.

Alltrax offers controllers and vehicle-specific wiring/interface solutions for platforms such as Club Car, E-Z-GO and Yamaha. Its documentation also shows why controller selection cannot be separated from the original vehicle wiring and throttle architecture.

3. The Evolution of Golf Cart Motor and Controller Technology

Golf cart drivetrains have evolved significantly over the years.

A simplified development path looks like this:

Series DC → SepEx DC → AC → PMSM / PMAC

Each technology has its own advantages and limitations.

3.1 Series DC Motors

Older and traditional golf carts commonly used series-wound DC motors.

A series motor provides strong low-speed torque and has a relatively simple architecture.

For many years, this was a practical solution for:

• Golf carts
• Utility vehicles
• Personnel carriers
• Industrial electric vehicles

Curtis 1204M and 1205M are examples of programmable controllers designed specifically for DC series motors. Curtis lists these controllers for 24V, 36V, 48V, 60V and 72V applications, with models rated up to 500A.

4. SepEx Golf Cart Motors and Curtis 1266A / 1268

Separately excited motors, commonly called SepEx motors, provide independent control of the armature and field.

This allows more sophisticated control of motor speed, torque and regenerative braking than many traditional series systems.

Two well-known Curtis examples are:

Curtis 1266A

The Curtis 1266A is a programmable SepEx controller for 36V and 48V systems, with a maximum current rating of 350A according to Curtis.

Curtis 1268

The Curtis 1268 is also a SepEx controller, available for 36V and 48V systems with a maximum current rating of 500A.

Curtis specifically identifies heavy-duty golf carts, personnel carriers and utility vehicles among its typical applications. It also provides programmable speed and torque control, regenerative braking and closed-loop speed control through a speed sensor input.

This is why simply asking for “a 500A controller” is not enough.

A 500A controller for a SepEx motor is not automatically suitable for a series motor, AC motor or PMSM.

5. Club Car, E-Z-GO and Yamaha: Why Model and Year Matter

One of the most common mistakes when replacing a golf cart motor or controller is identifying the vehicle only by its brand.

For example:

“I have an E-Z-GO. Which motor should I buy?”

That information is not enough.

You normally need:

• Brand
• Model
• Model year
• Voltage
• Original motor type
• Original controller
• Battery configuration
• Throttle type
• Rear axle/differential
• Tire size

Club Car, E-Z-GO and Yamaha have all produced different generations and drivetrain configurations over time.

E-Z-GO, for example, introduced AC drive technology in platforms such as the RXV, while earlier platforms used different electrical architectures.

Therefore, a replacement motor or controller should always be selected based on:

Brand + Model + Year + Drive System

—not brand alone.

6. AC Golf Cart Motors: The Next Major Step

AC drive systems brought another major development to golf carts.

Compared with traditional DC systems, modern AC systems can provide:

• Better speed control
• More sophisticated regenerative braking
• Improved efficiency
• Better high-speed performance
• Better control on slopes
• Reduced mechanical switching components
• More advanced diagnostics and programming

Curtis offers several AC traction controllers, including the 1234, 1236 and 1238 families.

Depending on the specific model and version, these controllers support different voltage and current ranges and are designed for AC induction traction applications.

For example, Curtis currently lists the 1234E, 1236E and 1238E families with progressively higher current capabilities. Exact specifications depend on the controller suffix and configuration, so the complete model number should always be checked before selecting a replacement.

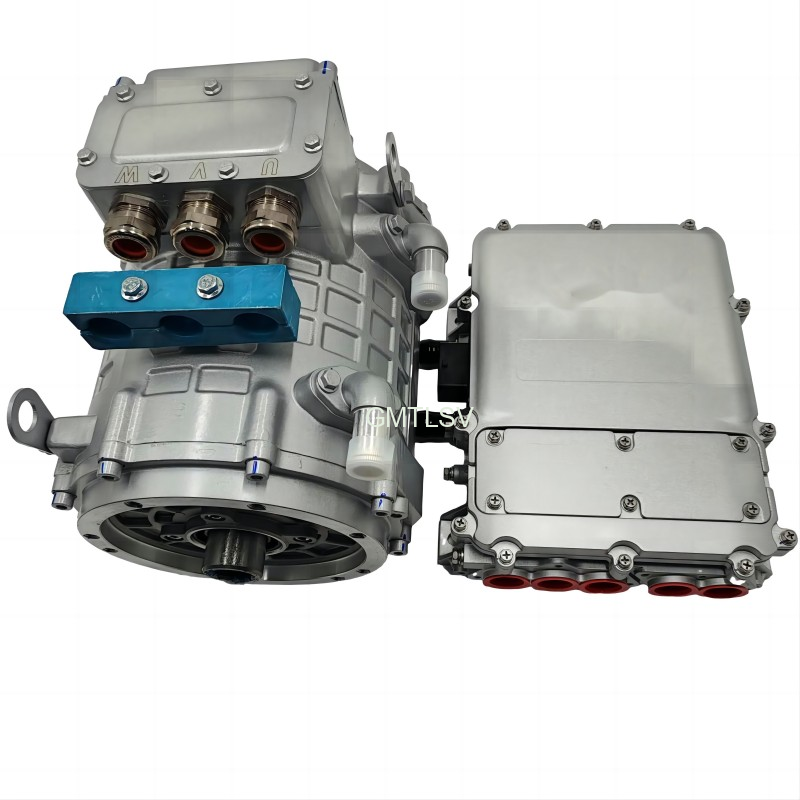

7. PMSM: A New Generation of Golf Cart and LSV Drivetrains

Permanent Magnet Synchronous Motors, or PMSM, represent another step in electric drivetrain development.

PMSM systems can offer:

• High torque density
• High power density
• High efficiency
• Compact motor dimensions
• Strong low-speed torque
• Good regenerative braking capability
• Excellent controllability

For a basic 2- or 4-seat golf cart, the additional complexity of PMSM may not always be necessary.However, for larger electric vehicles, the advantages become more significant.

PMSM systems are particularly attractive for applications that require higher power density, torque density and efficiency, including:

• 8-seat golf carts
• 11-seat shuttle buses
• 14-seat passenger vehicles
• 23-seat electric shuttles
• Utility vehicles
• UTVs
• Higher-performance LSVs
• 4WD electric vehicles(Dual-motor 4WD EVs)

This is one reason why modern low-speed electric vehicle manufacturers are increasingly moving beyond traditional golf cart drivetrain architectures.

8. What Does a Golf Cart Controller Actually Do?

A controller is much more than a simple “electronic switch.”

It manages how electrical energy is converted into motor torque and vehicle motion.

Depending on the system, the controller may manage:

Motor current

Current has a major influence on motor torque.

Vehicle speed

The controller can regulate motor speed and vehicle acceleration.

Acceleration response

The same motor can feel completely different depending on controller programming.

Regenerative braking

During deceleration, the motor can operate as a generator and return energy to the battery.

Downhill speed control

Advanced systems can use regenerative braking to help control vehicle speed when traveling downhill.

Anti-roll / hill-hold functions

Some systems can help prevent unintended rollback on slopes.

Thermal protection

The controller can monitor its own temperature and reduce output or shut down under excessive thermal conditions.

Overcurrent and short-circuit protection

The controller monitors electrical conditions to protect the motor, battery and power electronics.

Programmability

Many modern controllers allow parameters such as acceleration, current limits, regenerative braking and speed limits to be configured.

This means that two vehicles using the same motor can have very different driving characteristics depending on the controller and its programming.

9. How to Understand a Controller’s Amp Rating

One of the most common questions is:

“Is a 500A controller better than a 350A controller?”

Not necessarily.

The amp rating must be understood together with:

• Motor capability
• Battery voltage
• Battery discharge capability
• Controller voltage rating
• Continuous current
• Peak current
• Duration of peak current
• Cable size
• Fuse rating
• Solenoid/contactors
• Cooling conditions
• Vehicle weight
• Tire size
• Rear axle ratio

For example, Alltrax specifically notes that upgrading to a higher-current controller may also require appropriately sized battery and motor cables. Its technical documentation explains that undersized wiring can become a current bottleneck and generate excessive heat.

So:

Higher controller current ≠ automatically better performance.

The entire electrical system must be capable of supporting it.

10. If You Are Modifying an Existing Golf Cart: How to Choose the Motor + Controller

This is where many golf cart modifications become more complicated than expected.

If you are replacing the original motor and controller, do not start by asking:

“Which motor has more horsepower?”

Start by identifying the complete original drivetrain.

Step 1: Identify the Golf Cart

Record:

• Brand
• Model
• Model year
• Vehicle voltage
• Original motor
• Original controller
• Battery type
• Throttle type

Step 2: Check Motor-to-Rear-Axle Compatibility

This is an extremely important point that is often overlooked.

The motor must mechanically match the rear axle/differential.

Check:

• Motor mounting pattern
• Motor flange dimensions
• Shaft diameter
• Spline count
• Shaft length
• Rotation direction
• Rear axle input configuration
• Gear ratio
• Differential type

A motor that has the correct voltage and power rating may still be impossible to install if its shaft or mounting configuration does not match the rear axle.

In other words:

Motor selection is also a mechanical drivetrain decision.

The motor must not only match the controller; it must also match the rear axle.

Step 3: Check the Controller Wiring

Do not assume that the new controller has the same wiring definition as the original controller.

Different manufacturers and different vehicle generations may use different:

• Connector types
• Pin assignments
• Throttle signals
• Forward/reverse signals
• Key-switch signals
• Brake signals
• Speed sensor signals
• Solenoid/control signals
• CAN communication
• Fault/diagnostic signals

This is why aftermarket controller manufacturers sometimes provide vehicle-specific interface adapters.

For example, Alltrax offers interface wiring adapters for different E-Z-GO, Club Car and Yamaha platforms because the vehicle harness pinout and controller connections are not necessarily identical.

Therefore, before purchasing a controller, ask:

Can the new controller connect directly to the original vehicle harness, or will an adapter or rewiring be required?

Step 4: Check the Throttle / Accelerator Pedal

The accelerator pedal is another component that is frequently overlooked.

Different golf carts may use:

• Resistive throttles
• Potentiometer-type throttles
• Inductive throttles
• 0–5V signals
• Hall-effect sensors
• Vehicle-specific throttle systems

A new controller may not recognize the original accelerator pedal without the correct programming, adapter or replacement throttle.

Alltrax documentation, for example, identifies multiple throttle input configurations, including resistive, voltage and vehicle-specific throttle systems.

Therefore, a motor + controller replacement may sometimes require:

Motor + Controller + Wiring Adapter + Throttle

rather than simply:

Motor + Controller

Step 5: Check the Battery and Main Cables

A more powerful motor and controller may demand significantly more current.

You should check:

• Battery voltage
• Battery capacity
• Maximum continuous discharge current
• Peak discharge current
• BMS current limit for lithium batteries
• Main positive/negative cables
• Motor cables
• Fuse
• Solenoid/contactors
• Charging system

The battery must be able to supply the current demanded by the controller.

Step 6: Check Tire Size and Rear Axle Ratio

Changing the tire size can significantly change drivetrain requirements.

For example:

Original small tires → large all-terrain tires

can result in:

• Higher rolling resistance
• Greater effective gearing
• Higher motor torque requirement
• Higher current demand
• Lower acceleration if the drivetrain is not upgraded
• Increased braking requirements

This is one reason a lifted golf cart with large tires may require a different motor/controller combination than the original standard vehicle.

11. If You Are Buying a New Golf Cart: Choose the System Differently

The selection process for a new vehicle should be different from an aftermarket replacement.

If you are buying or developing a new golf cart, shuttle vehicle, utility vehicle or LSV, you should not begin with:

“Which motor brand should we use?”

Instead, begin with the vehicle application.

Step 1: Define the Application

For example:

• Golf course
• Hotel or resort
• Residential community
• Campus
• Airport
• Industrial facility
• Security patrol
• Utility transportation
• Passenger shuttle
• LSV
• UTV

Step 2: Define the Vehicle Requirements

Determine:

• Curb weight
• Maximum payload
• Passenger capacity
• Maximum speed
• Continuous operating speed
• Maximum grade
• Required acceleration
• Tire diameter
• Rear axle ratio
• Operating hours per day
• Duty cycle
• Ambient temperature
• Terrain

A 4-seat golf cart used on a flat golf course does not require the same drivetrain as an 11-seat shuttle carrying passengers on a 20% grade.

12. Motor Selection for a New Vehicle

Once the vehicle requirements are defined, select the motor according to:

• Motor technology
• Rated voltage
• Rated power
• Peak power
• Rated torque
• Peak torque
• Rated RPM
• Maximum RPM
• Efficiency
• Cooling method
• Mounting dimensions
• Rear axle compatibility

The key calculation is not simply horsepower.

The engineering question is:

How much wheel torque is required at the tire, and how much motor torque is required after considering the gear ratio?

A basic relationship is:

Wheel Torque = Motor Torque × Gear Ratio × Drivetrain Efficiency

Therefore, the rear axle ratio and tire diameter must be considered together with motor torque.

13. Controller Selection for a New Vehicle

After selecting the motor, the controller should be selected as part of the same drivetrain system.

Consider:

• Battery voltage
• Motor type
• Motor rated power
• Motor peak power
• Required phase/battery current
• Continuous current
• Peak current
• Cooling
• Regenerative braking
• Speed control
• Hill-hold or anti-roll functions
• CAN communication
• Diagnostics
• Programming capability
• Vehicle control architecture

For a commercial fleet, there are additional considerations.

A controller should ideally support:

• Reliable service
• Diagnostic tools
• Spare parts availability
• Technician training
• Software/programming support
• Warranty support
• Consistent configuration across the fleet

For a fleet operator, the easiest system to maintain is often more valuable than the system with the highest theoretical peak power.

14. Aftermarket Performance Controllers: Curtis vs. Navitas vs. Alltrax

The aftermarket market has a different philosophy from OEM vehicle development.

OEM systems are generally designed around:

Reliability + cost + safety + consistency + serviceability

Performance aftermarket systems often focus more heavily on:

Speed + torque + adjustability + customization

Curtis

Curtis is particularly strong in industrial and OEM-style traction control applications.

Its controller portfolio covers multiple motor technologies and voltage classes.

Navitas

Navitas is especially relevant to performance-oriented golf cart upgrades in the North American market.

It is often considered when the owner wants:

• More speed
• More acceleration
• More torque
• Adjustable driving characteristics
• Regenerative braking
• Programmable parameters
• Diagnostic capability

Alltrax

Alltrax is strongly associated with aftermarket DC performance upgrades.

Its own documentation describes SR and XCT controllers for DC golf carts and also provides AC conversion options for platforms such as Club Car, E-Z-GO and Yamaha.

15. Why Navitas Is Popular for Lifted Golf Cart Upgrades

One of the most common North American aftermarket scenarios is:

Standard Golf Cart → Lift Kit → Larger Tires → Higher Speed

A typical modification may involve:

• Lifted suspension
• Larger wheels
• Larger all-terrain tires
• Heavier wheels
• Increased vehicle weight
• Higher ground clearance
• Higher target speed

For example, an owner may want to increase the vehicle from a traditional golf-cart speed toward 20–25+ MPH.

But increasing speed is not simply a controller adjustment.

Larger tires change the effective gearing.

The lifted suspension and larger tires can increase rolling resistance and vehicle weight.

The result is greater demand on:

• Motor torque
• Controller current
• Battery discharge capability
• Motor cooling
• Wiring
• Braking
• Suspension
• Steering
• Tires

This is why a performance controller such as Navitas is often considered as part of a complete performance upgrade rather than as an isolated replacement component.

The controller can become the “brain” of the modified drivetrain, allowing the installer to tune acceleration, speed, regenerative braking and other parameters.

However, the exact controller must still be matched to the specific golf cart model, motor, battery and throttle system.

16. A Real-World Example: How Golf Cart Drivetrains Have Evolved

The evolution from DC to AC and then toward PMSM is not simply a theoretical technology roadmap.

It can also be seen in the development of commercial low-speed electric vehicles.

In our own vehicle engineering experience, earlier golf cart configurations commonly used combinations such as:

DC Motor + Curtis Controller + Trojan Lead-Acid Batteries + Delta-Q Charger

As AC technology became more widely adopted, the drivetrain evolved toward combinations such as:

KDS AC Motor + Curtis AC Controller

or:

KDS AC Motor + AC Controller from another supplier

Today, for larger passenger vehicles and utility platforms, higher-power PMSM systems are increasingly attractive.

Examples include:

• 72V 7.5kW PMSM systems
• 96V 15kW PMSM systems
• Larger 8-seat vehicles
• 11-seat shuttle buses
• 14-seat passenger vehicles
• 23-seat electric shuttles
• LSVs
• UTVs
• Utility vehicles

The important lesson is that motor technology should evolve with the vehicle application.

A drivetrain that is appropriate for a 4-seat golf cart is not necessarily appropriate for a 14-seat shuttle.

Explore Our LSV Electric Vehicles

The right motor and controller depend on the vehicle application, load, speed, terrain and duty cycle. If you are looking for a complete low-speed electric vehicle rather than individual drivetrain components, explore our range of LSVs, passenger shuttles, utility vehicles and other electric vehicles.

Explore Our LSV Electric Vehicles →

17. DC vs. SepEx vs. AC vs. PMSM: Which Is Right for You?

There is no universal “best” technology.

The correct choice depends on:

Vehicle + Load + Speed + Grade + Duty Cycle + Battery + Rear Axle + Controller + Budget

18. The Most Important Motor + Controller Matching Checklist

Before ordering a motor and controller, check the following.

Vehicle

• Brand

• Model

• Model year

• Vehicle voltage

• Vehicle weight

• Payload

• Passenger capacity

Motor

• Motor type

• Rated voltage

• Rated power

• Peak power

• Rated torque

• Peak torque

• Rated RPM

• Maximum RPM

• Cooling

• Mounting dimensions

• Shaft diameter

• Spline count

• Rotation direction

Rear Axle

• Differential model

• Motor mounting interface

• Input shaft/spline

• Gear ratio

• Tire diameter

• Brake configuration

Controller

• Motor type compatibility

• Battery voltage

• Continuous current

• Peak current

• Regenerative braking

• Speed control

• Thermal protection

• Overcurrent protection

• Programming

• CAN communication if required

Wiring and Controls

• Main power cables

• Motor cables

• Fuse

• Contactor/solenoid

• Controller connector

• Wiring harness pinout

• Throttle type

• Brake signal

• Forward/reverse signal

• Key switch signal

• Speed sensor

• CAN communication

Battery

• Nominal voltage

• Capacity

• Continuous discharge current

• Peak discharge current

• BMS current limit

• Battery connector

• Charger compatibility



19. The Biggest Mistakes When Choosing a Golf Cart Motor and Controller

Mistake 1: Choosing the motor only by horsepower

A 10kW motor is not automatically suitable for every 10kW application.

RPM, torque, voltage, cooling, gearing and mechanical compatibility all matter.

Mistake 2: Choosing the controller only by amp rating

A 500A controller is not automatically better than a 350A controller.

The controller must match the motor technology, voltage, battery and application.

Mistake 3: Ignoring the rear axle

The motor must physically and mechanically match the rear axle.

Mistake 4: Assuming the original wiring harness will plug in

It may not.

Connector type, pinout, throttle signal and control logic can be different.

Mistake 5: Ignoring the accelerator pedal

The new controller may require a different throttle signal or a different pedal/throttle assembly.

Mistake 6: Increasing tire size without reconsidering the drivetrain

Large tires can increase torque demand and change the effective gearing.

Mistake 7: Upgrading speed without upgrading braking and chassis systems

A faster golf cart is no longer operating under the same dynamic conditions as the original vehicle.

Aftermarket manufacturers themselves warn that performance controllers combined with lift kits and larger tires can significantly change vehicle handling and stability.

20. Final Recommendation: Choose the System, Not Just the Components

The most important principle is simple:

Do not choose a golf cart motor and controller separately. Choose the complete drivetrain system.

For an existing golf cart, start with:

Vehicle → Motor → Rear Axle → Controller → Wiring Harness → Throttle → Battery → Tires

For a new vehicle, start with:

Application → Vehicle Weight → Payload → Speed → Grade → Duty Cycle → Motor → Controller → Battery → Rear Axle

The right drivetrain is therefore not necessarily the one with the biggest motor or highest controller current.

It is the one where all components work together correctly.

That is the difference between simply replacing a golf cart motor and properly engineering an electric drivetrain.

Frequently Asked Questions

Can I use any controller with any golf cart motor?

No.

The controller must be compatible with the motor technology, voltage, current requirements, throttle system and vehicle wiring.

Can I replace a Curtis controller with a Navitas or Alltrax controller?

Sometimes, but compatibility must be checked carefully.

The exact golf cart model, year, motor type, throttle, wiring harness and controller configuration all matter.

Some aftermarket controllers use vehicle-specific adapters or wiring harnesses rather than directly reusing the original connections.

Does a bigger controller make a golf cart faster?

Not necessarily.

Vehicle speed depends on motor characteristics, controller programming, battery voltage, gearing, tire size and other drivetrain factors.

Do I need a new throttle when changing the controller?

Not always, but it is possible.

The new controller must recognize the original throttle signal. If the signal type or connector is different, an adapter, reprogramming or a replacement throttle may be required.

Do I need to change the rear axle when changing the motor?

Not always.

But the motor must physically match the rear axle and its input shaft/spline, mounting interface, rotation and gearing.

Why are PMSM motors becoming more common in larger electric vehicles?

PMSM motors offer high efficiency and high power density, making them attractive for applications where vehicle weight, passenger capacity and continuous power requirements increase.

Is AC better than DC for every golf cart?

No.

For a simple or older golf cart, a properly matched DC system can still be an effective and economical solution.

For modern vehicles requiring smoother control, regenerative braking and higher performance, AC or PMSM may provide significant advantages.

Conclusion

Choosing a golf cart motor and controller is ultimately a system-engineering decision.

Whether you are replacing an original motor, upgrading a lifted golf cart, building a high-speed aftermarket vehicle, or developing a new fleet of electric vehicles, the correct solution must consider the complete drivetrain.

Motor + Controller + Battery + Rear Axle + Wiring + Throttle + Tires + Vehicle Application

When these components are properly matched, the result is not only better performance, but also better reliability, efficiency, safety and serviceability.

That is the real foundation of a well-designed electric drivetrain.
